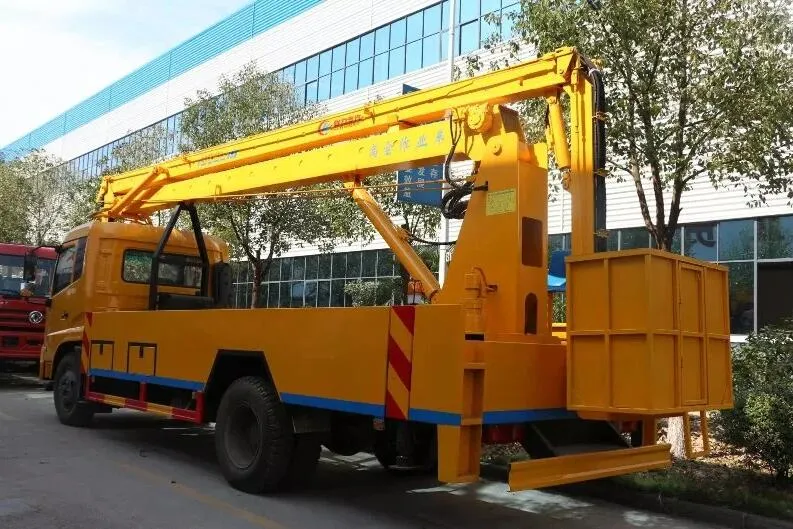

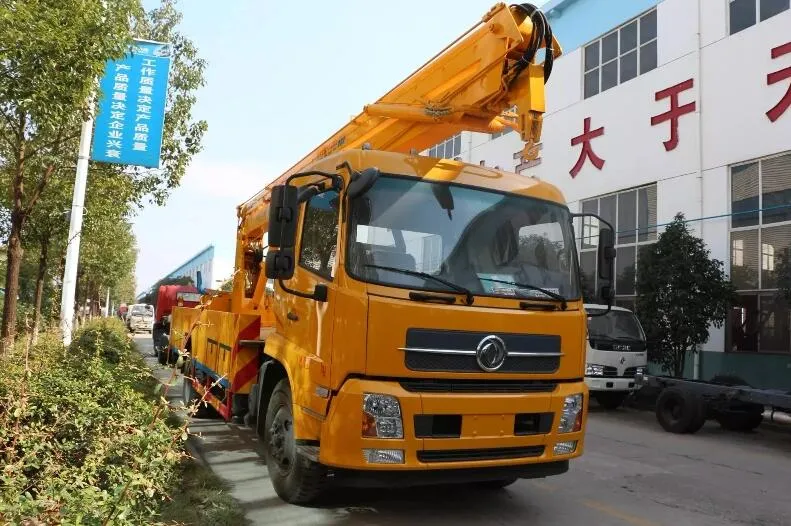

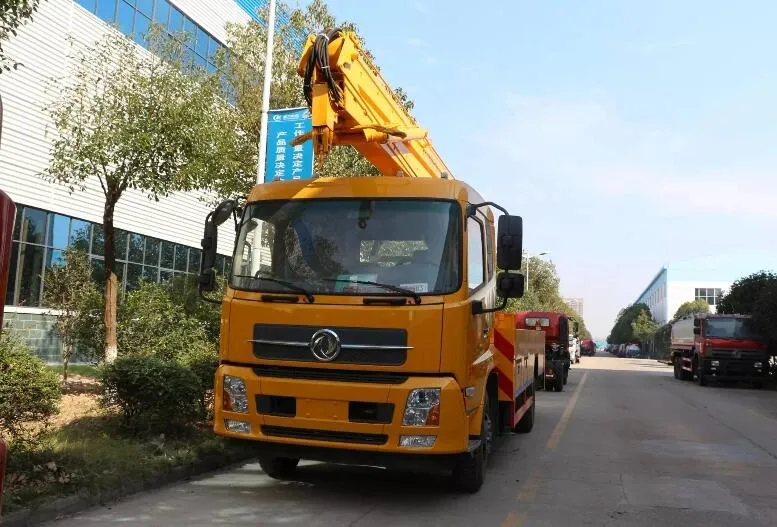

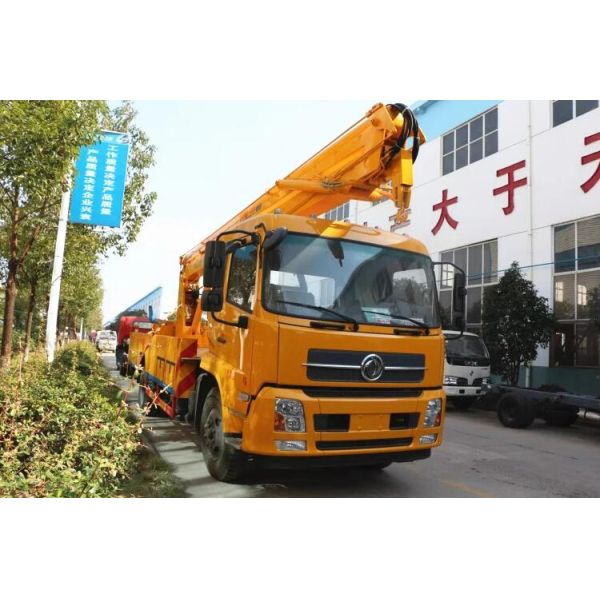

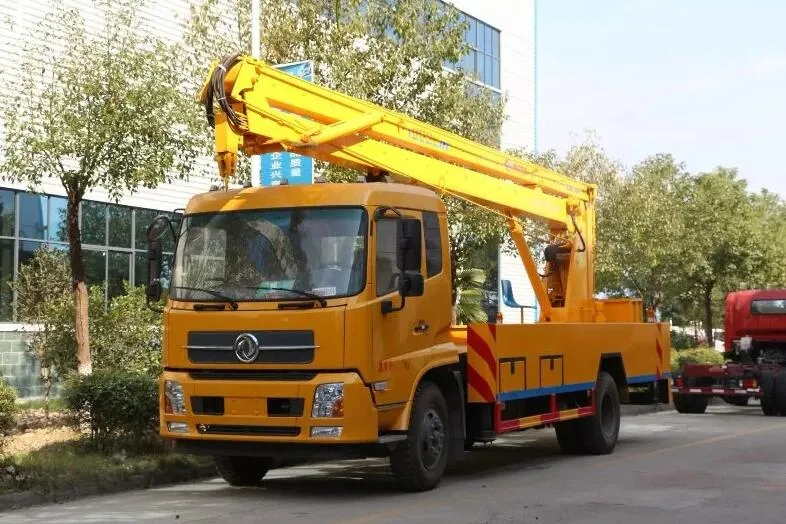

12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
12m-18m Dongfeng Aerial Platform Truck High Altitude Working Platform Lift Truck
Specifications
Origin :
Suizhou, China
Name :
Aerial Platform Truck
Optional Brand :
Dongfeng, Forland, Sinotruk FAW
Arm Type :
Folded or Telescopic
Place of Origin :
CHINA
Brand Name :
CLW
Emission Standard :
Euro 2
Fuel :
Diesel
Transmission Type :
Manual
Produce Name :
Sky Lift Bucket Truck
Bucket Loading Weight :
200kg
Working Radius in Max Height :
3meters
Front Legs :
H Shape
Lifting Height :
14m, 16m, 18m, 20m, 22m
Bucket Size :
1000X650X1200mm
Working Height in Max Working Radius :
10.1meters
Rear Legs :
H Shape
Transport Package :
Naked Package
Trademark :
CLW
Hoesrpower :
90HP - 190HP
Payload :
5-15ton
Drive Wheel :
4x2
Condition :
New
Turning Angle :
360 Degree
Max Working Height :
20meters
Hook Weight :
800kg
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
MOQ :
1
Price :
15000-35000 per unit
Max Working Radius :
8.0meters
Max Hook Height :
8.1meters
Specification :
20meters
HS Code :
8705909990
Production Capacity :
500unit/Month
Description
12-18m Dongfeng Aerial Platform High-Altitude Working High Platform Operation Truck
  • Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  • The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  • Full Computer Control System with Danger Waring System.
  • LCD Screen in Both the Bucket and Truck to Display the Working Status.
  • Rectangular Shape Arms to Increase the Arm Strength.
  • V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Specification
Chassis
Chassis brand: Dongfeng,EQ1101GLJ2
Drive type: Manual, left hand drive,optional right hand drive
Drive wheel: 4*2
Tyre: 9.00-20, 6+1pieces
Control system: Electrically hydraulic system
Transmission: Six speed levers,
6 speed forward with 1 reverse
Chassis dimension: 7120*2462*2710mm
Braking system: Air braking
Clutch: dry clutch, hydraulic remote control
Wheel base: 3950mm
Axis number: 2 pieces
Cab Passengers: 5 passengers
Engine
Engin: ,EQB160-20
Horse power: 185HP
Exhaust: 6700CC
electric system: 24V
Emission standard: Euro 3
Max speed: 90km/h
Fuel: Diesel,optional gasoline
Main parameters technical specifications
Overall size: 9200*2470*3610mm
Overall G.W.: 9900kg
Curb weight: 6320kg
Fact load: 1000kg
Srpings: 8/11+8
Approach/departure angle: 31/20.
Overhang F/R: 1250/2050mm
Axis load: 4500/6995
Warrenty: 1 year
Certification: CCC, ISO...
Tank Parameter
Max Working Height 22m
Max Platform Height 20m
Max Working Radius 8300 mm
Angle Of Rotation 360 °
1. Working platform rating loading=200kg, working platform
rating allowable passengers=2
2. Working platform dimension:1100*570*1000mm,360°turning(left or right),
4 H-shape legs.
3. Clients can choose hydraulic parts made in China or Italy,to be mentioned.
4. Rotating speed 0-2 r/min
