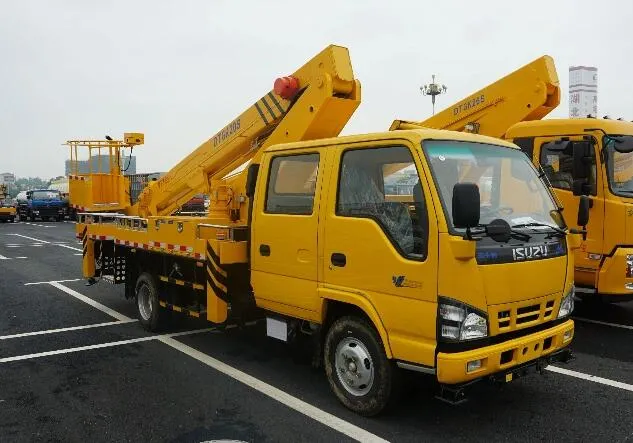

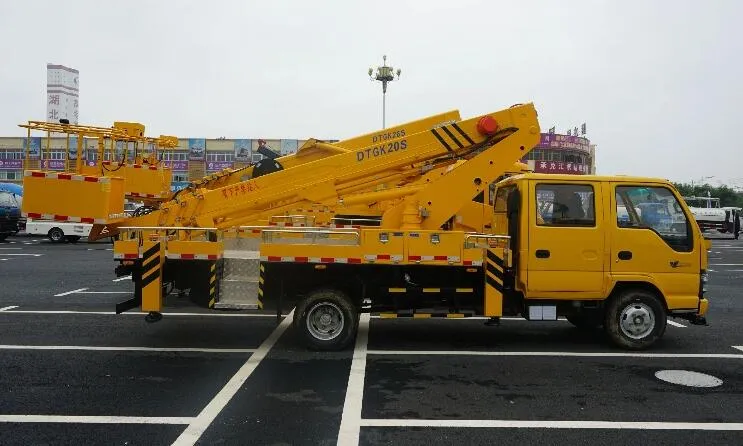

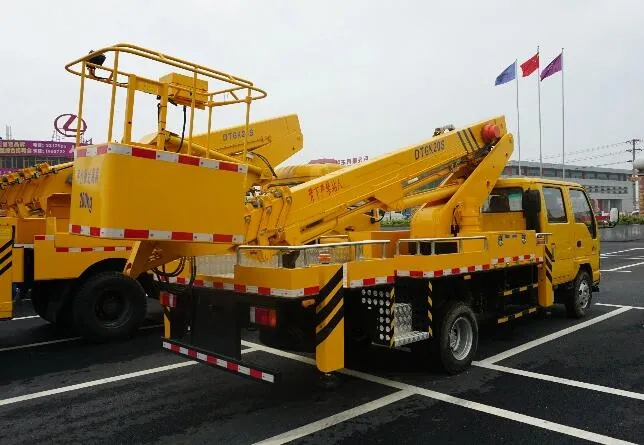

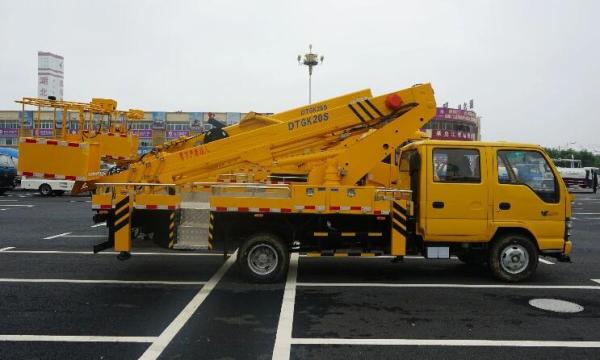

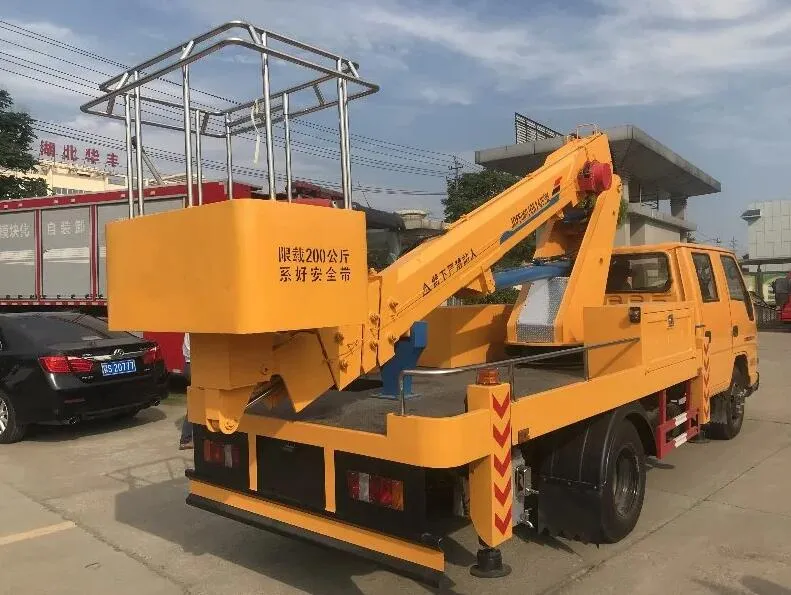

Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Isuzu 18-20m Aerial Platform Truck Mounted Telescopic Boom Man Lift Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Fuel :
Diesel
Certification :
ISO9000, CCC, EEC, CE
MOQ :
1
Price :
15000-35000 per unit
Origin :
Suizhou, China
Type :
Telescopic Boom
Specification :
18meters
Emission Standard :
Euro IV/V
ABS :
with
Max Lifting Height :
18m
Name :
Aerial Platform Truck
Drive Wheel :
4x2
Production Capacity :
500unit/Month
Hoesrpower :
98HP
Transmission Type :
Manual
HS Code :
8705909990
Transmission :
5speed Forwards, 1 Reverse
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Truck Chassis Brand :
Lsuzu
Bucket Loading Weight :
200kg
Trademark :
CLW
Condition :
New
Transport Package :
Naked Package
Payload :
7ton
Model NO. :
CLW5043GKQ
Tyre :
7.00-16, with One Spare Tyre
Description
lsuzu Double Row 18-20m Telescopic Boom Man Lift Truck Aerial Work
Product Description
  • Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  • The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  • Full Computer Control System with Danger Waring System.
  • LCD Screen in Both the Bucket and Truck to Display the Working Status.
  • Rectangular Shape Arms to Increase the Arm Strength.
  • V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Product Parameters
Telescopic Platform Truck lSUZU (18-20M)

General

 Vehicle Brand CLW
Chassis Brand lSUZU
Overall Dimension 8550x2100x3350mm
GVW/Kerb Weight 6,810kg/6,.485kg

Cab

 Cab Capacity 2+3 persons allowed
AirConditioner With airconditioner

Engine

 Fuel Type Diesel
Engine Brand lSUZU engine,4KH1-TCG40
Power 120Ps(88KW)
Displacement 2999ml
Emission Standard EuroIV

Chassis

 Drive Type 4X2,left hand drive
Transmission lSUZU MSB transmission, 5-forward &1reverse
Wheelbase/No.of axle 3815mm/2
Tyre Specification 7.00-16 or 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95km/h
Paint Metallicpaint

Superstructure

 Cage Rated Capacity 200kg
Working Height 18m-20m
Beam The beam is articulated & telescopic extension type,
hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a
slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve,balance valve,double-wa yhydraulic lock,
hand operated emergency hydraulic pump
Leveling System Hydraulic stabiizer to level the vehicle on uneven
ground
Optional Insulated cage; Wireless remote control system
