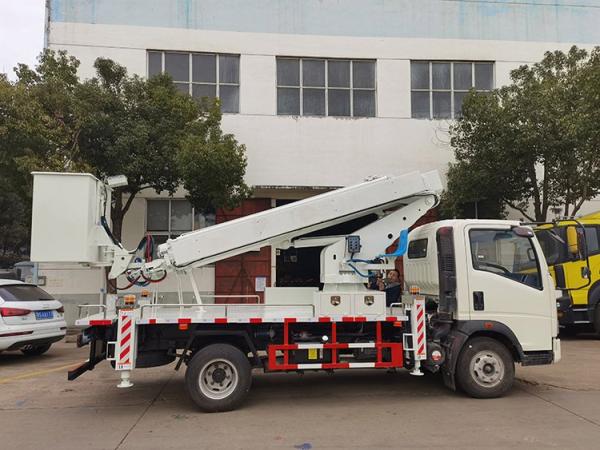

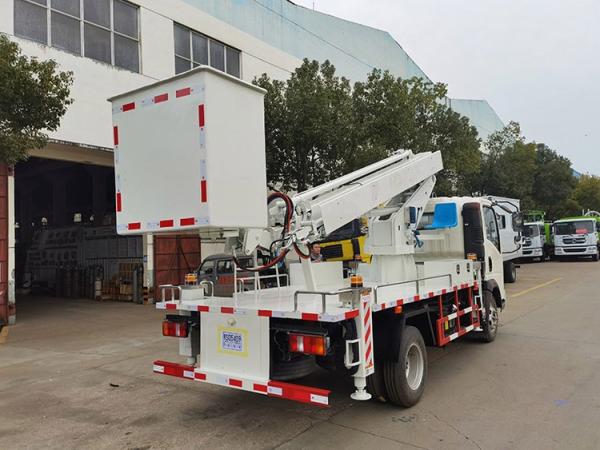

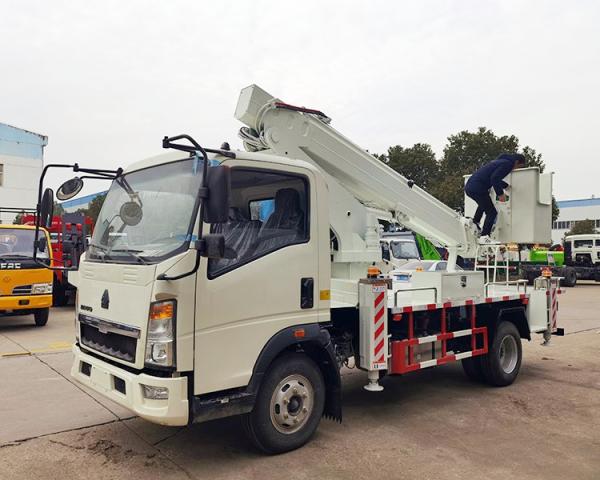

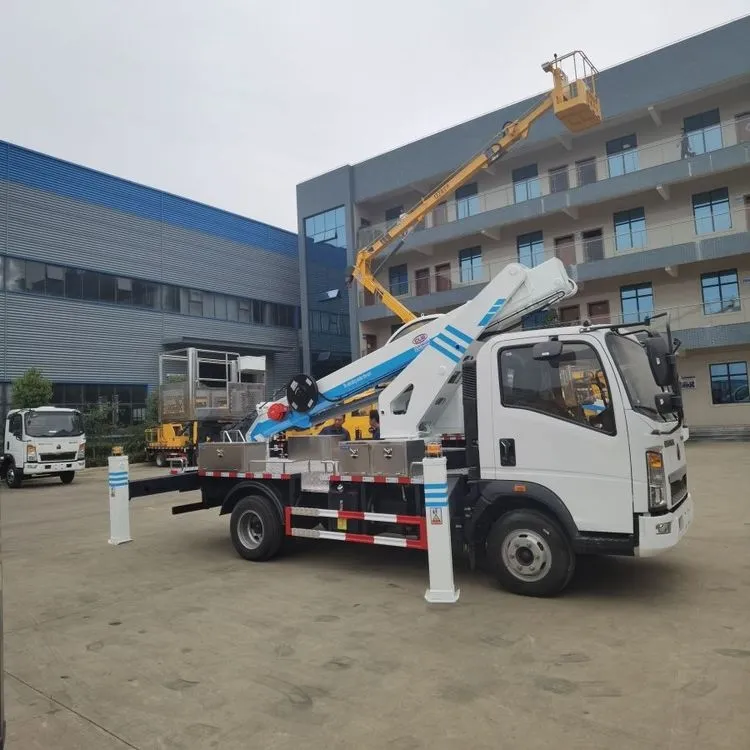

28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
28m-32m Telescopic Boom Hydraulic Man Lift Truck For Aerial Work
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Delivery Time :
30 Days
Engined :
Yunnei,Yn4102qbzl
Hoesrpower :
120HP
ABS :
Have
Origin :
Suizhou, China
Air Conditioner :
Have
Type :
Hydraulic
Payload :
5-6ton
Trademark :
CLW
Truck Chassis Brand :
HOWO
Transport Package :
Naked Package
Specification :
8-14m
Production Capacity :
500unit/Month
Drive Wheel :
4x2
Model NO. :
CLW5089GKZ
Certification :
ISO9000, CCC, EPA, EEC
MOQ :
1
Price :
15000-35000 per unit
Warranty Time :
1 Year
Max Lifting Height :
18m
Transmission :
5 Speed Forward and 1 Reverse, Manual
Fuel :
Diesel
Name :
Hydraulic Man Lift Truck
HS Code :
8701909000
Color :
White, Yellow, or Blue
Emission Standard :
Euro 4
Transmission Type :
Manual
Condition :
New
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Tyre :
7.50-16 or 7.50r16, with One Spare Tyre
Max Bucket Loading Capacity :
200kgs
Description

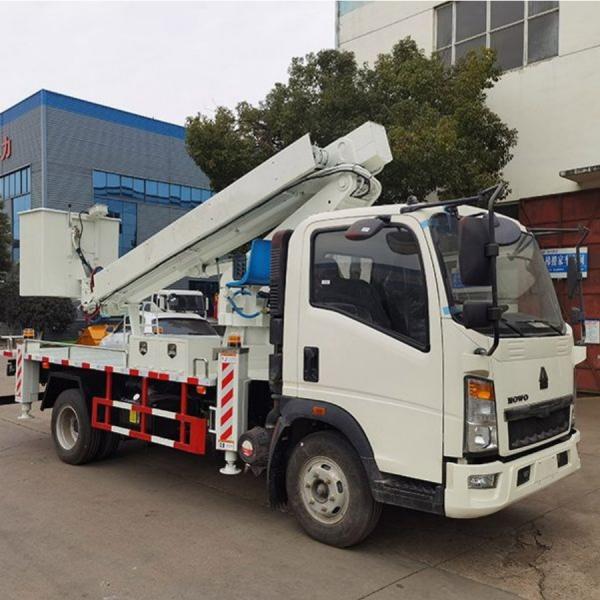

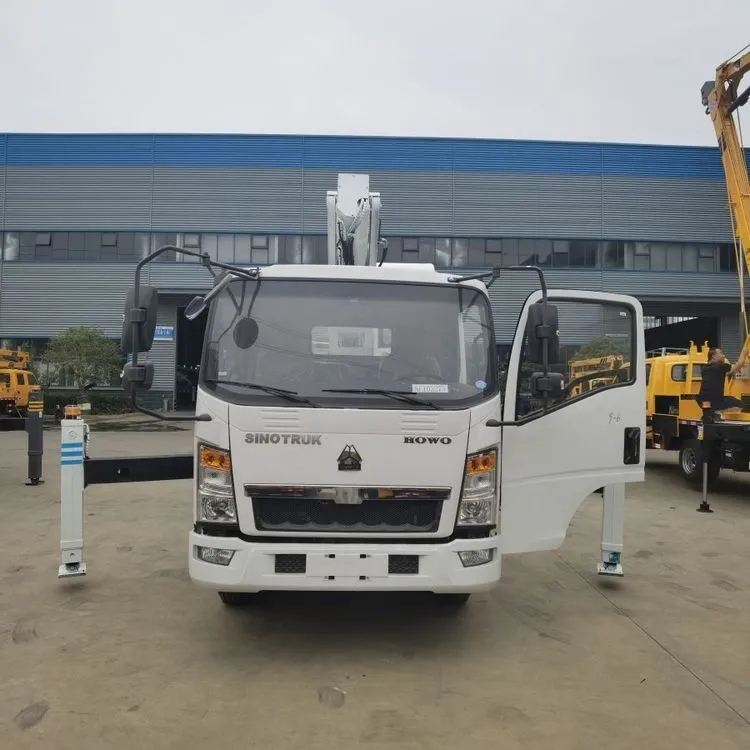

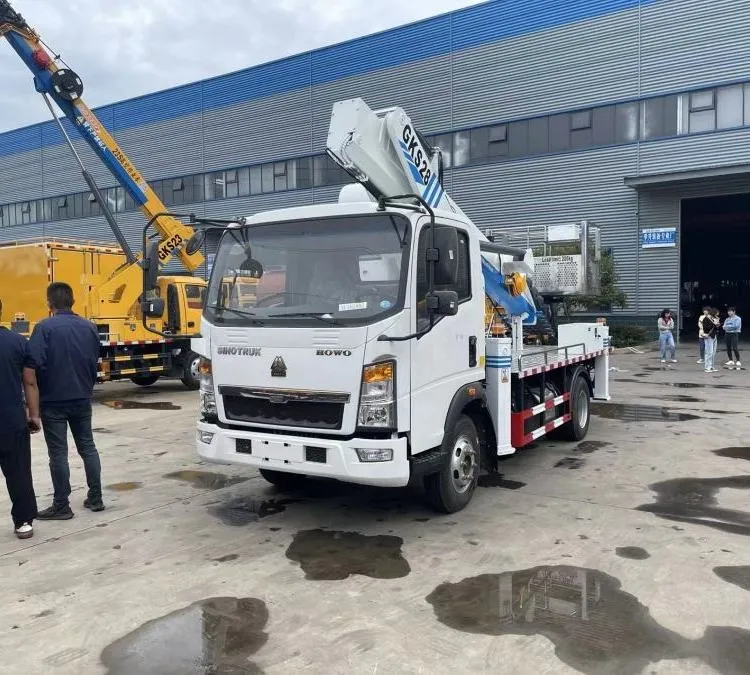

28-32m Telescopic Boom Hydraulic Manlift Truck For Aerial Work

Product Description
  • Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
  • Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
  • 360 degree Rotation Arms.
  • Arm and H leg Automatic Locking System to secure safety handling
Product Parameters
Chassis brand SINOTRUK HOWO Chassis model ZZ1047
Lift height customization 18 meter Total mass (kg) 7305
Engine horsepower 120hp Rated load mass (Kg) 7110
Engine name YN4102QBZL Emission Standards Euro 3
Dimensions (MM) 7300×2000×3100 Fuel type Diesel
Number of tires 6 Tire specifications 7.50R16
Wheelbase (MM) 3815 Maximum speed (km/h) 95
Front track 1506 Rear track 1530

Dedicated configuration

1. Maximum working height: 18 meters, maximum working range: 7.5 meters

2. Adopting the international leading Jiangling high-end chassis and installing three-section folding arm hydraulic lifting special device

3. Environmental protection items to the national motor vehicle fifth stage emission standards (country V)

4. Adopting domestic and imported reversing valve and hydraulic cylinder, the commutation is stable, the operation is flexible and convenient, the hydraulic system realizes the interlocking of the upper and lower vehicles, the overload protection, and the cylinder is safely locked.

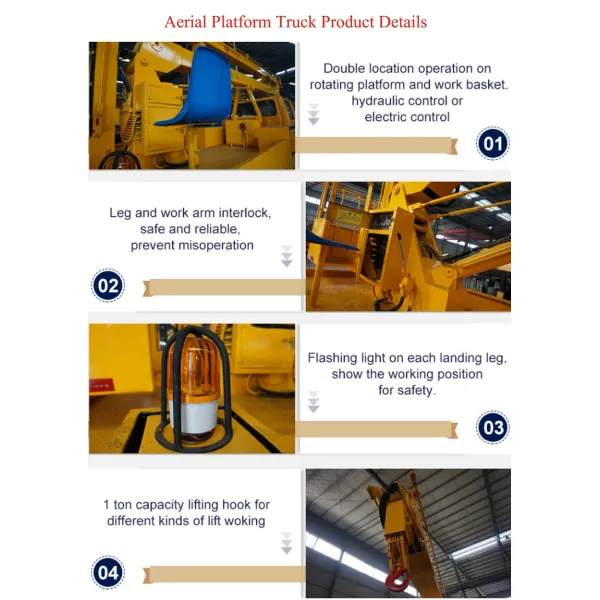

5. Turntable, work bucket double station operation

6. The boom has a compact structure, good maneuverability and large working range.

7. The legs and the working arm are interlocked, safe and reliable, preventing misoperation

8. H-type legs, large span, good stability, the legs can be independently telescopic, and can be linked, equipped with a leg flashing light, used for the leg profile during operation, emitting a light alarm signal

9. Waterproof switch has limit function, dangerous working condition alarm, superior safety performance

10. Optional 1 ton hook (hook telescopic 800-1000mm), hook maximum lifting mass 500kg

11. Optional automatic protection system to prevent misoperation

12. Optional emergency power source, ignition and flameout device

13. Optional electronic control system for electro-hydraulic proportional speed control, stepless speed regulation, smooth operation / electronic control system optional ground wireless remote control operating system

14. Optional 10, 11, 13, 14, 16 , 18, 20, 22, 24meters series of aerial work.
