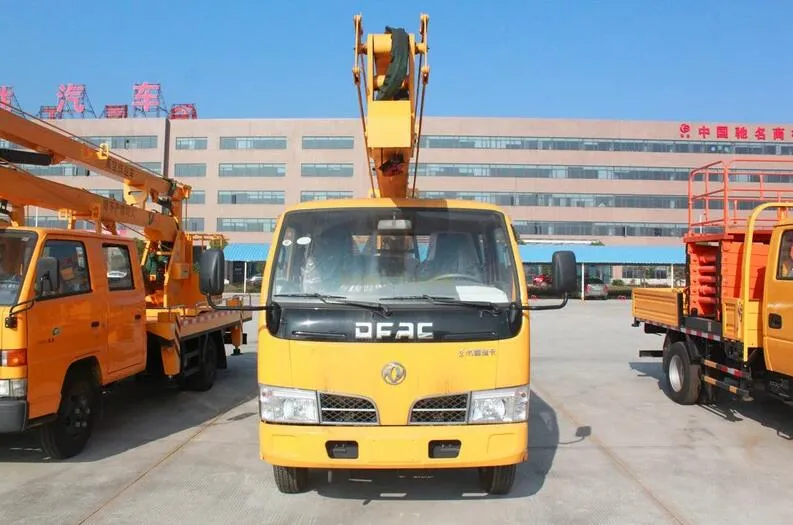

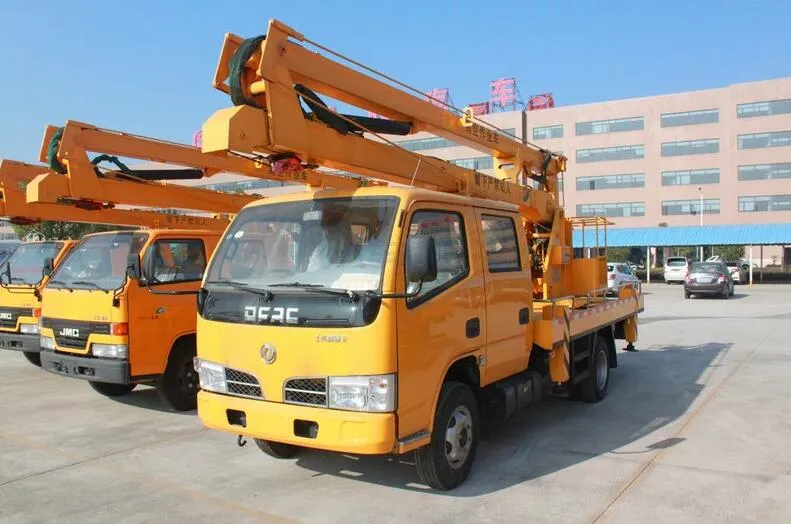

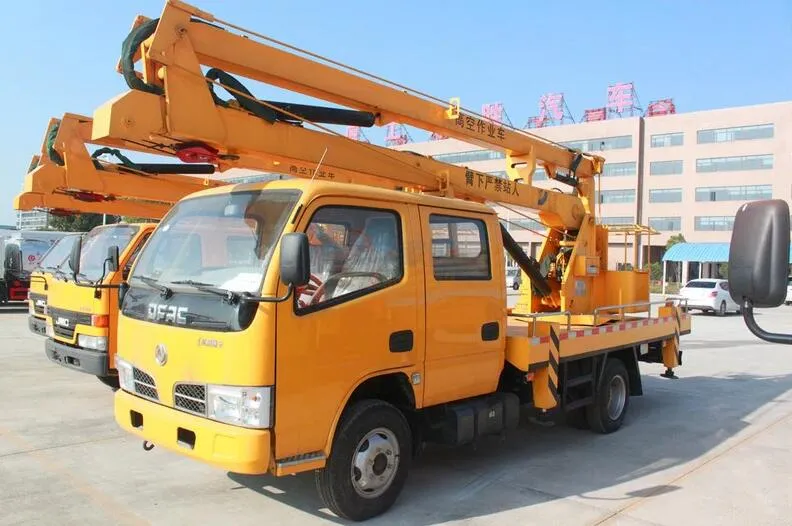

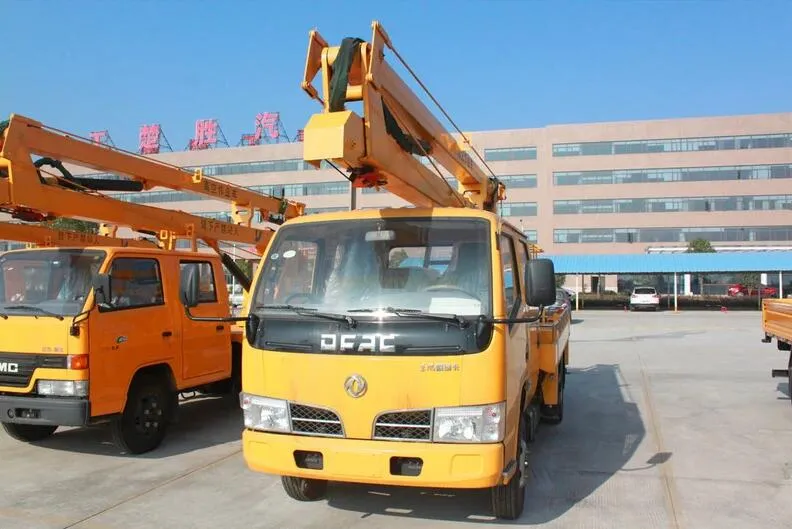

Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Dongfeng 12m 14m Aerial Platform Truck , Aerial Lift Bucket Truck 4x2 Right Hand Drive
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Transport Package :
Naked Package
Max Working Radius :
8.0meters
Transmission Type :
Manual
Production Capacity :
500unit/Month
Hoesrpower :
90HP - 190HP
Condition :
New
Drive Wheel :
4x2
Fuel :
Diesel
Turning Angle :
360 Degree
HS Code :
870590990
Rear Legs :
H Shape
Emission Standard :
Euro 2
Lifting Height :
14m, 16m, 18m, 20m, 22m
Hook Weight :
800kg
Origin :
Suizhou, China
Max Working Height :
18meters
Working Height in Max Working Radius :
10.1meters
Optional Brand :
Dongfeng, Forland, Sinotruk FAW
Name :
Aerial Platform Truck
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Produce Name :
Sky Lift Bucket Truck
Bucket Loading Weight :
200kg
Bucket Size :
1000X650X1200mm
MOQ :
1
Price :
15000-35000 per unit
Payload :
5-15ton
Trademark :
CLW
Working Radius in Max Height :
3meters
Front Legs :
H Shape
Arm Type :
Folded or Telescopic
Max Hook Height :
8.1meters
Specification :
20meters
Description
Dongfeng 12m 14m Aerial Work Platform Truck, Bucket Lifting Trucks (right hand drive)
  1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
  2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
  3. Full Computer Control System with Danger Waring System.
  4. LCD Screen in Both the Bucket and Truck to Display the Working Status.
  5. Rectangular Shape Arms to Increase the Arm Strength.
  6. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.

Product Description

18Meter Aerail Platform Truck
Overall dimensions 8450×2050×3050 mm
Maximum Height 18 meters
Maximum operation radius 7.9 meters
Gross vehicle weight 6705 kg
Mass in working order 6380 kg
Wheel base 4200 mm
F/R track base 1015/2280mm
Approach/departure angle 24/10°
Cabin Dongfeng, Right/Left Hand Driving, with A/C.
Engine Diesel Engine B140 33, 4 Stroke, 4 Cylinder in line, Turbocharged, Inter cooling
Displacement/ HP 3900 Liter / 140HP
Max speed 90 km/h
Tire specification 900R20
Traction system 4x2
Number of axles 2

Equipment
  1. Max operation height:18m
    (including 1.7meter person height, net height is 16.3meter),
  2. Max operation radius≤7.9m,
  3. Max working platform height≤16.3m,
  4. Working platform rating loading≤200kg,
  5. Working platform rating allowable passengers=2,
  6. Working platform dimension:1100*570*1000mm,
  7. 360°turning(left or right), 4 H-shape legs.
  8. The cage be operated both in the air and on the earth
