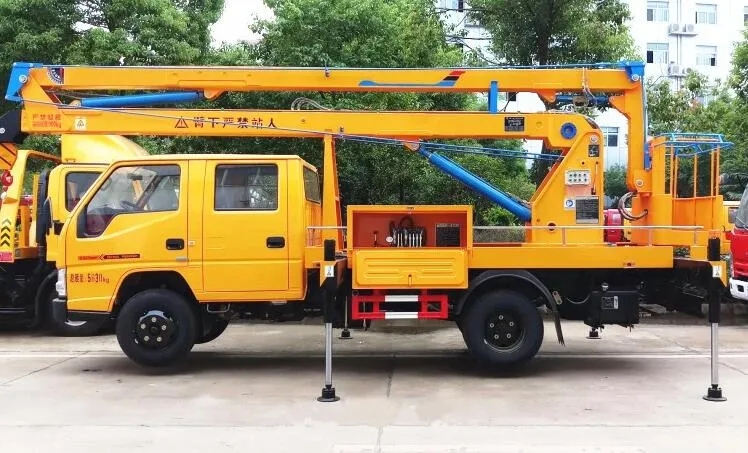

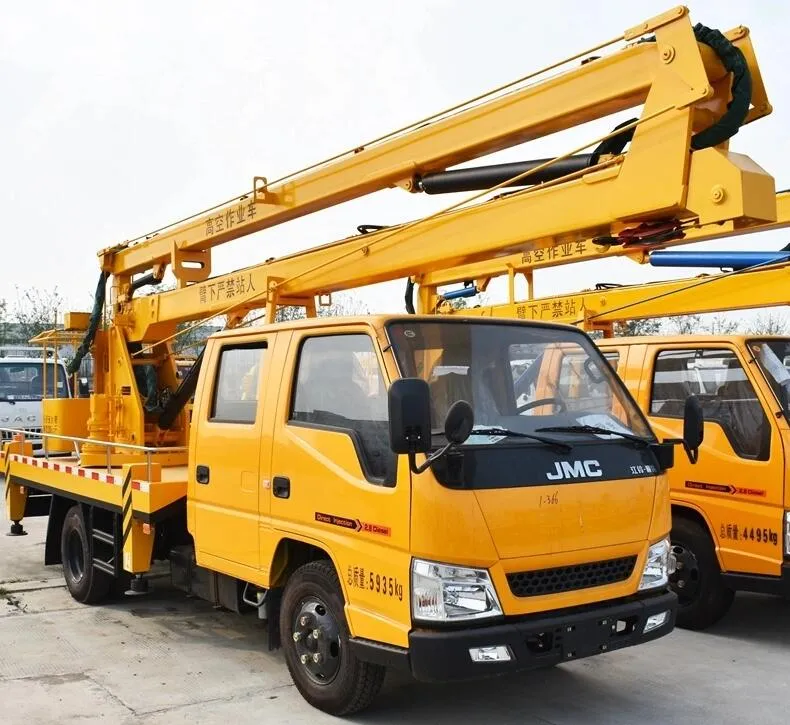

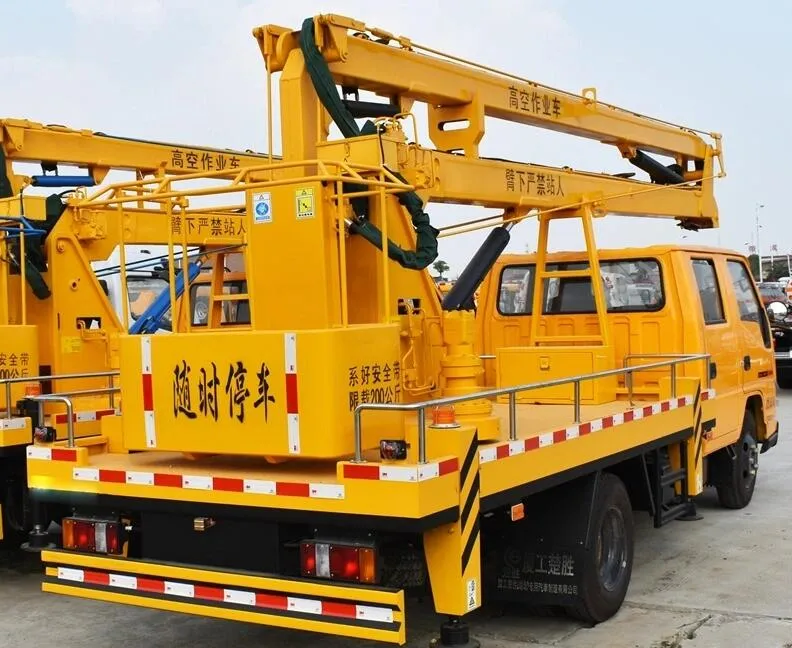

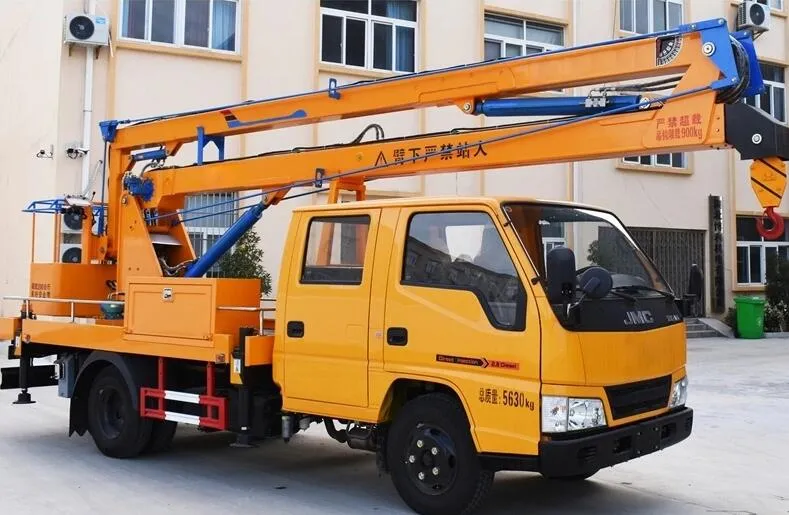

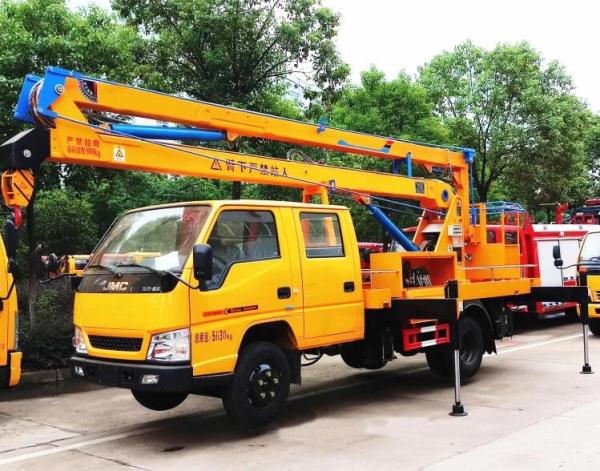

Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Specifications
Platform Rated Load :
200kg
HS Code :
8701909000
MOQ :
1
Price :
15000-35000 per unit
Place of Origin :
CHINA
Brand Name :
CLW
Model NO. :
CLW5112GB
Hook Loading :
1000kg
Origin :
Suizhou, China
Emission Standard :
Euro3, Euro4, Euro5
Drive Wheel :
4x2
Production Capacity :
500unit/Month
Payload :
5-15ton
Specification :
10400*2498*3850mm
Trademark :
CLW
Fuel :
Diesel
Color and Logo :
Customized
Max.Working Height :
16m, 18m, 20m, 22m, etc.
Chassis Brand :
Dongfeng, Foton, etc.
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Condition :
New
Max. Working Range :
9.5m
Transmission Type :
Manual
Hoesrpower :
180HP
Transport Package :
Naked Package
Warranty Time :
1 Year
Boom Turn Around Angle :
360 Degree
Name :
Aerial Platform Truck
Delivery Time :
30 Days
Description
Jmc 12m Articulated Boom Lift Truck, 14m Hydraulic Rising Platform Truck
Description:
  1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
  2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
  3. 360 degree Rotation Arms.
  4. Arm and H leg Automatic Locking System to secure safety handling.
Chassis
Cab double row cabin / single row cabin / one and half row cabin , A/C
Right hand drive /Left hand drive
Engine 180hp
Engine emission standard Euro 3, 4, 5
Fuel type Diesel
Tire 9.00R20
Wheelbase 5000mm
Gear box 6-speed
Boom
Boom type Articulated Booms
Turn around angle 360°
Platform
Max.Rated.Load 200kg(2 persons)
Max.Working Height 22M
Max. working range 9.5M
Outrigger
Adjustment Individual adjustment
type H type
Hook
Max. loading 1000kg

Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck

Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
Jmc 12m Articulated Boom Lift Truck 14m Hydraulic Rising Platform Truck
