Specifications
Drive Wheel :
4×2
Tire Design :
Radial
Horse Power :
120HP
Place of Origin :
CHINA
Brand Name :
CLW
Allowable Person in Cab :
3
MOQ :
1
Price :
15000-35000 per unit
Emission Standard :
Euro 3
Trademark :
CLW
Tire Certification :
ECE, GCC, ISO, DOT
Color :
Optional
Dumping Type :
Front Lifting Style
Traction System :
4X2
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Production Capacity :
500 Unit/Month
Hydraulic Cylinder :
MID-Double Cylinder
Electric System :
12V
Power :
Diesel
Load Capacity :
1-10t
Name :
6 Tyre Tipper Truck
Condition :
New
Seats :
≤5
Application :
Construction Project, Heavy Duty Transportation
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Payload Capacity :
3-5ton
Origin :
Suizhou, China
Specification :
6990*2100*2500
Wheel Base :
3360mm
Horsepower :
150-250hp
Engine Capacity :
4-6L
Box Thickness :
4/3mm
Material of Tank :
Carbon Steel
HS Code :
8704230090
Description

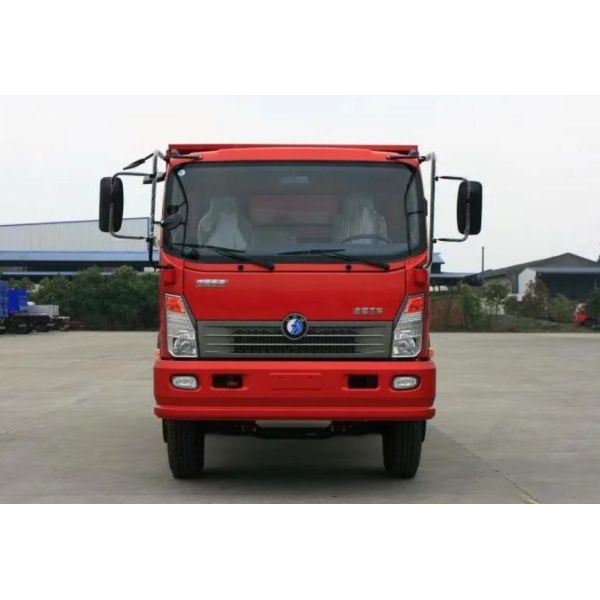

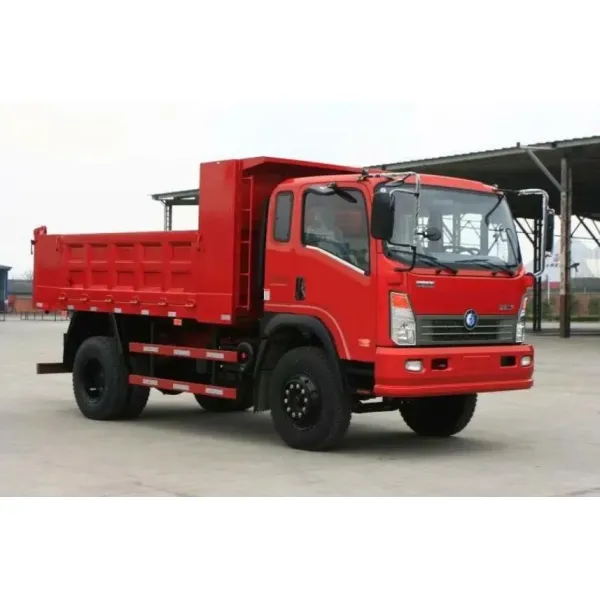

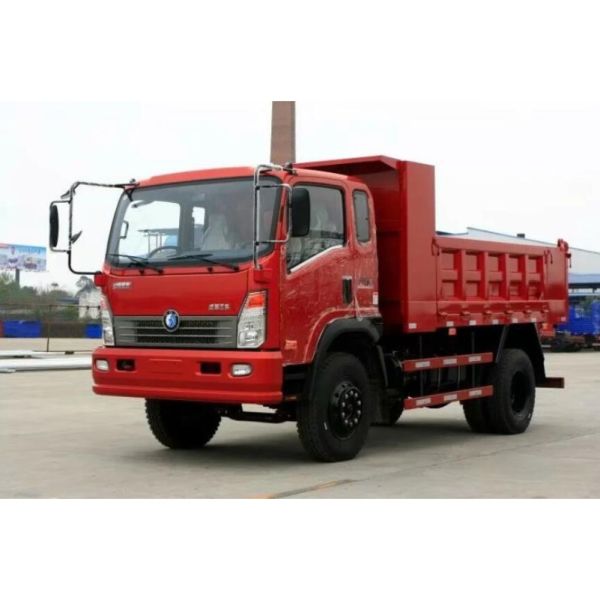

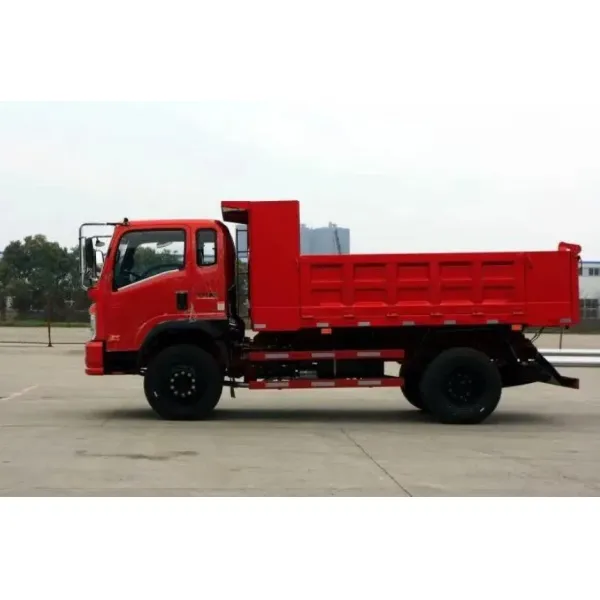

6 Tyres 5000kg Tipper Truck Standard Dump Truck

Dump truck is mainly used for engineering projects to transport dust , sand, rock ,stone,etc, also used in mining and coal site. This truck could be hermetic type. This type of truck twin cylinder lift ,stablely rise, easy to operate, rear dumping.

Product Parameters
Chassis Description
Cab Single row non-longhead cab can turn over
Color Optional
Allowable person in cab 2/3
Wheel base (mm) 3360
Number of axles 2
Front axle 2000
Rear axle 4000
Traction system 4×2
Tire specification 7.00-16
Tire quantity 6+1
Engine Description
Engine manufacture CHAOCHAI Engines
Engine model CY4012
Emission standard Euro 3
Exhaust 3856
Horse power 120hp
Up-parts Description
Max. capacity(kg) 5000
Dump box dimension(L*W*H)(mm) 3800*1800*400
Dump box material Carbon Steel
Dump box thickness(mm) Bottom/Side 4/3
Hydraulic cylinder(kg) Middle set, double lifting cylinder
Dump box color Optional
