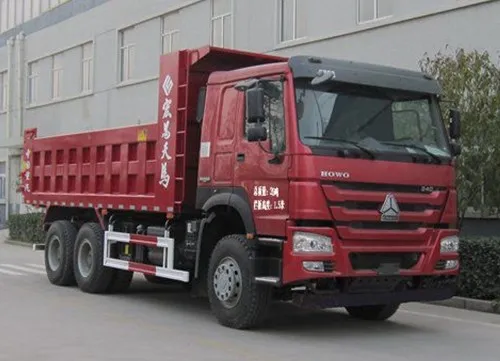

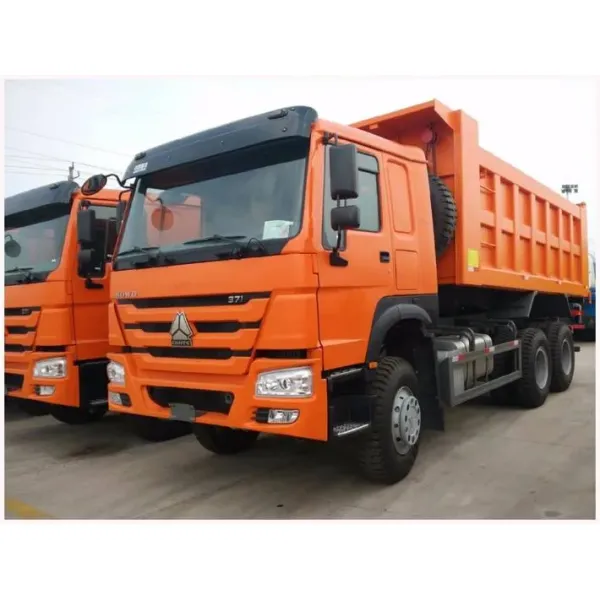

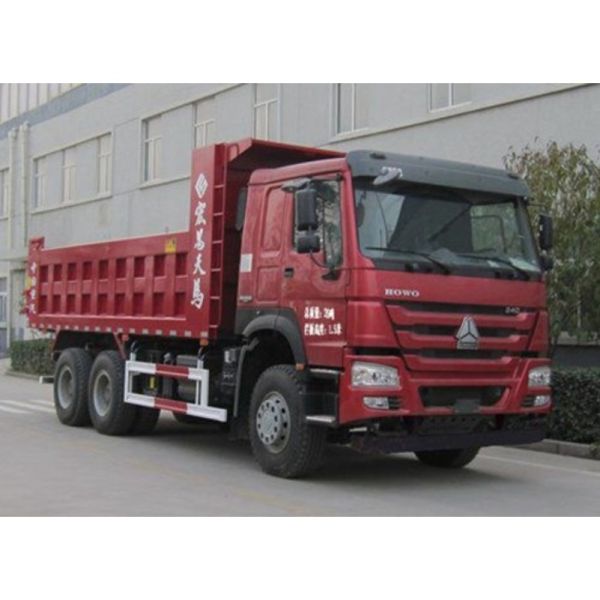

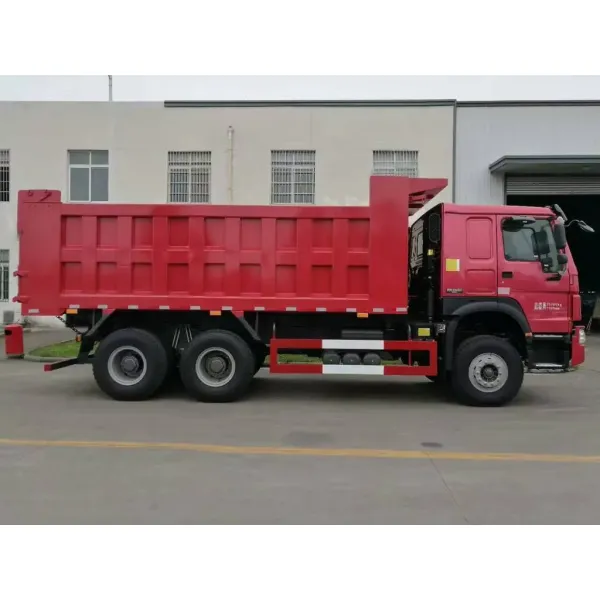

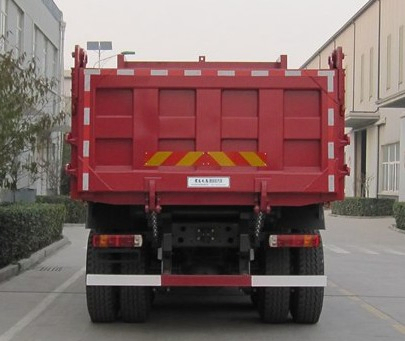

HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
HOWO Tipper / Dump Truck
Specifications
Model NO. :
CLW6688ZXCA06
Brand :
Dongfeng, Chacman, FAW, etc.
Delivery Time :
35 Days
Dumping Type :
Front Lifting Style
Tire Certification :
ECE, GCC, ISO, DOT
HS Code :
8705909090
Place of Origin :
CHINA
Brand Name :
CLW
Tire Design :
Tubeless
Name :
Tipper Dump Truck
MOQ :
1
Price :
15000-35000 per unit
Dump Material :
High Quality Q345b
Horsepower :
351-450hp
Trademark :
CLW
Thickness of The Box :
Side 8mm, Bottom 10mm
Specification :
8860x2496x3450mm
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Oil Cylinder Brand :
International Brand Hyva or Chinese Brand
Condition :
New
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Usage :
Transpotations of Mineral, Stone, Sand, and So on.
Origin :
Suizhou, China
Production Capacity :
500pieces/Month
Lifting Type :
Middle Lifting, Front Lifting
Load Capacity :
31-40t
Warrenty :
1 Year
Drive Wheel :
6×4
Seats :
≤5
Emission Standard :
Euro 2
Engine Capacity :
＞8L
Color :
as Customer's Request
Description
China Sinotruck HOWO 40t Front Tipping Mining Construction Transportation dumping tipper mining truck
Product description:
  • Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, FOTON, etc.
  • Tipping Model: Front-tipping, Middle-tipping.
  • Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
  • High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
  • Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
  • Specification of dump truck:



Cabin

 HOWO 76 Standard Cab
With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.		 HOWO Tipper / Dump Truck



Vehicle Main Dimensions

 (L x W x H) mm 8860×2496×3450
Wheel base (mm) 3825+1350
Wheel track (front/rear) (mm) 1500/1525
Approach/Departure angle(°) 19/24



Weight in KGS

 Tare Weight 12390kg
Loading Capacity 40000kg
Front axles loading capacity HR9 1x9000kg
Rear axles loading capacity HC16 2x16000kg
Max. driving speed(km/h) 85





Engine

Brand Sinotruk Howo
Model WD615.47


Type

 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371HP
Emission standard Euro 2
Gearbox HW19710, 10 forwards & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L) 300
Tire 12R22.5 tubeless tire,10 pieces with one spare



Brakes

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
