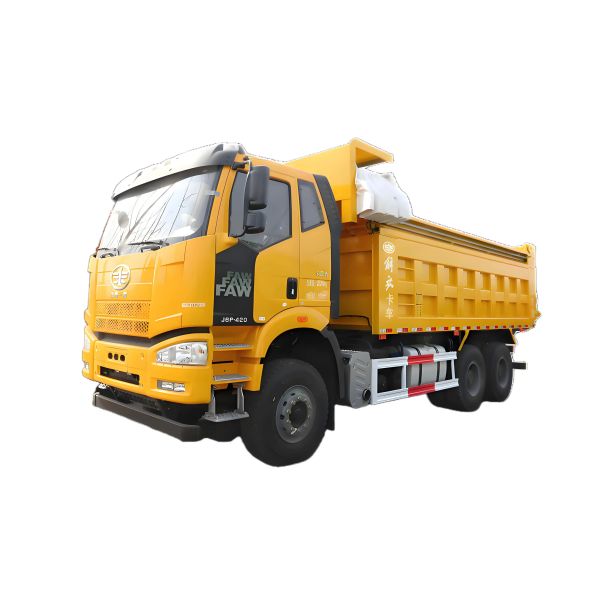

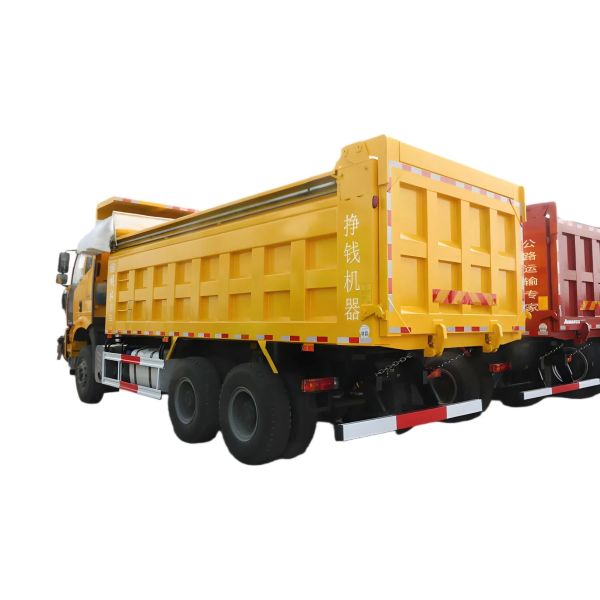

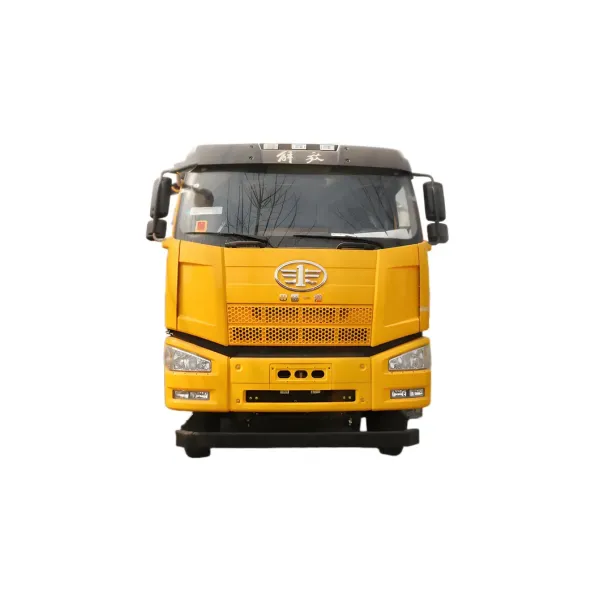

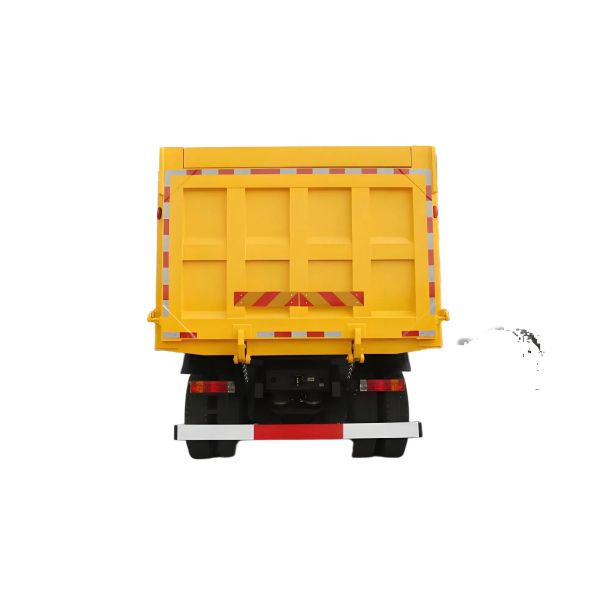

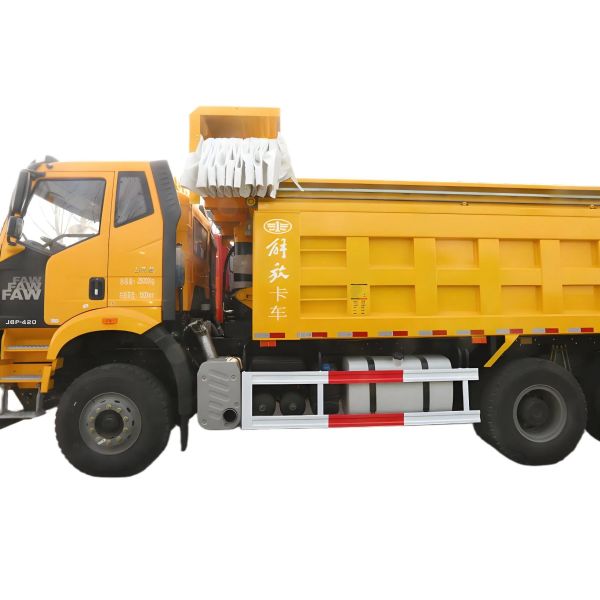

FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
FAW 20T 6x4 Dump Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Thickness of The Box :
Side 8mm, Bottom 10mm
MOQ :
1
Price :
15000-35000 per unit
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Engine Capacity :
6-8L
Delivery Time :
35 Days
Drive Wheel :
6×4
Usage :
Transportation of Minreal, Stone, Sand, and So on.
Production Capacity :
500pieces/Month
Name :
Tipper Dump Truck
Lifting Type :
Middle Lifting, Front Lifting
Tire Design :
Radial
Tire :
Radial Tire 12.00r20 or Tubeless Tire 12r22.5
Wheelbase :
3825+1350mm
Model NO. :
CLW3329GB
Warrenty :
1 Year
Emission Standard :
Euro 2
Seats :
≤5
Tire Certification :
ECE, GCC, ISO
Color :
as Customer's Request
Dumping Type :
Front Lifting Style
Trademark :
CLW
HS Code :
8705909090
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Testing :
Products Inspection Before Shipment
Engine :
336HP
Certificate :
ISO, CCC, BV, SGS
Dump Material :
Carbon Steel Q235 or Q345
Horsepower :
351HP-450HP
Condition :
New
Load Capacity :
31-40t
Specification :
25Tons, 30tons, 35tons, 40tons, etc.
Oil Cylinder Brand :
International Brand Hyva or Chinese Brand
Origin :
Suizhou, China
Description

Product description
FAW 20tons 10 Wheelers Dump Truck Heavy Duty Vehicle Lorry Truck Mining Transportation Dumping Tipper Truck

FAW 20T 6x4 Dump Truck FAW 20T 6x4 Dump Truck FAW 20T 6x4 Dump Truck

Product description:

  • Truck chassis brand of dump truck: SINOTRUK HOWO, CAMC, SHACMAN, JAC, FOTON, etc.
  • Tipping Model of dump truck: Front-tipping, Middle-tipping.
  • Hydraulic oil cylinder brand of dump truck: International brand HYVA or Chinese famous brand.
  • High tensile steel for dumper materia of dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
  • Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
  • Specification of dump truck:
MAIN DESCRIPTION
Overall Dimension 8545mm*2496mm*3350mm (L*W*H)
Payload 25-30ton Curb Weight 12500kg
Front Overhang 1500mm Rear Overhang 1870mm
Wheelbase 3825mm +1350mm
CHASSIS
Chassis Brand
Driving Type 6x4
Cab left hand drive, air-conditioner, one bed
Engine and Power Brand: faw, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
Steering Hydraulic steering with power assistance
Transmission 10 forward speeds and 2 reverse
Clutch Diaphragm clutch
Front Axle HF9, load capacity 9 ton, drum brake
Rear Axle HC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire 12.00-20, 11units including 1 spare tire
CARGO BODY
Inside Dimension 5600mm*2300mm*1500mm(L*W*H)
Hydraulic Cylinder Ventral T-type lift system
Steel sheet thickness Floor 8mm, side wall 6mm
Tailgate One-piece tailgate with upper articulation, safety lock system
FAW 20T 6x4 Dump Truck FAW 20T 6x4 Dump Truck FAW 20T 6x4 Dump Truck FAW 20T 6x4 Dump Truck FAW 20T 6x4 Dump Truck FAW 20T 6x4 Dump Truck
