China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Tire Design :
Tubeless
Dumping Type :
Middle and Front Tipping
Wheelbase :
3775+1440 mm; 3800+1350 mm; 4300+1400 mm;
HS Code :
8704230090
MOQ :
1
Price :
15000-35000 per unit
Drive Mode :
6X4/12 Wheels; 8X4 Is Available
Origin :
Suizhou, China
Production Capacity :
500 Unit/Month
Tire Certification :
ISO
Trademark :
CLW
Repaint :
as Per Customer Request
Name :
Tipper Dump Truck
Condition :
New
Side Plate Thickness(mm) :
10.0mm; 8.0mm; 6.0mm
Specification :
8300x2500x3200mm
Drive Wheel :
6×4
Seats :
3 Seats
Usage :
Transportation of Mineral, Stone, Sand and So on
Engine Capacity :
＞8L
Steering Wheel :
Left Hand Drive
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Horsepower :
251-350hp
Bottom Thickness(mm) :
12.0mm; 10.0mm; 8.0mm
Model NO. :
CLW
Emission Standard :
Euro 2
Testing :
Products Inspection Before Shipment
Material :
Carbon Steel Q235/Q345
Transmission Type :
Manual
Oil Cylinder Brand :
China Local Brand; Hyva Brand
Manufacturing Year :
New Condition
Load Capacity :
41-50t
Power :
Diesel
Certificate :
ISO CCC BV SGS
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Description
China Dongfeng Heavy Duty Truck 20 ton 25 ton 6*4 Drive with 20 CBM Dump Truck
Product Description

1. Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,FOTON...

2. Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand

3. High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.

4. Used in construction site for transportation of mineral,stone,sand and so on.

Main Specification
ConditionNew condition/Left hand drive/6x4










Chassis

ModelEQ
Curb weight(kg)11905
Axle loading(Front/Rear)(kg)7000/18000
Axle quantity(pcs)3
Wheelbase(mm)3800+1350
Dimensions(mm)8250×2490×3000
Wheel track (front/rear) (mm)1940/1860/1860mm
Front/Rear overhang(mm)1250/1650
Approach/Departure angle(°)32/35
Max. driving speed(km/h)90
ClutchReinforced diaphragm clutch


Brakes

Service brake: dual circuit compressed air brake.
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering GearPower steering, hydraulic steering with power assistance
TireQuantity10pcs with one spare tire

Specifications10.00-20
TransmissionManual type, 8 Forwards and 2 reverse
CabIt can accommodate three people. With Air conditioner




Engine

BrandDongfeng
Fuel typeDiesel
Displacement(ml)8300 ml
Power(kw)191 kw
Horsepower(HP)260 HP
Cylinder number6
Emission standardEuro 3





Upper

Overall dimensions(mm)5000*2300*1000 mm
Max. Loading weight(kg)15 tons
Button Thickness(mm)4.0
Side plate Thickness(mm)3.0
MaterialQ235 Carbon steel
Tipping typeDouble cylinder middle Tipping
Oil cylinderChina local brand
Oil cylinder size(mm)110
Remarks1. Color is optional

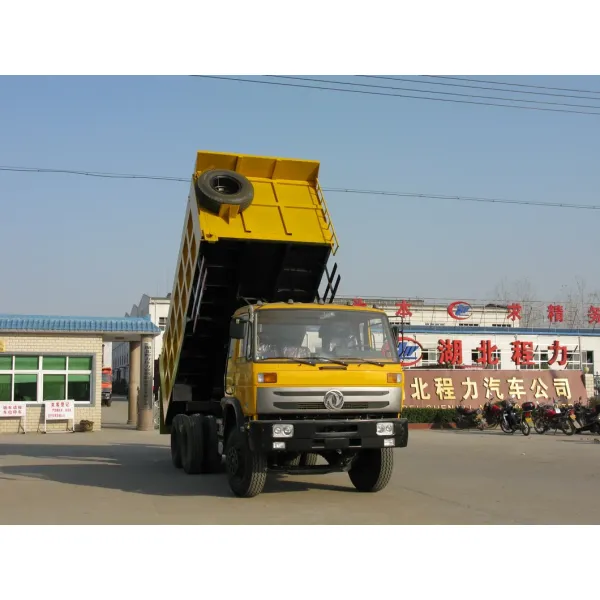

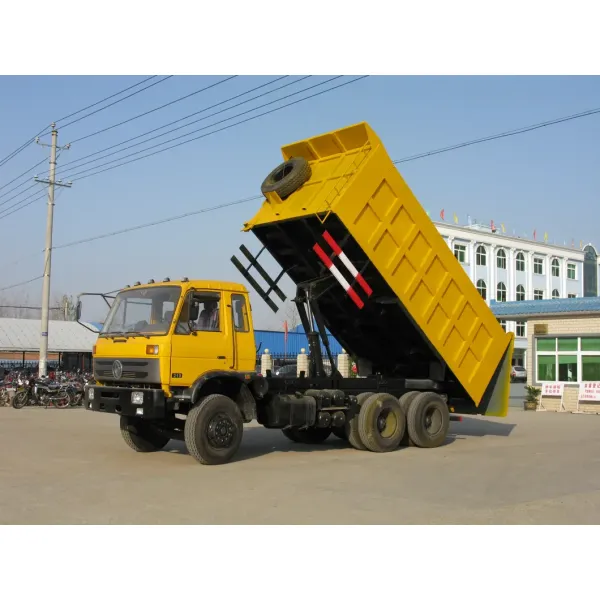

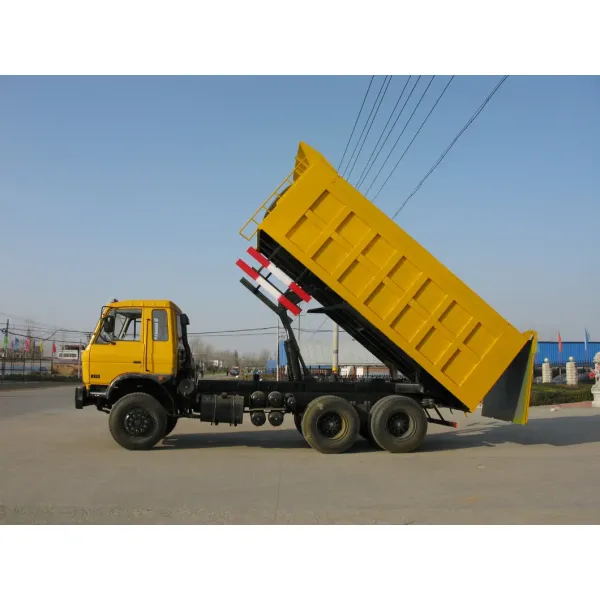

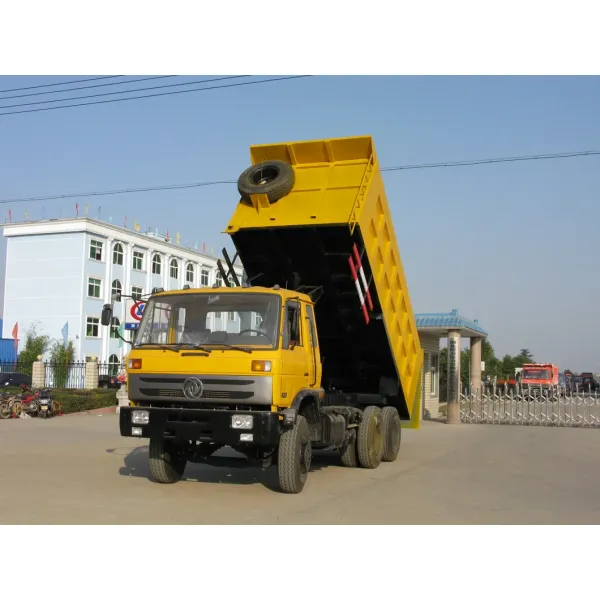

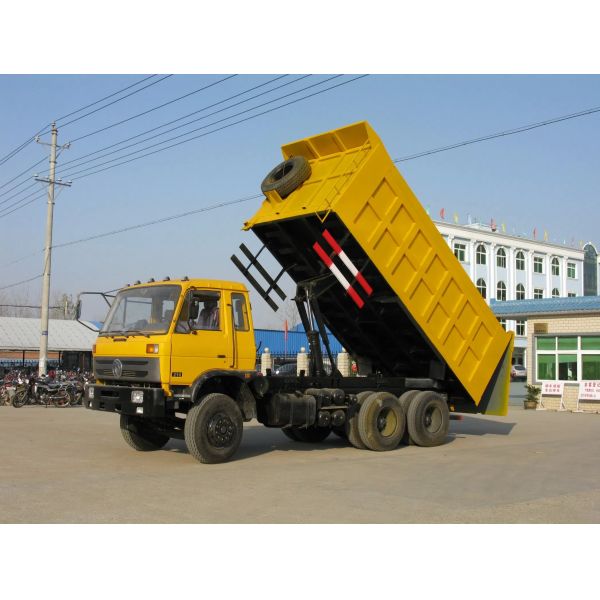

Detailed Photos
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
Workshop View
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
China Dongfeng 10 Wheeles Dump Body 20tons /25tons 6X4 Drive with 20 Cbm Mining Truck Dumper Truck
Product Catalogue:
  • Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
  • Truck with crane / Truck mounted crane
  • Dump Truck / Tipper Truck/Side Tipper/End Tipper
  • Fire Fighting Truck / Fire Truck / Fire Vehicle
  • Concrete Mixer Truck
  • Van truck /Refrigerated truck
  • Fecal suction truck / Sewage suction truck,
  • Cement Powder Tank truck/ Bulk cement truck
  • High-altitude operation truck,
  • Self-loading garbage truck, garbage compactor truck, sealed garbage truck
