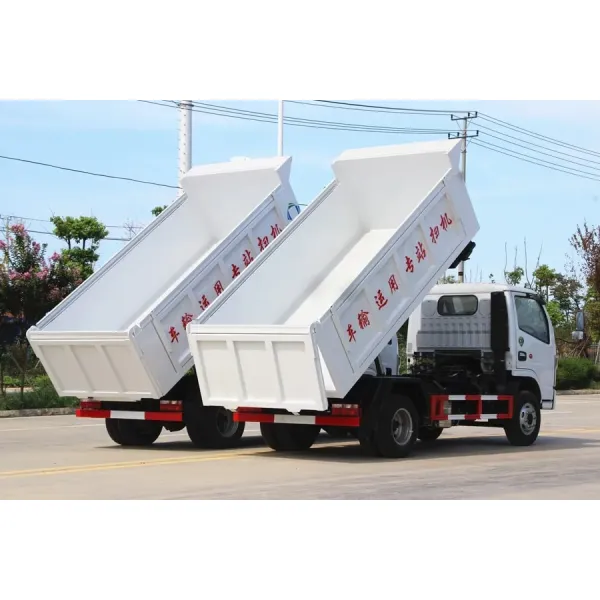

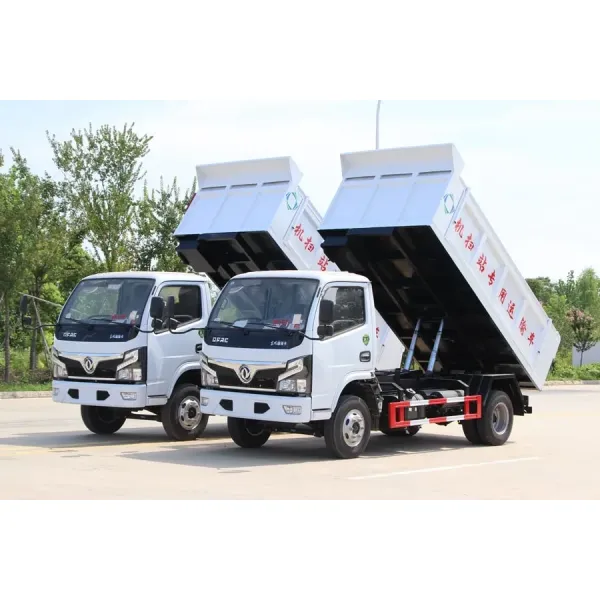

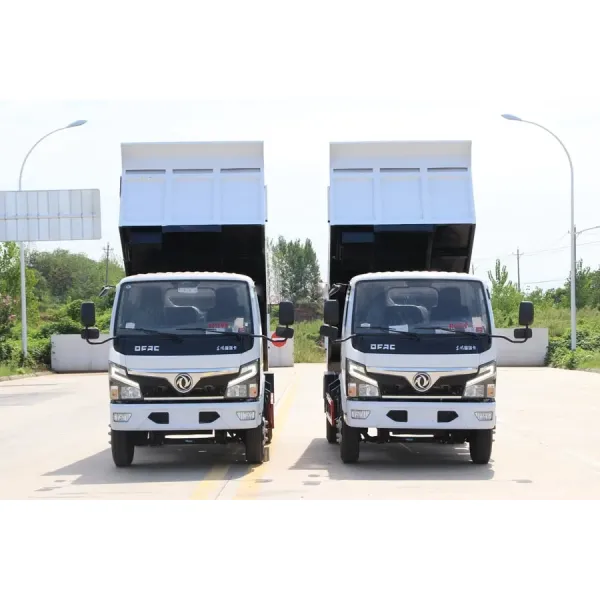

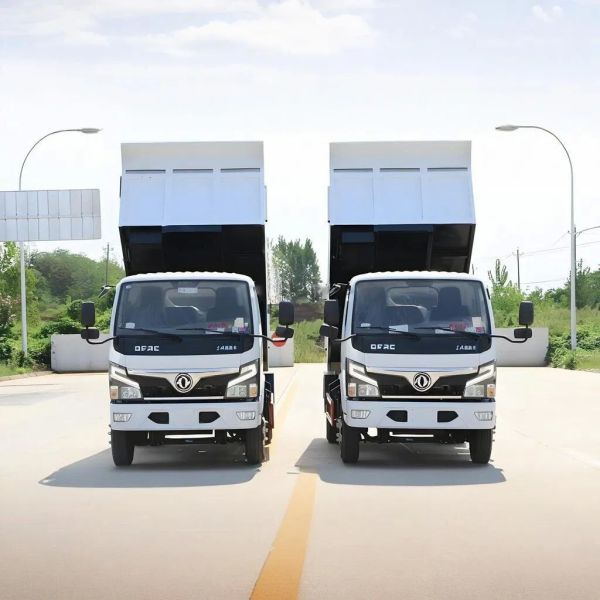

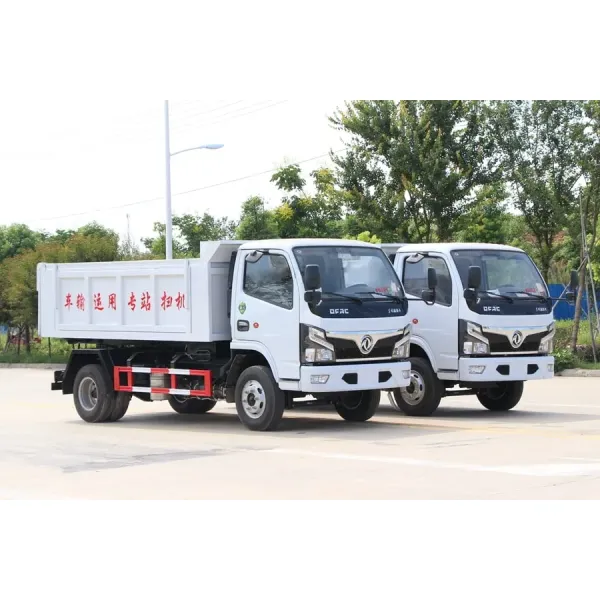

4X4 Full Wheel Driving 3ton Mini Small Dump Tipper Truck for off Road 5ton Loading Capacity tipper truck
Product Description
1) Truck chassis brand of Dumper Truck: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ,FOTON, etc.
2) Tipping Model of Dumper Truck: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand of Dumper Truck: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia of Dumper Truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
Specification of Dumper Truck
| Dimension(L*W *H)(unloaded)(mm) | 5600x2000x2250mm | |
| Cargo body size (L*W*H)(mm) | 4200 x 2100 x 550mm | |
| Approaching angle/Departure angle(°) | 19/26 | |
| Overhang(front/rear) (mm) | 1500/1739 | |
| Wheel base (mm) | 33000 | |
| Max speed(km/h) | 75 | |
| Curb weight(kg) | (Kg) | |
| Loading Weight(kg) | (Kg) | |
|
Engine |
Model | CY4103 |
| Fuel type | Diesel | |
| Displacement (ml) Power(kw) |
3450 88 |
|
| Emission | EURO 2 | |
| Fuel tanker capacity(L) | 150 | |
| Transmission | Model | 5 Forward & 1 Reverse |
|
Brake system |
Service brake | air brake |
| Parking brak | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | Hydraulic |
| Front axle | Steering with double T-cross section beam | |
| Rear axle | Cast axle housing, central double reduction with differential locks between axles and wheels | |
| Tyre | 7.00-16 | |
|
Electrical system |
Battery | 12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
