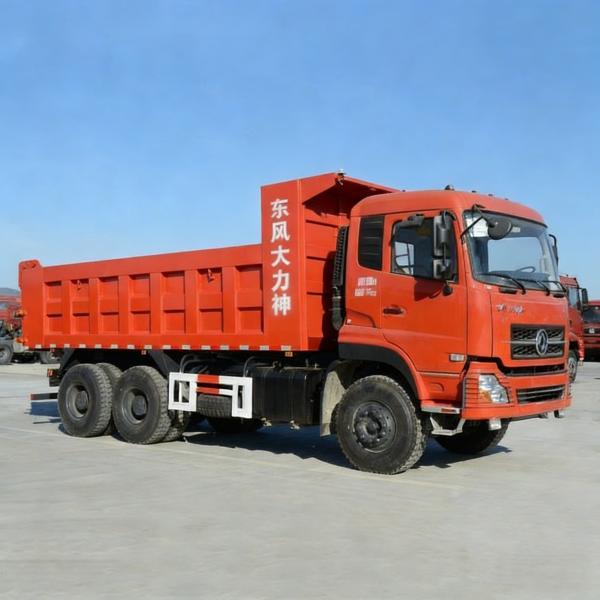

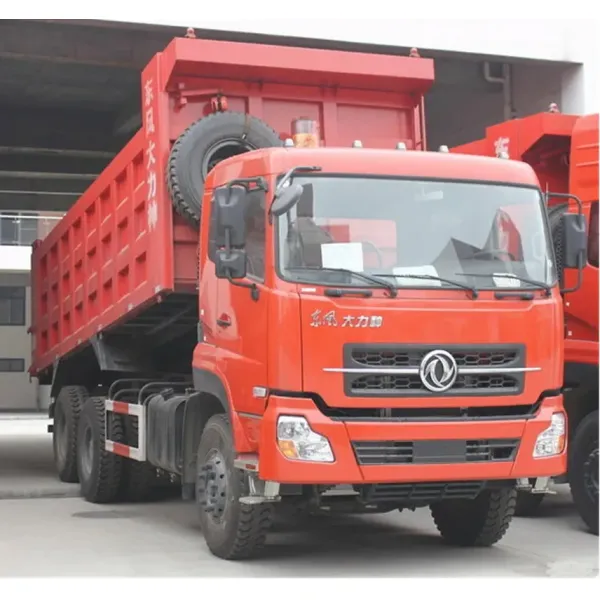

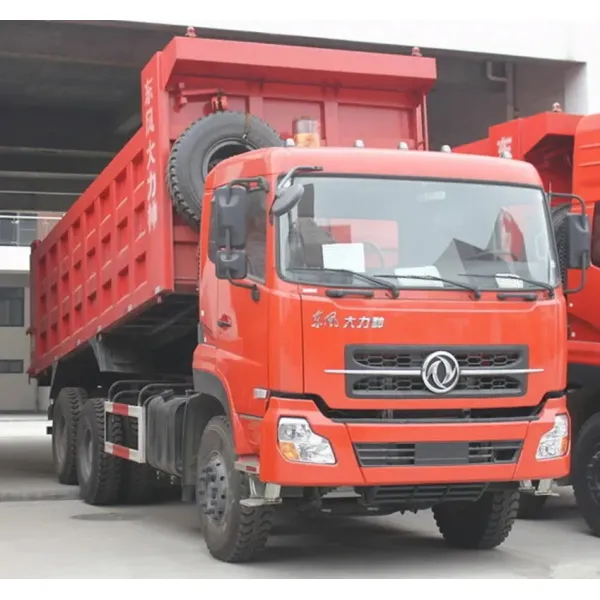

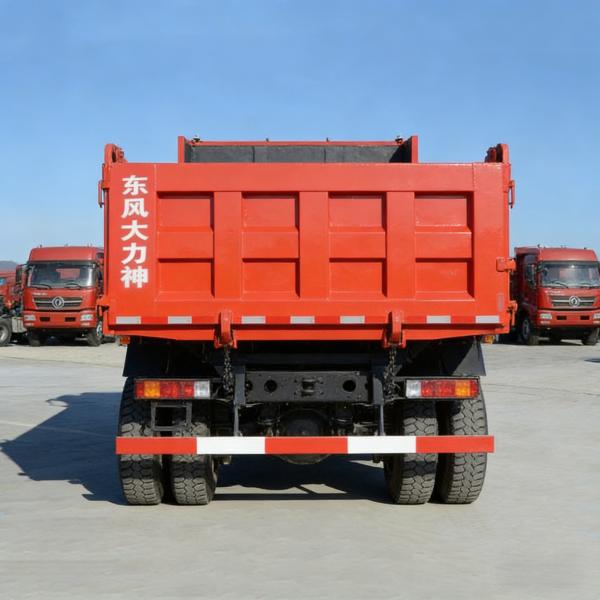

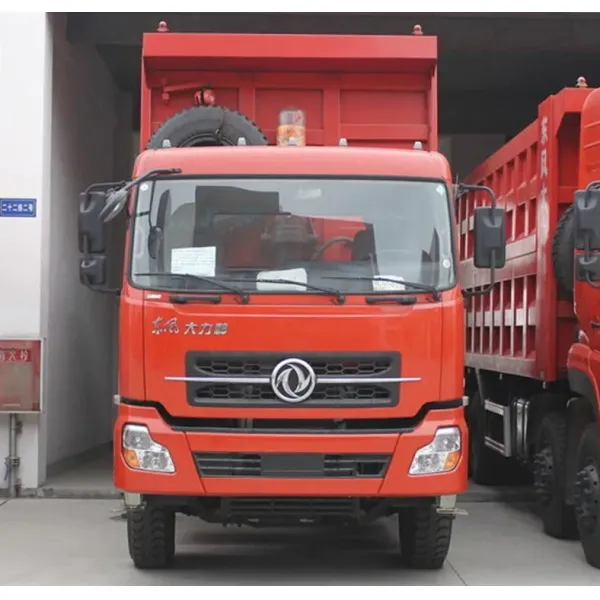

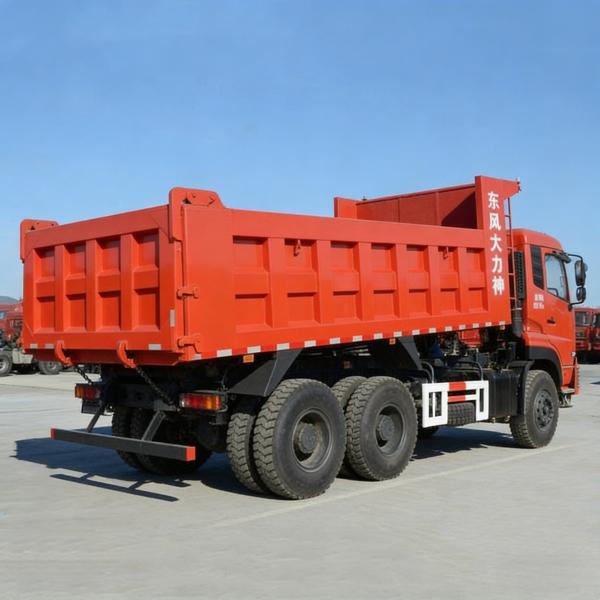

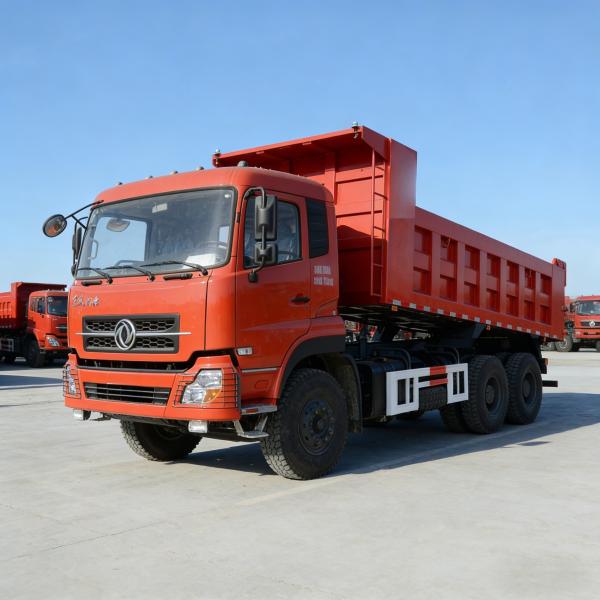

Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Dongfeng Heavy Tipper Truck 6X4 35 Ton Tipper Dumper Truck 20cbm
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
MOQ :
1
Price :
15000-35000 per unit
Color :
as Customer Request
Name :
Heavy Tipper Truck
Seats :
≤5
Tire Design :
Bias
HS Code :
8704230090
Load Capacity :
31-40t
Engine Capacity :
＞8L
Condition :
New
Emission Standard :
Euro 2
Horsepower :
251-350hp
Specification :
8562x2950x3500
Production Capacity :
500 Unit/Month
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Tire Certification :
ECE, GCC, ISO, DOT
Dumping Type :
Front Lifting Style
Drive Wheel :
6×4
Origin :
Suizhou, China
Model NO. :
CLW3350GZXC414
Dimension :
20cbm
Trademark :
CLW
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Description
Applications:

Dump truck is a vehicle that removes goods by itself through hydraulic or mechanical lifting.Also known as dump truck.It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and lifting device.

The carriage of dump truck can be divided into backward tilting and side tilting. The piston rod movement is controlled by the control system. Backward tilting is more common.

Dumper is often combined with excavators, loaders, belt conveyors and other construction machinery in civil engineering to form a production line for loading, transporting and unloading of earthwork, sand and rock, and bulk materials.

Competitive Advantage:
  • Can be customized according to customer requirements
  • High reliability and low failure rate
  • Strong engine performance
  • Low load oil consumption, high strength structural steel for the container.
  • Spare parts are easy to buy
TECHNICAL PARAMETERS
Truck Specification
Truck model CLW3300GZXC1
Cab D310 Ear mechanical cab suspension
Driving Type 6x4
Max Speed (km/h) 90
Overall dimension(mm) 8562x2950x3450
GVW( kg) 31000
Wheelbase(mm) 3800+1350
Approach/Departure Angel 23/21
Tire 12.00-20/12.00R20
Gear box RT-11509G
Bridge Front axle 7T
Rear axle 13T+13T

Enging

 Model Commins L340
Fuel Type Diesel fuel
Type Water-cooled, four-stroke,, direct injection, turbocharged
Max output power 340

Braking system

 Service Brake Compressed air brake
Park Brake Spring energy
Auxiliary brake engine exhaust brake
Eletric system 24v
Upper-Body specification
Dump box dimension (L*W*H)(mm) 5800x2300*1500
Dump box material Carbon steel
Dump box thickness (mm) bottom/side 8/6
Hydraulic cylinder Front-placed T-Shape cylinder
Dump box color According to customer's requirement
