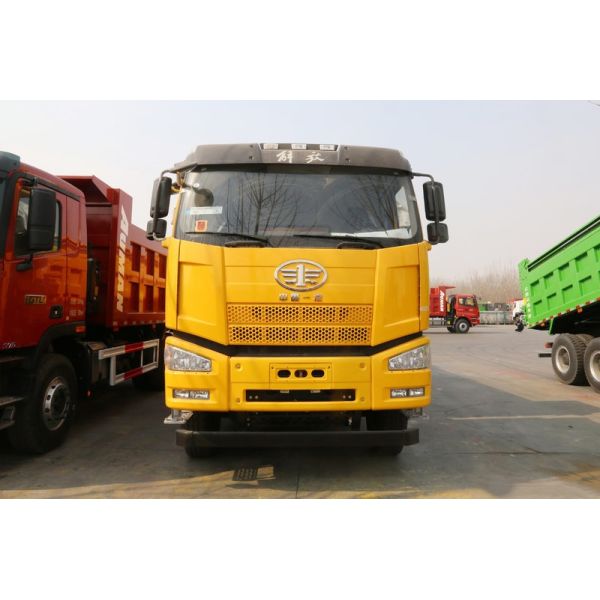

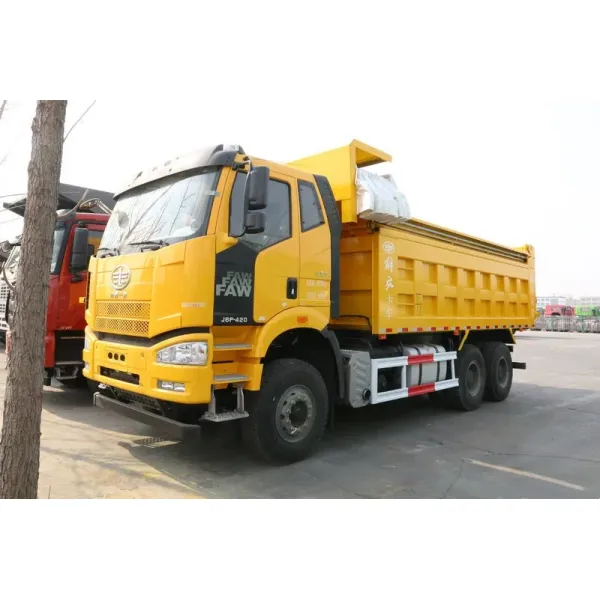

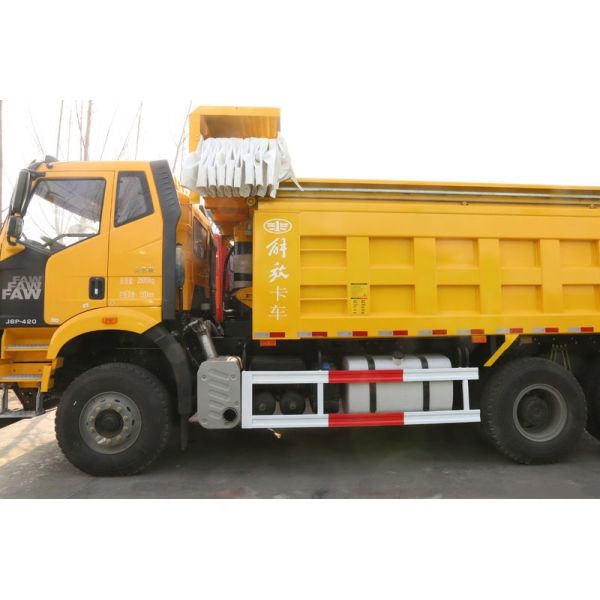

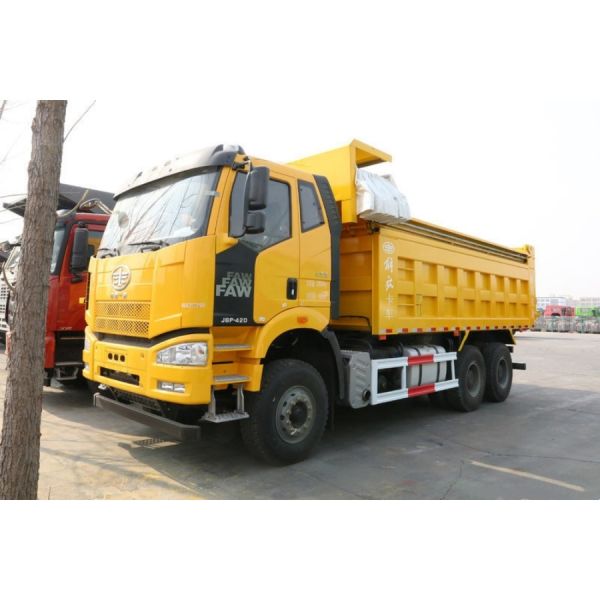

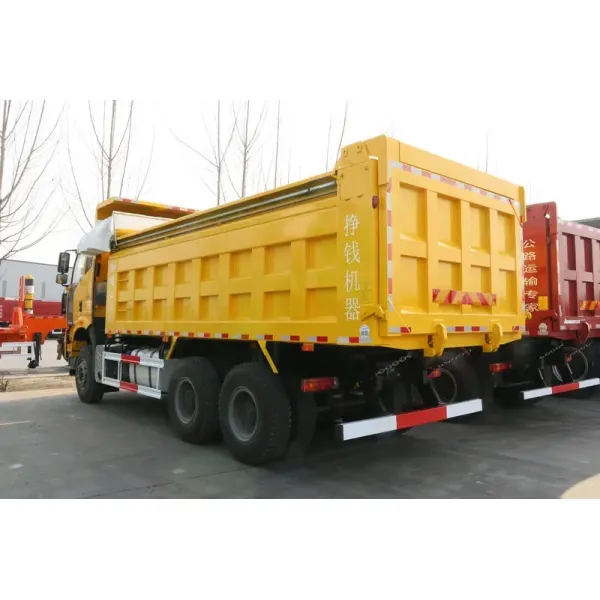

Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Non FAW 371HP 25tons-30 Tons Dump Truck , Tipper Minery Transportation Truck
Specifications
Engine :
336HP
Trademark :
CLW
Condition :
New
Testing :
Products Inspection Before Shipment
HS Code :
8705909090
Production Capacity :
500pieces/Month
Place of Origin :
CHINA
Brand Name :
CLW
Emission Standard :
Euro 2
Lifting Style :
Middle Lifting, Front Lifting
Seats :
≤5
Name :
Tipper Dump Truck
Warrenty :
1 Year
Horsepower :
351-450hp
Specification :
25tons, 30tons, 40tons, 50tons
Drive Wheel :
6×4
Model NO. :
CLW3329GB
Thickness of The Box :
Side 8mm, Bottom 10mm
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Oil Cylinder Brand :
International Brand Hyva or Chinese Brand
MOQ :
1
Price :
15000-35000 per unit
Tire Certification :
ECE, GCC, ISO
Usage :
Transportation of Mineral, Stone, Sand, and So on.
Tire Design :
Tubeless
Color :
as Customer's Request
Engine Capacity :
6-8L
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Tire :
Radial Tire 12.00r20 or Tubeless Tire 12r22.5
Delivery Time :
35 Days
Chassis Brand :
Dongfeng, FAW, Sinotruck, Shacman, etc.
Origin :
Suizhou, China
Wheelbase :
3825+1350mm
Dumping Type :
Front Lifting Style
Load Capacity :
31-40t
Dump Material :
Carbon Steel Q235 or Q345
Cabin :
3 Persons with A/C
Description

Product description

Non FAW 371HP 25tons~30tons dump truck tipper minery transportation truck

Product description:

  • Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, FOTON, etc.
  • Tipping Model of dump truck: Front-tipping, Middle-tipping.
  • Hydraulic oil cylinder brand of dump truck: International brand HYVA or Chinese famous brand.
  • High tensile steel for dumper materia of dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
  • in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and so on.

Specification of dump truck:

Description
Overall dimensions 9765*2496*3690mm
GVW 31000kg
Curb weight 14300kg
Chassis brand SHACMAN F3000

Up-parts Description

Up-parts Description
Cargo dimension 6700, 7400*2300*1200, 1500mm
Loading capacity 23-30cbm
Material Carbon steel
Thickness Side 6mm
Bottom 8mm
Hydraulic system brand Imported or Chinese brand
Lifting style Middle or front lifting

Specification of dump truck:

MAIN DESCRIPTION
Overall Dimension 8545mm*2496mm*3350mm (L*W*H)
Payload 25-30ton Curb Weight 12500kg
Front Overhang 1500mm Rear Overhang 1870mm
Wheelbase 3825mm +1350mm
CHASSIS
Chassis Brand
Driving Type 6x4
Cab left hand drive, air-conditioner, one bed
Engine and Power Brand: faw, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
Steering Hydraulic steering with power assistance
Transmission 10 forward speeds and 2 reverse
Clutch Diaphragm clutch
Front Axle HF9, load capacity 9 ton, drum brake
Rear Axle HC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire 12.00-20, 11units including 1 spare tire
CARGO BODY
Inside Dimension 5600mm*2300mm*1500mm(L*W*H)
Hydraulic Cylinder Ventral T-type lift system
Steel sheet thickness Floor 8mm, side wall 6mm
Tailgate One-piece tailgate with upper articulation, safety lock system
