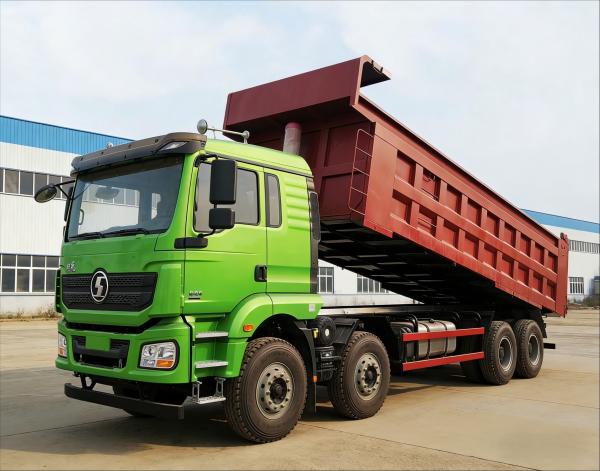

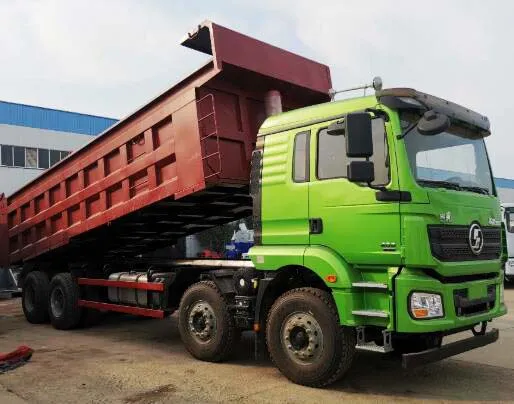

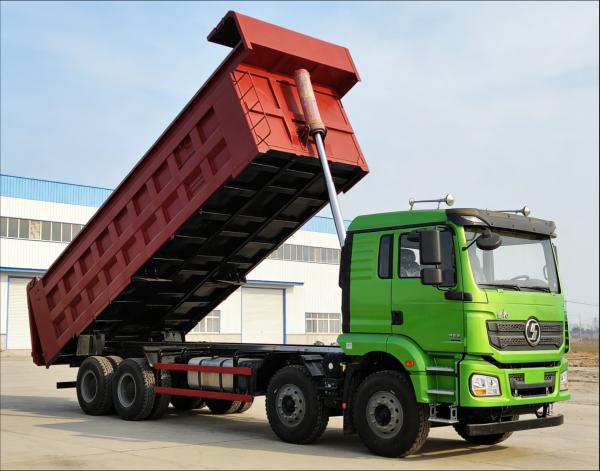

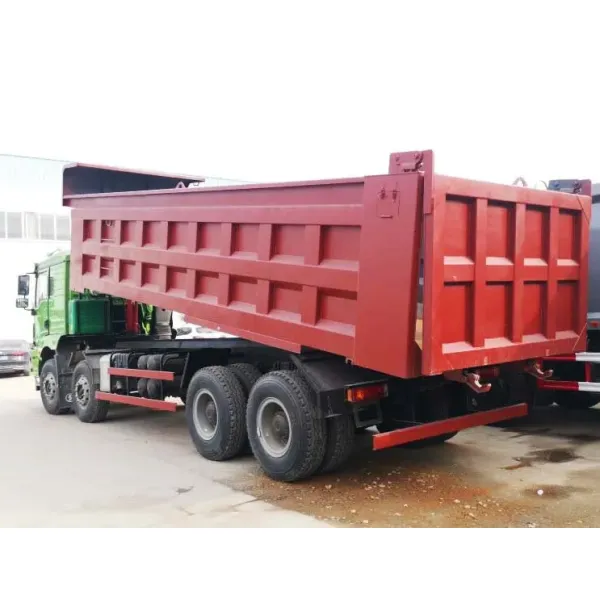

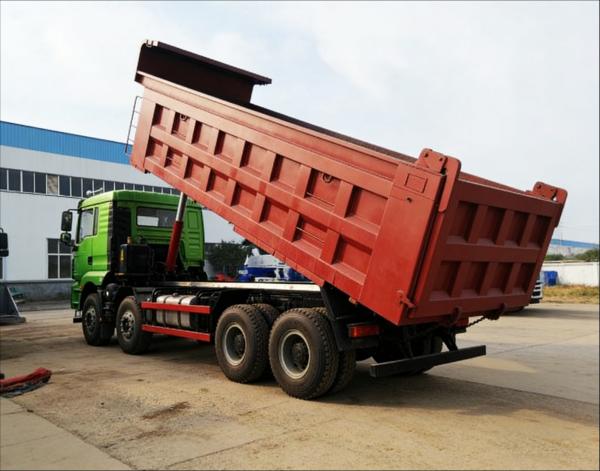

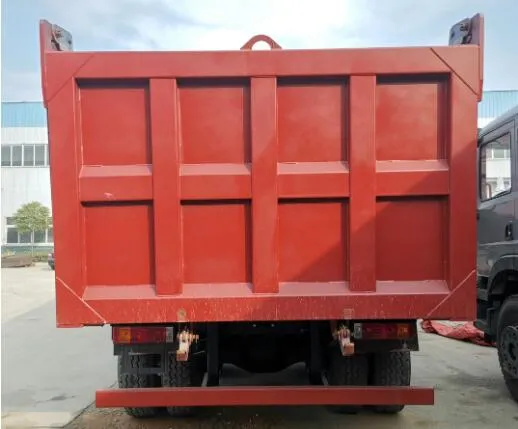

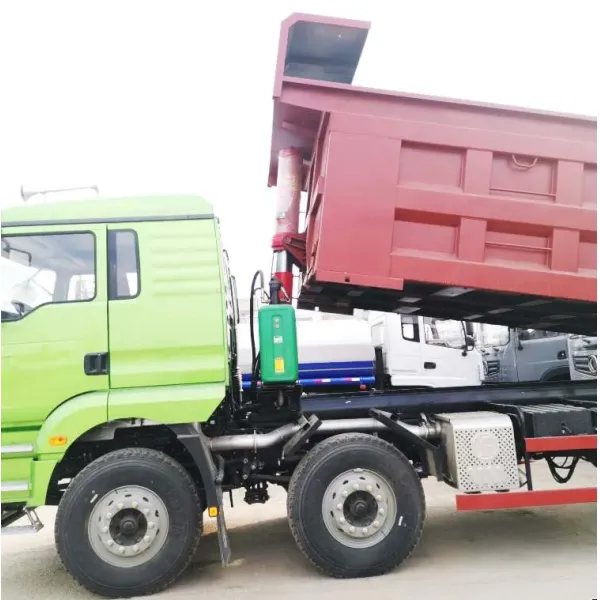

Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Tire Design :
Tubeless
Name :
Heavy Duty Dumper Truck
Cabin :
3 Pesons with A/C
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Tire :
Radial Tire 12.00r20 or Tubeless Tire 12r22.5
Color :
as Customer's Request
Load Capacity :
41-50t
Lifting Type :
Front Lifting, Middle Lifting
Condition :
New
Model NO. :
CLW3312WYTU
Warrenty :
1 Year
Trademark :
CLW
Emission Standard :
Euro 2
Thickness of The Box :
Side 8mm, Bottom 10mm
Usage :
Transportations of Mineral, Stone, Sand, and So on
Drive Wheel :
8×4
Delivery Time :
35 Days
Engine :
260HP, 336HP, 371HP
Production Capacity :
500pieces/Month
Wheelbase :
1800+3575+1400mm
HS Code :
8705909090
MOQ :
1
Price :
15000-35000 per unit
Dumping Type :
Front Lifting Style
Origin :
Suizhou, China
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Horsepower :
351-450hp
Oil Cylinder Brand :
International Brand Hyva or Chinese Brand
Tire Certification :
ECE, GCC, ISO
Specification :
20tons
Seats :
≤5
Engine Capacity :
＞8L
Dump Material :
Carbon Steel Q235 or Q345
Description
Shacman tipper truck 12 wheeles dump body 40ton 50ton dump tipper truck
Product description:
  • Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, FOTON, etc.
  • Tipping Model of dump truck: Front-tipping, Middle-tipping.
  • Hydraulic oil cylinder brand of dump truck: International brand HYVA or Chinese famous brand.
  • High tensile steel for dumper materia of dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
  • Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and so on.
Specification of dump truck:
ITEM PARAMETERS
Brand SHACMAN
Model F2000
Product Dump truck
Cabin Left hand drive, without air conditioning
GVW(kg) 31000
Curb weight(kg) 14600
Front axle 9.5T man technology
Rear axle 16Ton man casting axle, final ratio 4.769
Wheelbase(mm) 1800+3575+1400
Overall dimensions(mm) 10329×2490×3450
F/R suspension(mm) 1525/2054
F/R track base(mm) 1939/1939, 1850/1850
Approach/departure angle(°) 28/20
Max speed(km/h) 85
Clutch 430 diaphragm type
Fuel tank volume 400L(alloy)
Brakes Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering gear Power steering, hydraulic steering with power assistance
Tire quanity 12 pcs with 1 spare tire
Tire specification 12.22R20
Transmission 9 speed forwarder, with 1 reverse
Cab With air conditioning and a sleeper
Traction system 8×4
Number of axles 4
Engine model WP12.430E201(WEICHAI)
Displacement 11.596L
Power 283kw/385hp
Emission standard EURO 2
Gearbox 12JSD200T-B+QH50, FAST gearbox
Fuel type Diesel
Max torque 2060N.m
Cylinder number 6
Electric system(V) 24
Operation control sysytem Electrically hydraulic control

Dump body

 Size: 7400×2300×1500
Max loading weight: 40ons
Material: carbon steel Q235
Side thickness: 6mm, bottom thickness: 8mm.
Hyva front tipping;
China famous oil cylinder cylinder
Color is optional for customer's request
Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck Shacman Dump Tipper Truck 8X4 Diesel Engine Heavy Duty Dumper Truck
Products Catalog:
  • LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
  • Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
  • Truck with crane / Truck mounted crane
  • Dump Truck / Tipper Truck/Side Tipper/End Tipper
  • Fire Fighting Truck / Fire Truck / Fire Vehicle
  • Concrete Mixer Truck
  • Van truck /Refrigerated truck
  • Fecal suction truck / Sewage suction truck,
  • Cement Powder Tank truck/ Bulk cement truck
  • High-altitude operation truck,
  • Self-loading garbage truck, garbage compactor truck, sealed garbage truck
  • Tractor
  • High Pressure Cleaning Truck
  • Sweeper Truck
  • Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
