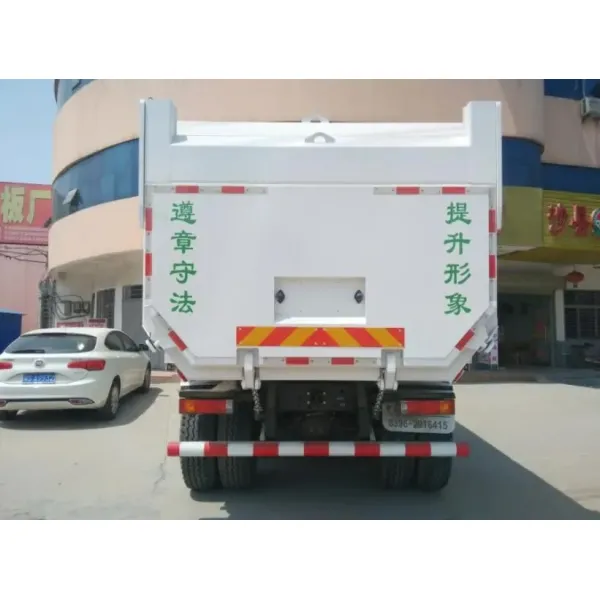

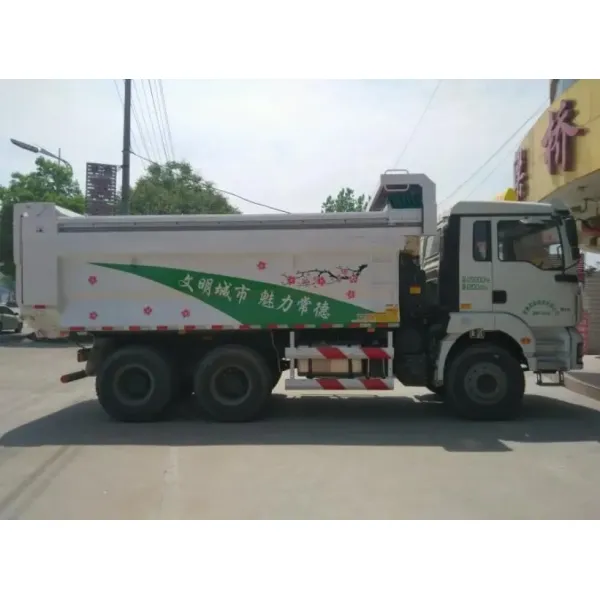

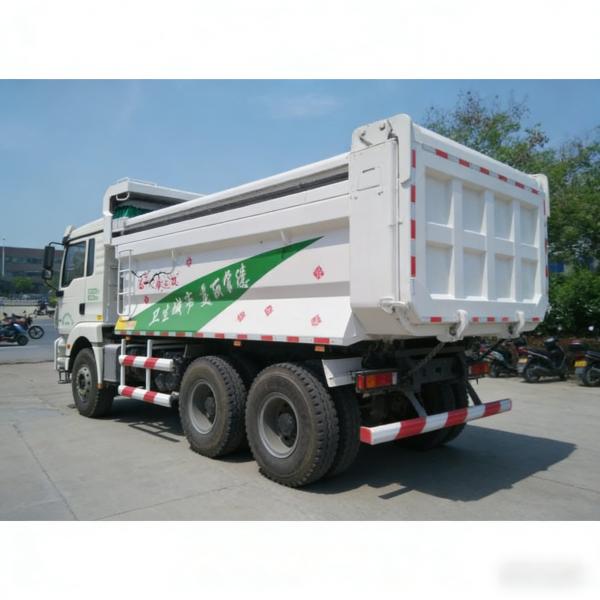

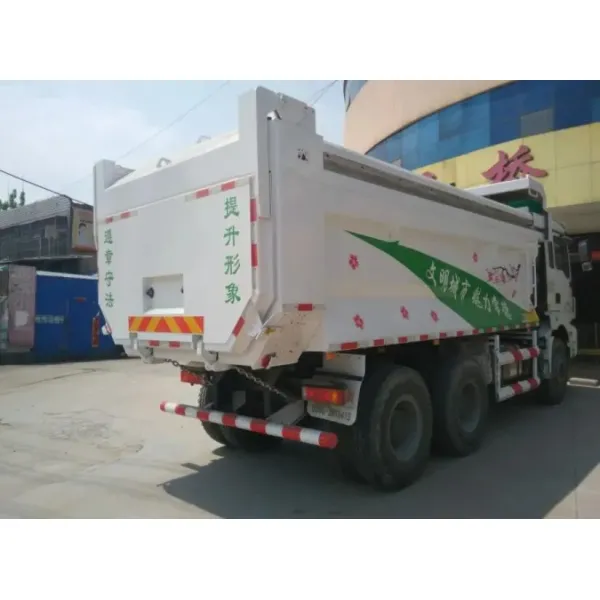

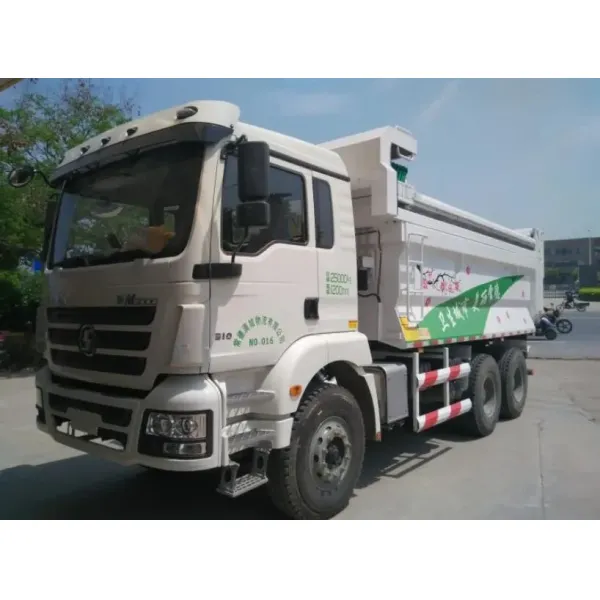

Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Shacman H3000 Dump Truck 6x4 340HP Tipper Trailer Truck Customized Color
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Name :
Shacman H3000 Dump Truck
Emission Standard :
Euro 2
HS Code :
8704230090
Load Capacity :
21-30t
Cylinder Size :
DN180
Drive Wheel :
6×4
Horsepower :
251-350hp
Other :
with A/C
Size :
8750X2500X3450mm
Tire Certification :
ECE, GCC, ISO, DOT
Trademark :
CLW
MOQ :
1
Price :
15000-35000 per unit
Specification :
30ton
Tire :
12.00r20
Dumper Size :
5400X2300X1200mm
Thickness :
8/10mm
Origin :
Suizhou, China
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Engine Capacity :
＞8L
Production Capacity :
500 Unit/Month
Engine :
340HP
Power :
Diesel
Seats :
≤5
Color :
Customized
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Dumping Type :
Front Lifting Style
Material :
Carbon Steel
Tire Design :
Tubeless
Condition :
New
Chassis Brand :
Dongfeng, HOWO. for Choice
Side :
6mm
Description
SHACMAN 6X4 H3000 340HP tipper truck
Truck Specification
Truck model SHACMAN H3000
Cab F2000 single row cab with half, with power steering. Electronic flameout
Driving Type 6x4 Left hand driving
Max Speed (km/h) 85
Overall dimension(mm) 8250x2500x3450
GVW( kg) 25000
Wheelbase(mm) 3575+1400
Tire 12.00R20
Gear box 9JSD180 10-speed
Bridge Front axle 7T
Rear axle 16T

Engine

 Model WP10.340E32(EURO 2)
Fuel Type Diesel
Type Vertical in-line, water cooling, four stroke, turbo
Exhaust(ml) 9786
Max output power(hp) 340

Braking system

 Service Brake Air brake
Park Brake Spring energy
Auxiliary brake engine exhaust brake
Electric system 24v
Cargo box specification
Size(L*W*H) 5400x2300x1200mm
Hydraulic cylinder Front lift(Φ200)
Material Q235R carbon steel
Cargo thickness(side/bottom) 8/10mm
