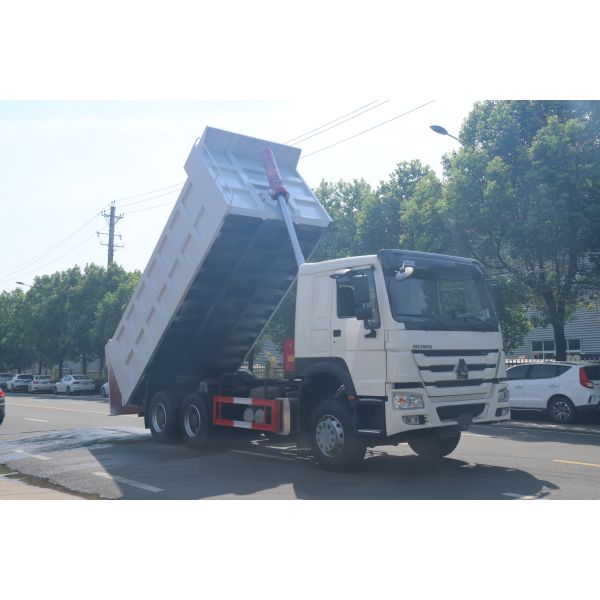

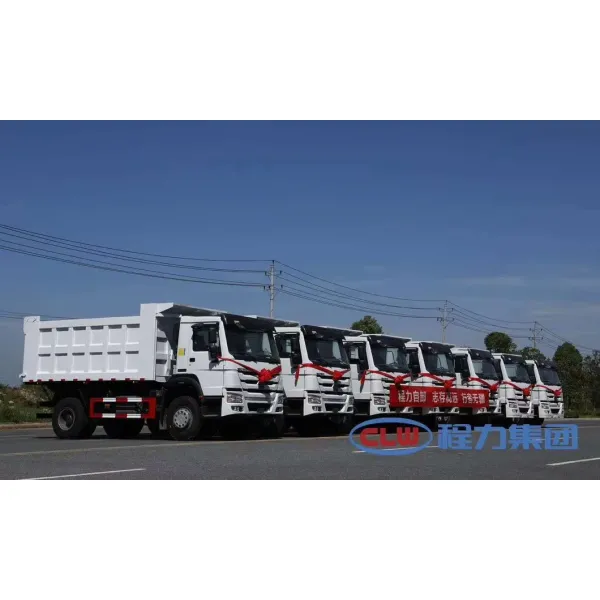

Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Sinotruck HOWO 20ton Mining Construction Tipper Truck For Mining Transportation Truck
Specifications
Drive Wheel :
8×4
Dump Material :
Carbon Steel Q235 or Q345 for Optional
Horsepower :
351-450hp
Color :
as Customer's Request
Tire :
12.22r20 or 12r22.5
Place of Origin :
CHINA
Brand Name :
CLW
Dumping Type :
Front Lifting Style
Load Capacity :
41-50t
MOQ :
1
Price :
15000-35000 per unit
Delivery Time :
35 Days
Trademark :
CLW
Engine Capacity :
＞8L
Tire Design :
Tubeless
Thickness of The Box :
Side 8mm, Bottom 10mm
Emission Standard :
Euro 3
Certificate :
ISO, CCC, BV, SGS
Production Capacity :
500pieces/Month
Condition :
New
Usage :
Transportations of Mineral, Stone, Sand, and So on
HS Code :
8705909090
Origin :
Suizhou, China
Lifting Type :
Middle Lifting, Front Lifting
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Tire Certification :
ECE, GCC, ISO
Specification :
20tons
Engine :
336HP, 371HP, 380HP
Seats :
≤5
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Name :
Tipper Dump Truck
Model NO. :
CLW0571BPI
Testing :
Products Injection Before Shipment
Warrenty :
1 Year
Description

Product description

China Sinotruck HOWO 20ton Mining Construction Tipper Truck for Mining Transportation Truck

Product description:

  • Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, FOTON, etc.
  • Tipping Model of dump truck: Front-tipping, Middle-tipping.
  • Hydraulic oil cylinder brand of dump truck: International brand HYVA or Chinese famous brand.
  • High tensile steel for dumper materia of dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
  • Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and so on.

Specification of dump truck:

Truck Specifications
Chassis BrandSINOTRUK HOWO
Drive model8x4
Loading capacity40-50tons
Overal Dimension10145x2550x3450mm

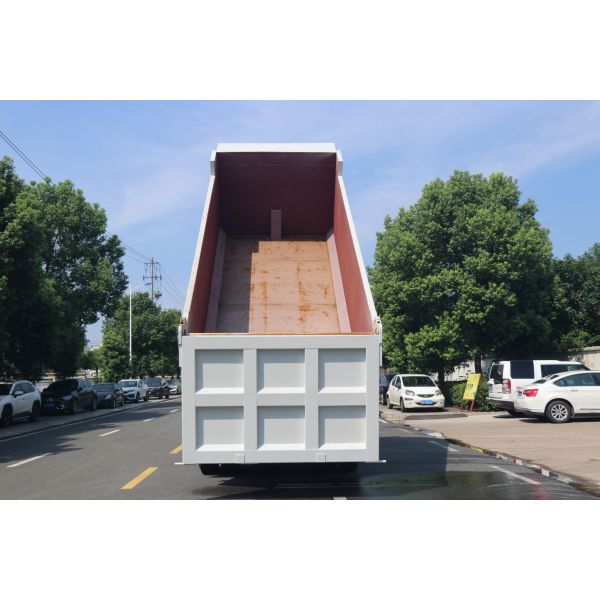

Carriage Internal Dimension5600x2300x1500mm
Dump Van Volume20m3 ( 16-21m3 for option )
Steel Thickness of CarriageBottom 10mm, Side 8mm (As Per Client's Request)
Dumper MaterialQ345B

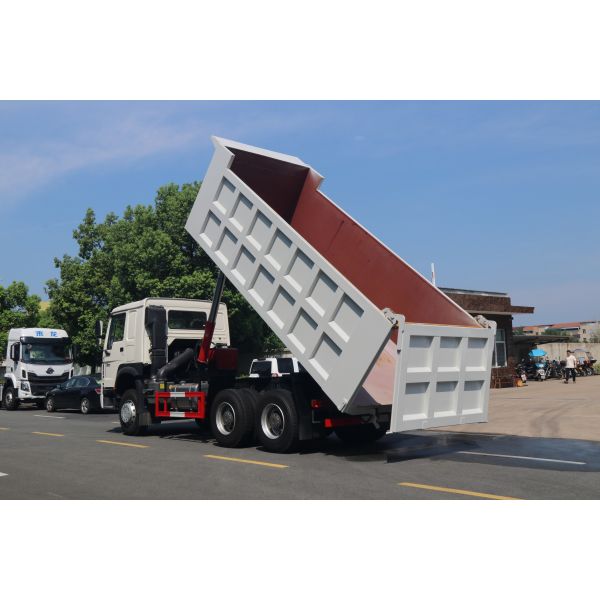

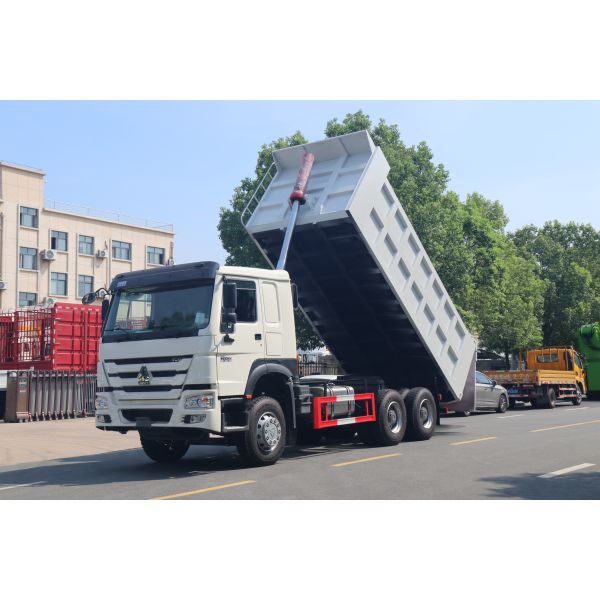

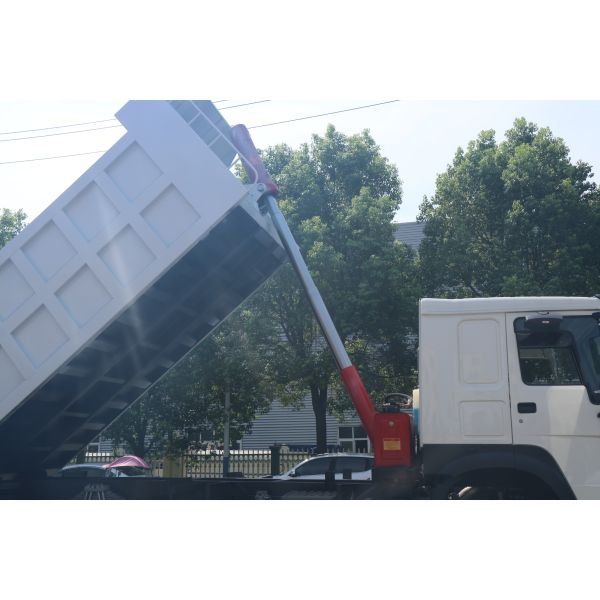

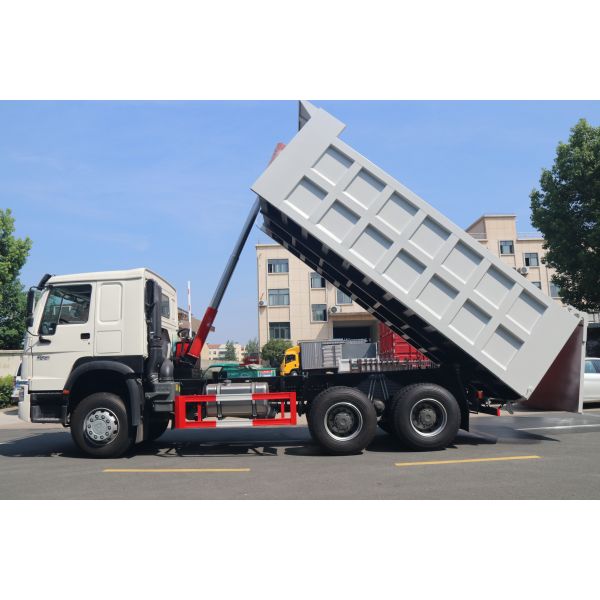

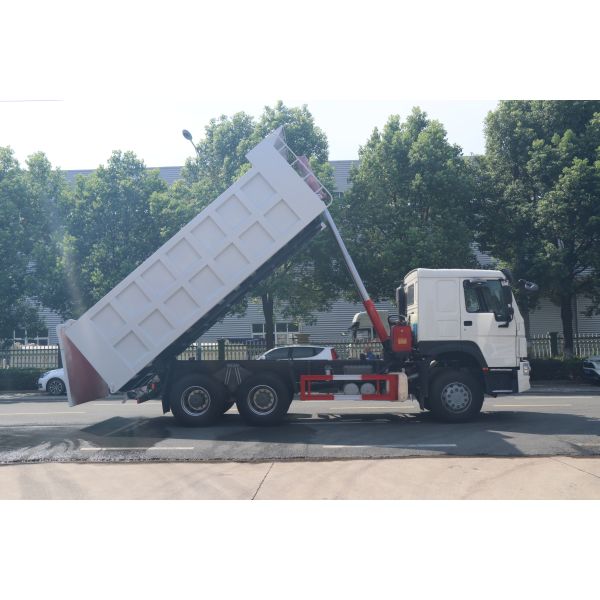

Hydraulic Lift of CarriageFront Lift (HYVA cylinder or middle lift for option )


Cabin

ModelSINOTRUK HW76 Lengthen cab
single bunk, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner




Engine

ModelD10.38-30
Manufacturing CompanySINOTRUK
Maximum output380HP
Emission standardEuro III
Number of cylinder6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse
ClutchSINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance.

Steering

ZF8118 Steering Gear Box, hydraulic steering with power assistance. (Left hand driving),
( ZF8098 RHD right hand drive for option )
Wheel Base1800+3750+1350mm
Wheels&TiresRims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. ( tubeless for option )
Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.


Rear Axle

SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.


Brake System

Service brakeDual circuit compressed air brake
Parking brake(emergency brake)spring energy,compressed air operating on rear wheels
Oil TankSquare type-300L Aluminum alloy fuel tank



Electrics

Operating voltage24V,negative grounded
Starter24V,7.5 Kw
Alternator3-phase,28V,1500 W
Batteries2x12 V,165 Ah
Lightshorn,headlamps,fog lights,brake lights,indicators and reverse light.


Performance

Maximum driving speed75 km/h
Fuel consumption35 L/100km





Options

Revolving Light on roof of cab
RHD right hand drive
Upper bodybucket shape body for heavy good,big size stones etc
U shape body bulk cargo , ore and other goods
Boat type body bulk, muck, geotechnical class
Tubeless tires12R22.5, 315/80R22.5 etc
Brake water spray
ABS, EVB engine brake
