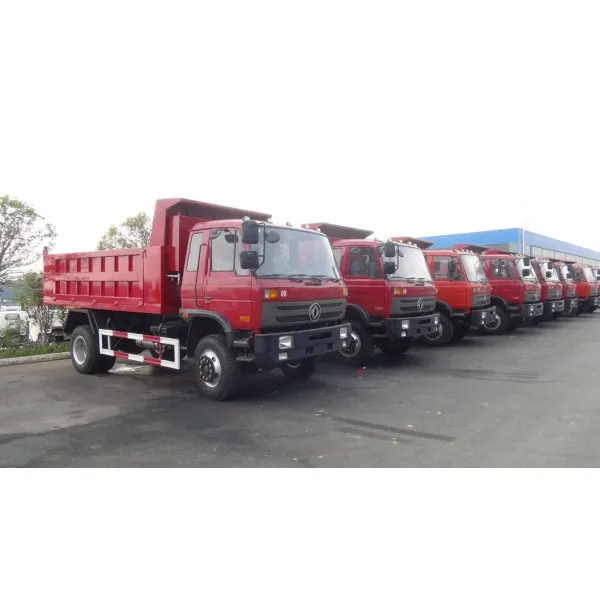

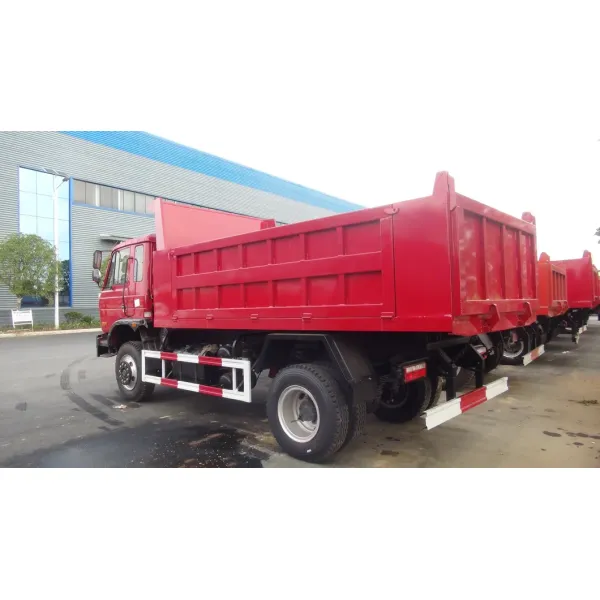

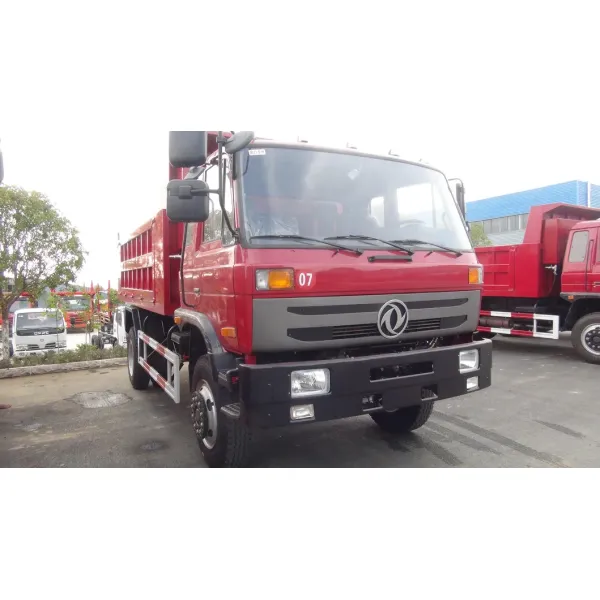

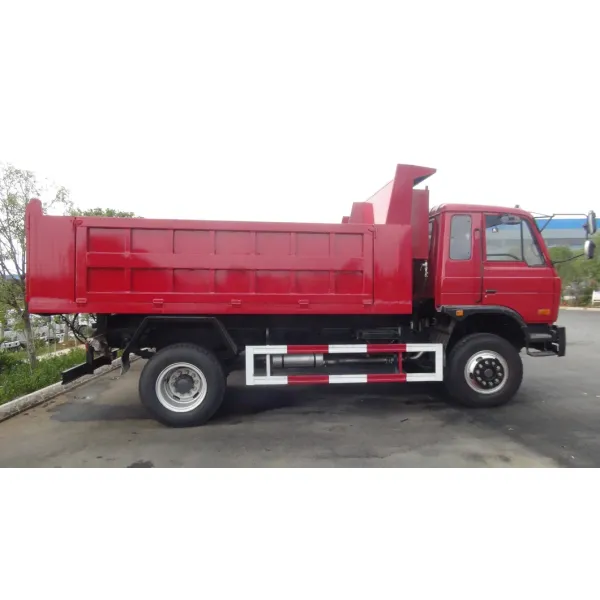

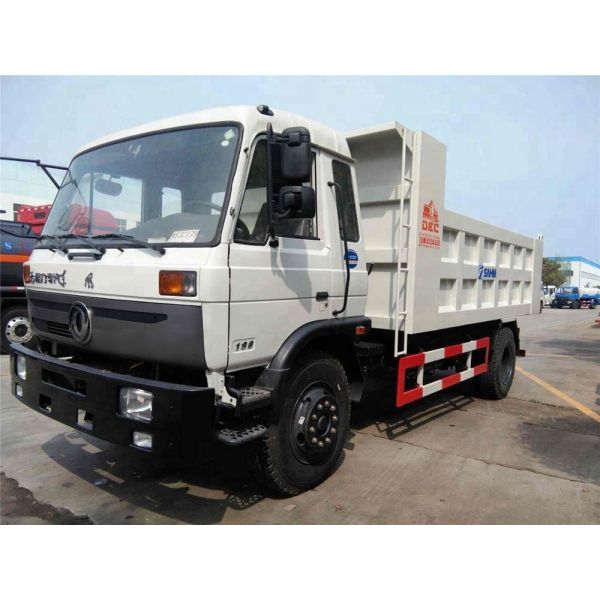

Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Dongfeng 190HP 10 Ton Tipper Truck 4X4 Transportation Dumper Truck
Specifications
Oil Cylinder Brand :
International Brand Hyva or Chinese Brand
Model NO. :
CLW6688ZXCA01
Lifting Type :
Front Tipping, Middle Tipping
HS Code :
8704230090
Place of Origin :
CHINA
Brand Name :
CLW
Tire Certification :
ECE, GCC, ISO, DOT
Thickness of Dumper :
Bottom 10mm, Side 8mm, or as Customer Request
MOQ :
1
Price :
15000-35000 per unit
Drive Wheel :
4×2
Seats :
≤5
Loading Capacity :
5tons, 8tons, 10tons, 20tons, 30tons, etc.
Dumper Material :
High Quality Q345b
Load Capacity :
1-10t
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Cabin :
2~3 Persons with A/C
Specification :
5tons, 8tons, 10tons, etc.
Emission Standard :
Euro 3
Engine Capacity :
4-6L
Tire Design :
Radial
Dumping Type :
Front Lifting Style
Condition :
New
Trademark :
CLW
Production Capacity :
500 Unit/Month
Brand :
Sinotruk HOWO FAW, Dongfeng, etc.
Color :
as Customer Request
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Power :
Diesel
Horsepower :
130HP
Tire :
Radial Tire 12.00r20 or Tubeless Tire 12r22.5
Origin :
Suizhou, China
Name :
Tipper Dump Truck
Description
Dongfeng 4X4 190HP 10ton Transportation Dumper Truck
Product Description:
  • Truck chassis brand of dump truck: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, FOTON, etc.
  • Tipping Model of dump truck: Front-tipping, Middle-tipping.
  • Hydraulic oil cylinder brand of dump truck: International brand HYVA or Chinese famous brand.
  • High tensile steel for dumper materia of dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
  • Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
Specification of dump truck:
Item unit Parameter
Product Dongfeng 4x2 dump truck
Cabin Left hand drive, without air conditioner.
Body internal dimensions mm 6640×2490×2850
Fact loading capacity kg 20000 to 25000
GVW kg 14340
Curb Weight 6835
Dump body Overall dimensions mm 4700×2300×800
Wheel base 3650
F/R track base 1340/1590
Approach/departure angle ° 30/13
Emissions / power ml/kw 4214/96, 130hp, YUCHAI Engine
Max speed km/h 85
Tire specification 9.00-20 Engine type YC4D130-33, 130hp
Traction system 4×2 transmission Fast 8JS85F
Number of axles 2 Electric system 24v
Operation control system Electrically hydraulic control Allowable passengers in cab 3

Dump body

 Size: 4200×2200×1000
Side and front thickness: 3mm, Floor thickness: 4mm.
Middle tipping;
A complete set of Chinese famous brand hydraulic system
