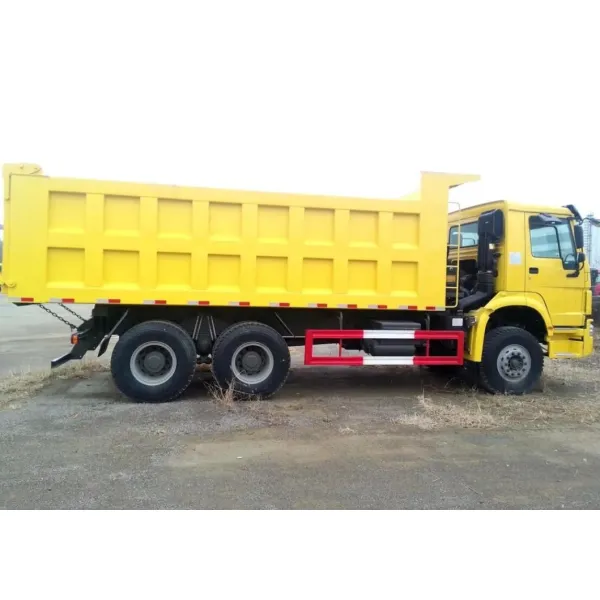

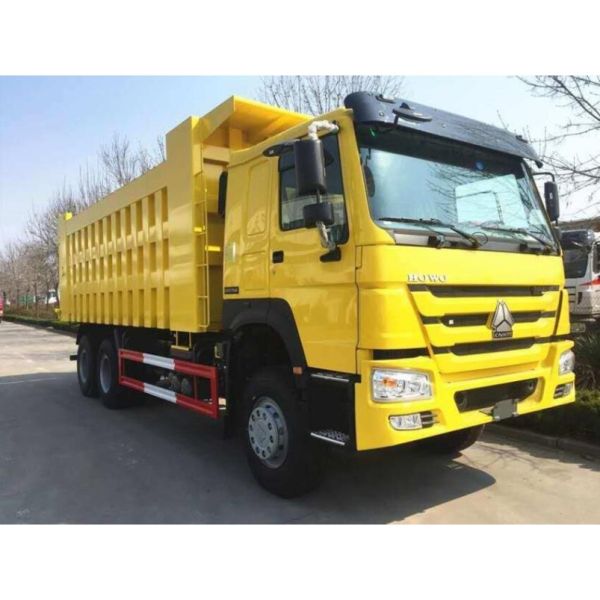

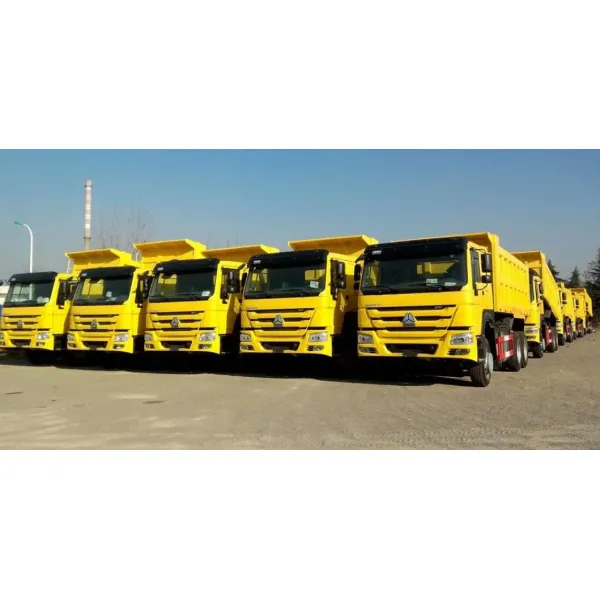

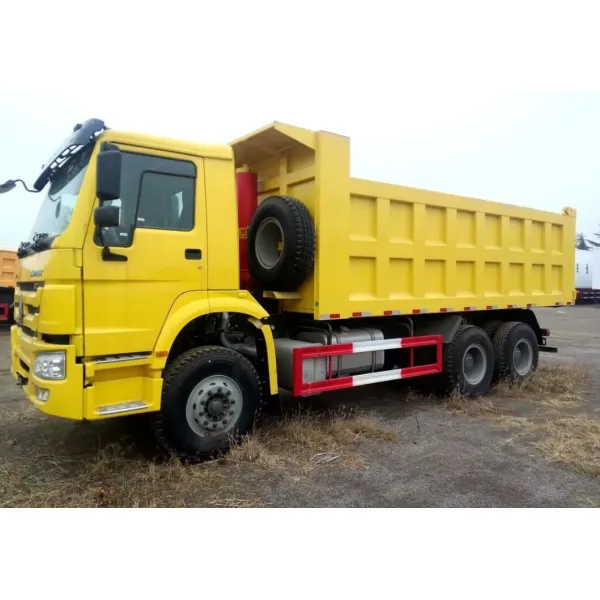

Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
MOQ :
1
Price :
15000-35000 per unit
Trademark :
CLW
Steering Wheel :
Left Hand Drive
Drive Mode :
6X4/12 Wheels; 8X4 Is Available
Material :
Carbon Steel Q235/Q345/Har-dox 450
Repaint :
as Per Customer Request
Testing :
Products Inspection Before Shipment
Specification :
8300x2500x3200mm
Power :
Diesel
Delivery Time :
30-40days
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Seats :
3 Seats
Oil Cylinder Brand :
China Local Brand; Hyva Brand
Drive Wheel :
6×4
Wheelbase :
3775+1440 mm; 3800+1350 mm; 4300+1400 mm;
Manufacturing Year :
New Condition
Load Capacity :
31-40t
Model NO. :
CLW5369oc
Horsepower :
351-450hp
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Emission Standard :
Euro 2
Tire Design :
Tubeless
HS Code :
8704230090
Condition :
New
Side Plate Thickness(mm) :
10.0mm; 8.0mm; 6.0mm
Production Capacity :
500 Unit/Month
Usage :
Transportation of Mineral,Stone,Sand and So on
Name :
Tipper Dump Truck
Engine Capacity :
＞8L
Tire Certification :
ISO
Dumping Type :
Middle and Front Tipping
Bottom Thickness(mm) :
12.0mm; 10.0mm; 8.0mm
Origin :
Suizhou, China
Description
Sinotruk Howo Dumper Truck 6x4 336 371 10 Wheeler 40Ton Tipper Truck Dump Truck with low price
Product Description
  1. Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,FOTON...
  2. Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
  3. High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.
  4. Used in construction site for transportation of mineral,stone,sand and so on.
Specification
ConditionNew condition/Left hand drive/6X4 drive model/SINOTRUK HOWO









Chassis




Weight in kg

Curb weight(Including upper weight)12,110
Loading weight30,000
Gross weight41,000
Front axle loading capacity9,000
Rear axle loading capacity16,000x2



Dimensions in mm

Wheelbase3800+1350
Overall Dimension8300*2496*3450
Approach angle(o)19
Departure angle(o)17
Front axleHR9; Steering with double T-cross section
Rear axleAC16; Pressed axle housing, central single reduction and differential locks between axles; Ratio: 4.11
ClutchSingle- plate dry diaphragm spring clutch
BrakesAir brakes
SteeringZF8118
Wheel & TypesRims8.5-20,10 hole-steel
Types12R22.5 with one spear tire, 11 pcs in total
TransmissionModel HW19710, 10 forward and 2 reverse, with PTO
CabinHW70/HW76




Engine

MakeSINOTRUK
ModelWD615.47
Description4 stroke direct injection diesel engine
6 cylinder in-line with water cooling, turbo-charging & intercooling
Displacement(ml)9726 ml
Power371HP
Upper




Box

TypeU-type
Size(mm)16CBM; 5400*2300*1300 mm
Max. Loading weight(kg)30tons-35tons
Button Thickness(mm)6.0 mm
Side plate Thickness(mm)4.0 mm
MaterialHar-dox 450/NM 450
Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck Sinotruk Howo 6x4 Dump Truck 336 371 10 Wheeler 40 Ton Tipper Truck
