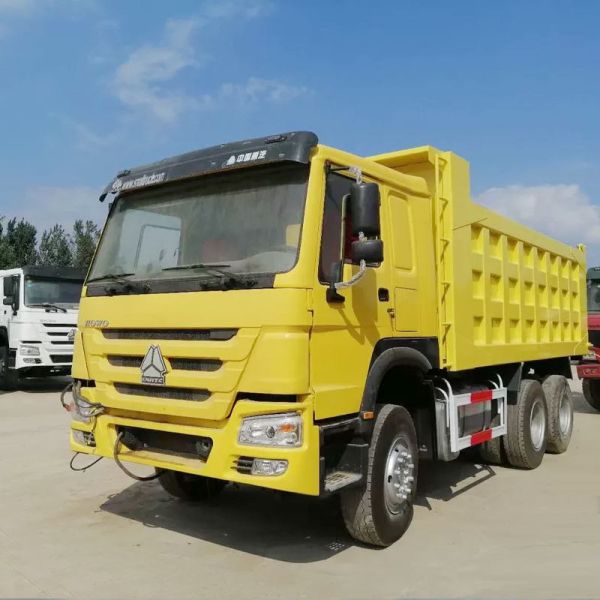

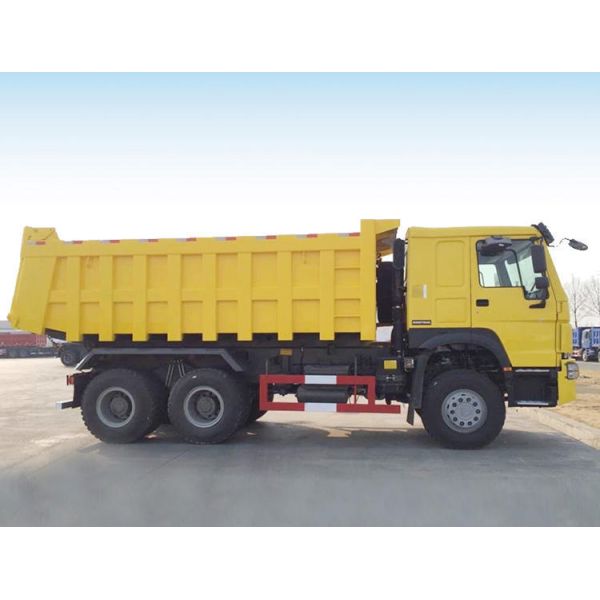

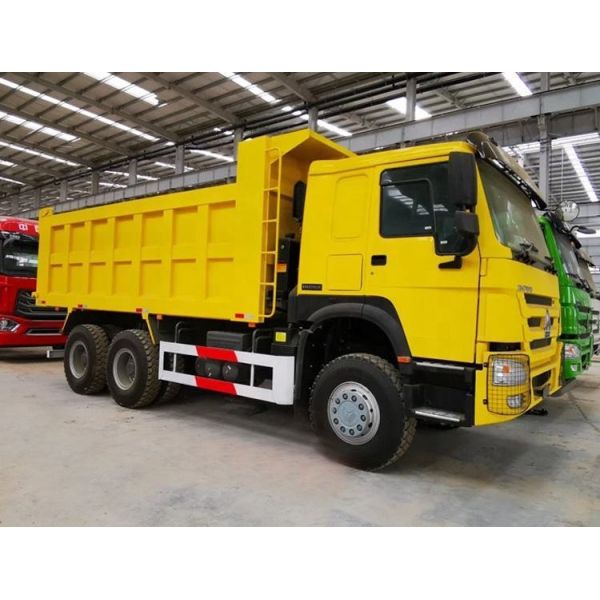

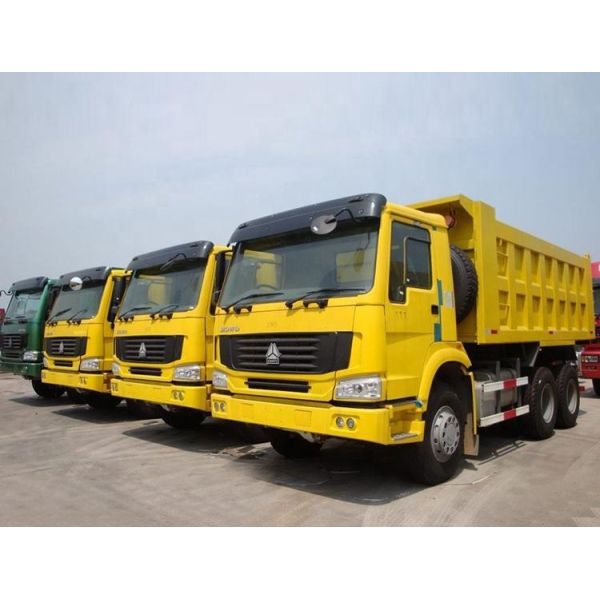

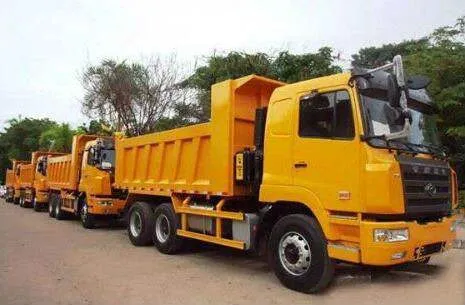

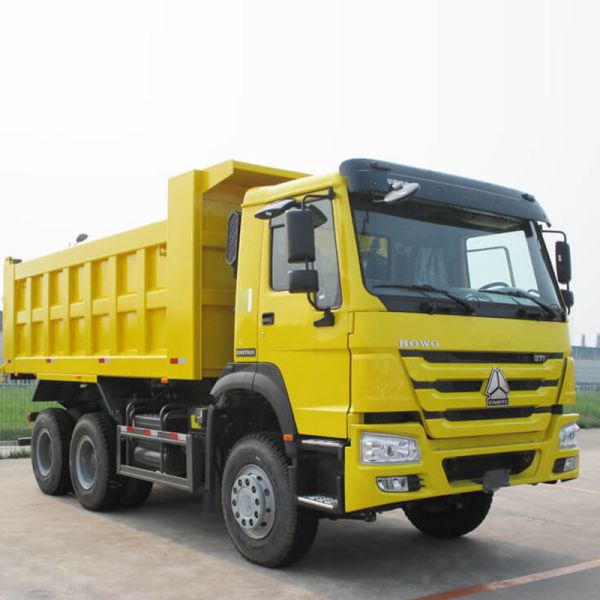

Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Sinotruck HOWO Camc Dump Truck , 6X4 Tipper Truck 371HP 273kw
Specifications
Place of Origin :
CHINA
Brand Name :
CLW
Condition :
New
Trademark :
CLW
MOQ :
1
Price :
15000-35000 per unit
Power :
Diesel
Emission Standard :
Euro 2
Tire :
Radial Tire 12.00r20 or Tubeless Tire 12r22.5
Horsepower :
351-450hp
Tire Design :
Tubeless
Production Capacity :
500pieces/Month
Transport Package :
Naked, Waxed, Bulk Ship, RO-RO
Color :
as Customer's Request
Dumping Type :
Front Lifting Style
Engine Capacity :
＞8L
Tire Certification :
ECE, GCC, ISO
Oil Cylinder Brand :
International Brand Hyva or Chinese Brand
Transmission Type :
Manual
Load Capacity :
31-40t
Seats :
≤5
HS Code :
8705909090
Drive Wheel :
6×4
Delivery Time :
35 Days
Engine :
336HP, 371HP, 380HP
Wheelbase :
3800+1350mm, 4300+1400mm
Model Number :
CLW
Payment Terms :
50% Deposit,Balance should be paid before ship out
Supply Ability :
10unit per month
Model NO. :
CLW53506435ZX
Usage :
Transportation of Mineral, Stone, Sand and So on.
Lifting Type :
Middle Lifting, Front Lifting
Warrenty :
1 Year
Origin :
Suizhou, China
Thickness of The Box :
Side 8mm, Bottom 10mm
Cabin :
3 Person with A/C
Name :
6x4 Tipper Truck
Testing :
Products Inspection Before Shipment
Specification :
8860x2500x3450mm
Description
Product description
Sinotruck HOWO Camc 6X4 Dumper Construction Tipper Vehicle Dumping Tipper Truck
Product description:
  • Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, 1SUZU, FOTON, etc.
  • Tipping Model: Front-tipping, Middle-tipping.
  • Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
  • High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
  • Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
Specification of dump truck:
Condition New condition/Left hand drive/6x4

Chassis

 Brand CAMC
Curb weight(kg) 12000 kg
Axle loading(Front/Rear)(kg) 7000/13000/13000 kg
Wheelbase(mm) 3600+1350 mm
Dimensions(mm) 8300*2500*3500 mm
Wheel track (front/rear) (mm) 2036/1860/1860 mm
Front/Rear overhang(mm) 1525/1660 mm
Approach/Departure angle(°) 28/18
Max. driving speed(km/h) 85 km/h
Clutch Reinforced diaphragm clutch
Fuel tank volume(L) 300 L

Brakes

Service brake: dual circuit compressed air brake.
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels.
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 10pcs with one spare tire
Specifications 12R22.5
Transmission Manual type, 10 Forwards and 2 reverses
Cab It can accommodate three people, With Air conditioner.

Engine

 Brand CAMC
Fuel type Diesel
Power(kw) 283kw
Horsepower(HP) 385HP
Cylinder number 6
Emission standard Euro 2

Upper

 Size(mm) 5400*2300*1500 mm
Max. Loading weight(kg) 25-40 tons
Button Thickness(mm) 8.0 mm
Side plate Thickness(mm) 6.0 mm
Material Q235 Carbon steel
Tipping type Front Tipping
Oil cylinder brand China local brand
Oil cylinder size(mm) 220 mm
Remarks 1. Color is optional
