UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System
UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System
UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System
UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System
Specifications
Brand Name :
Hincn Limited
Model Number :
HCL620
Place of Origin :
China
MOQ :
1 set
Price :
US$1,969~3,569
Payment Terms :
L/C,D/P,D/A,T/T,Western Union
Supply Ability :
1,999 sets
Delivery Time :
5~8 working days
Packaging Details :
carton package
Video Input :
Ethernet/HDMI/SDI/AHD/AV
Rf Transmissioin Power :
10W
Transmission range :
10km~150km
FHSS :
Support
Encryption :
AES128
Bandwidths :
3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Description

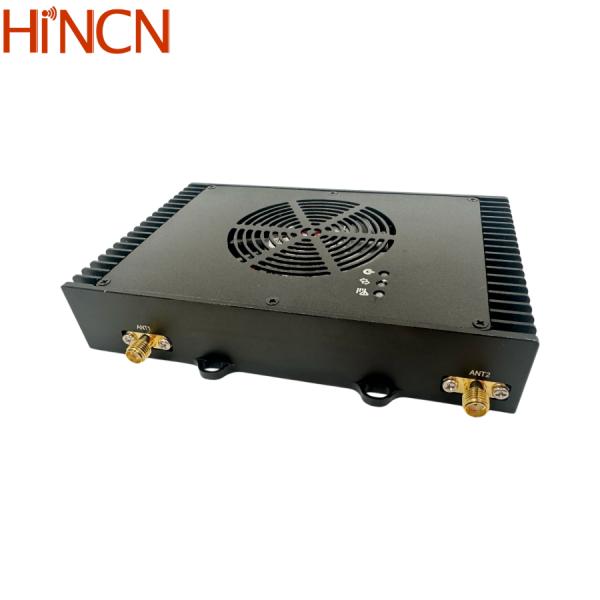

UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System

The HCL620 uses MIMO dual transmission and hybrid mesh networking technology to deliver stable, high-speed video and data links in complex environments.

Technical Specifications
Radio
Frequency1420~1530MHz (customizable)
Bandwidth3/5/10/20/40MHz
RF Power10W×2
ModulationOFDM
ConstellationBPSK; QPSK; 16QAM
DuplexTDD
ThroughputUp to 100M bps
EncryptionAES128
Power
Air Unit10W×2
Ground Unit10W×2
Size and Weight
Air Unit131×93.7×24.8mm / 277g
Ground Unit131×93.7×24.8mm / 277g
Connectivity
AntennaSMA×2
Video InterfaceEthernet×2
Other Interface2×TTL/RS232, S.bus
Environment
Working Temperature-40°C~60°C

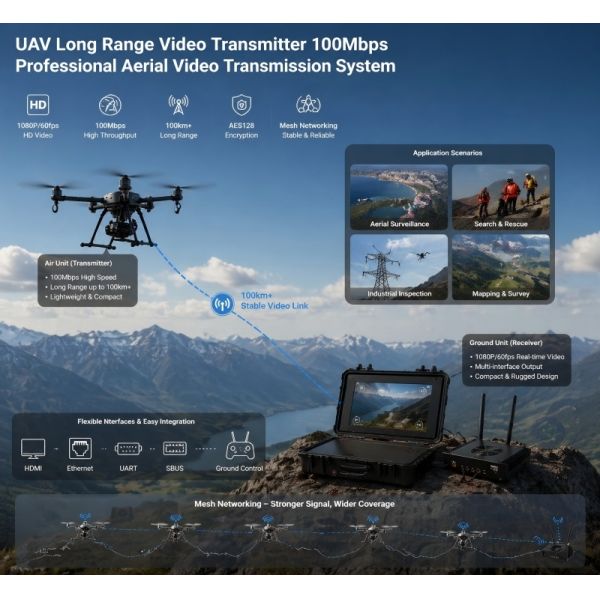

Applications

This UAV Long Range Video Transmitter is widely used in:

  • Aerial surveillance
  • Search & rescue
  • Industrial inspection
  • Mapping & survey
UAV Long Range Video Transmitter 100Mbps Professional Aerial Video Transmission System
Frequently Asked Questions
Q1. Can I get a sample order for this UAV video transmitter?
A1: Sure, welcome sample order for testing.
Q2. Does this UAV video transmitter support any other cameras except IP camera?
A2: IP camera video can be connected directly via Ethernet port. HDMI/SDI/AHD/AV camera video requires encoding with our SE10/SE11 encoder before connecting to HCL620 via Ethernet.
