TDD duplex UAV Video Transmitter With 100km Long Distance Wireless Data Link

Quick Detail:

• TDD OFDM full duplex wireless UAV video transmitter for video data link.
• Up to 30Mbps Iperf Throughput @20MHz channel.
• Supports point to point, point to multipoint networks or Mesh network.
• Interface through web browser or control uart.

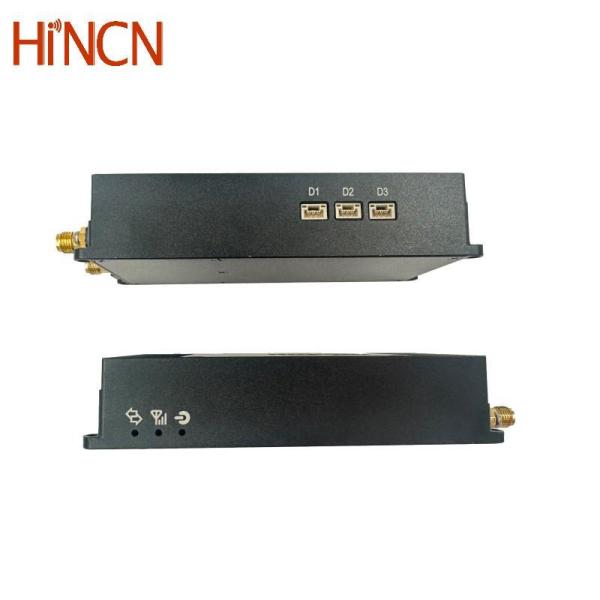

• 2 Ethernet and 3 channel uart for Drone/ UAV data link.
• 22km~100km long range video data transmission.
• 2W or 5W RF power output

Description:

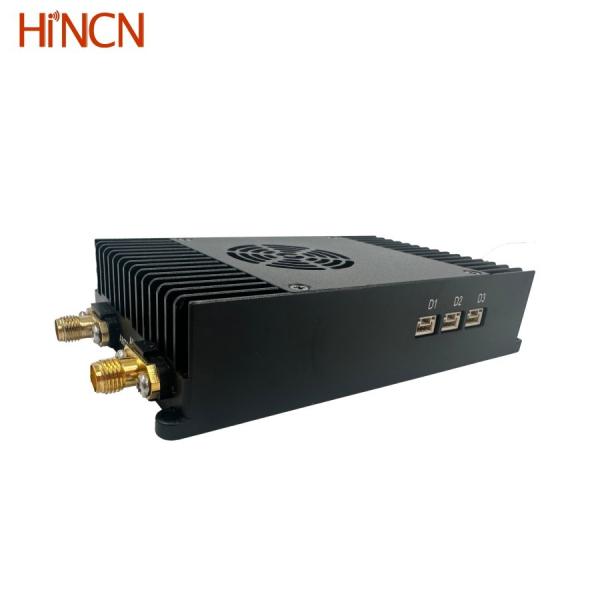

HCL536 UAV video transmitter is specifically designed for video data wireless transmission with two-way wireless data link.It works at 800MHz or 1.4GHz bands, with frequency hopping technology (FHSS) to make sure more stable signal transmission.

Specifications:

Wireless Networking with HCL536:

HCL536 UAV video transmitter supports 2 operate modes: Access Node or Central Node. It can be managed through web UI.

It supports connecting up to 16 access nodes to a central node.All the nodes are within the same wireless local area network and share the entire transmission bandwidth (maximum 30Mbps@20MHz throughput).

Data from Central Node to Access Node, we call downlink, and data from Access Node to Central Node, we call uplink. Uplink and downlink stream ratio can be controlled through web UI.

When using HCL536 UAV video transmitter for Point-to-Point transmission, uplink and downlink share the whole transmission bandwidth (maximum 30Mbps@20MHz throughput) too. HCL536 supports network mode: point to point, point to multipoint, relay, and Mesh (specify mesh version when place order).

Point to Point network:

Point to Multipoint networking type

Relay networking type

Mesh networking type (Specify)

Application:

FAQ

Q1. It seems to support IP camera, how about I want HDMI or SDI video intput?

A: Yes, the default video input is IP RJ45 Ethernet port, if your camera only has HDMI, SDI, AHD or AV output, our mini encoder device can encode the video and audio signal into digital data for transmission. For the receiver end, you can connect it directly to your computer or NVR. If you want output to an HDMI monitor, our decoder device can help convert the digital data back into HDMI video and audio signals.
