AES 256 Encrypted COFDM UAV Video Transmitter With 1W 2W 5W PA Power Amplifier Output
AES 256 Encrypted COFDM UAV Video Transmitter With 1W 2W 5W PA Power Amplifier Output
AES 256 Encrypted COFDM UAV Video Transmitter With 1W 2W 5W PA Power Amplifier Output
AES 256 Encrypted COFDM UAV Video Transmitter With 1W 2W 5W PA Power Amplifier Output
Specifications
Brand Name :
Hincn
Model Number :
HCT820+ HCR800
Place of Origin :
China
MOQ :
1 pc
Price :
US$985~US$1,285
Payment Terms :
,T/T,Western Union,MoneyGram,L/C,D/A,D/P
Delivery Time :
7~14 working days
Supply Ability :
788 sets/ month
Packaging Details :
carton package
Wireless (De) modulation :
COFDM
Transmission power :
1W(30dBm) or 2.5W(34dBm)
Frequency :
160MHz~860MHz
Encryption :
AES256
Video encode :
H265/H264
Video input :
HDMI or CVBS
Description
AES 256 Encrypted UAV Video Transmitter With 1W 2W 5W PA Power Amplifier Output
Key Features
  • COFDM modulation technology
  • H265/H264 video encoding supporting up to 1080P/I @60fps
  • AES256 encryption
  • Non-line-of-sight transmission capability at speeds up to 800km/h
  • Fully configurable center frequency, wireless bandwidth, and transmission stream
Product Overview

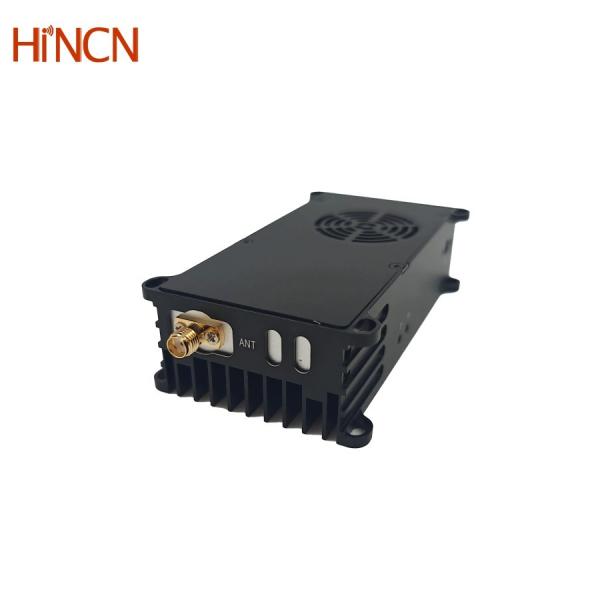

The HC-T820 high definition digital UAV video transmitter features a built-in encoder board, COFDM modulator module, and mini 1W/2W/5W power amplifier. Encased in CNC aluminum alloy, it offers compact dimensions, lightweight construction, high resolution, and extended transmission range.

Technical Specifications
Interfaces
Model Number HCT820
HD Video Input Standard HDMI interface
SD Video Input 4PIN 1.5mm pitch connector (CVBS Analog Audio Video Input)
Data Transmission 3PIN 1.5mm pitch connector (default TTL3.3V level, RS232 optional)
Configuration Port 4PIN 1.5mm pitch connector (TTL3.3V)
Power Input XT30PW-M connector (12V Power Supply)
Antenna Port SMA male
COFDM Wireless Modulation Transmission
Wireless Modulation COFDM
IFFT Mode 2K
Wireless Bandwidth 1MHz~8MHz adjustable (1KHz step)
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Constellation QPSK, 16QAM, 64QAM
Wireless Code Stream 0.5Mbps to 31.67Mbps
Frequency Range 300~860MHz (customizable with 1KHz steps)
Transmission Power 1W (30dBm) or 2.5W (34dBm), optional 10W/20W
Audio and Video Processing
Video Input Auto-detected HD or SD (HDMI preferred)
Supported Formats 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@50I, 1080@30I, 720@60P, 720@50P, 720@30P, NTSC, PAL
Video Encoding H265/H264
Audio Input HDMI embedded or analog
Audio Format AAC, 16bit, stereo, 32Kbps
Encryption AES256
Dimensions 104.5 × 50 × 27mm (excluding connectors)
Weight < 140g
Power Requirements DC 12V (11~13V), <15W for 1W PA, <23W for 2.5W PA
Latency H265: 200~300ms; H264: 50~130ms
HC-T820 Video Transmitter Interface
AES 256 Encrypted COFDM UAV Video Transmitter With 1W 2W 5W PA Power Amplifier Output
Recommended COFDM Wireless Receiver
AES 256 Encrypted COFDM UAV Video Transmitter With 1W 2W 5W PA Power Amplifier Output
Receiver Key Features
  • COFDM demodulation with H.264 video decoding
  • Full HD resolution (1080P@60fps)
  • AES decryption for security
  • DVR recording via Micro SD card or USB disk
  • Built-in RTSP server for Ethernet video streaming
  • USB host support for remote device streaming
  • OSD mode for on-screen display characters
  • Stable NLOS and high-speed mobile performance
  • Adjustable working frequency and bandwidth
