Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
Specifications
Brand Name :
Hincn
Model Number :
HCL553
Place of Origin :
China
MOQ :
1 set
Price :
US$2,698.00~US$2,898.00
Payment Terms :
,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability :
1,899pcs/month
Delivery Time :
7~14 working days
Packaging Details :
carton package
Modulation :
TDD OFDM/ COFDM
RF power :
10W
Frequency :
1428~1468MHz,1420~1530MHz
Management :
Web UI and Control Uart
RF Transmission range :
Up to 150km
OEM/ODM :
Support
Description
Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
Product Overview

The HCL553 UAV video transmitter is engineered for long-range wireless video and data transmission with bidirectional communication capabilities. Operating in the 1.4GHz frequency bands and featuring frequency hopping spread spectrum (FHSS) technology, it ensures stable and reliable signal communication for demanding UAV applications.

Key Features
  • TDD OFDM wireless video transmitter/receiver for UAV video data transmission
  • Maximum 30Mbps Iperf Throughput at 20MHz bandwidth
  • Support for point-to-point and point-to-multipoint networking
  • Long-range transmission up to 150km with 10W RF power amplifier
  • Frequency hopping spread spectrum (FHSS) technology for anti-jamming capability
  • OEM/ODM wireless video transmission solutions
Technical Specifications
Model Number HCL553
Product Name Ethernet/AV/HDMI/SDI Input Video Transmitter For 150km UAV Video Data Transmission
Modulation TDD OFDM
Frequency 1428~1468MHz, 1420~1530MHz
FHSS Support
Bandwidths 1.4/3/5/10/20MHz
Throughput Maximum 30Mbps@20MHz
RF Transmission Power 10W (40~42 dBm)
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -108dBm (1Mbps)
Ethernet Ports 2 * Ethernet ports
Serial Ports 3 channels, RS232/TTL/Sbus optional
Transmission Range Maximum 150km (UAV to Ground)
Control By Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay
Movement Speed Support no less than 300km/h
Power Input 24~30V, 28V as default
Power Consumption <28W (RF Power 10W)
Dimensions 118.5 * 61.4 * 29mm
Weight 232g

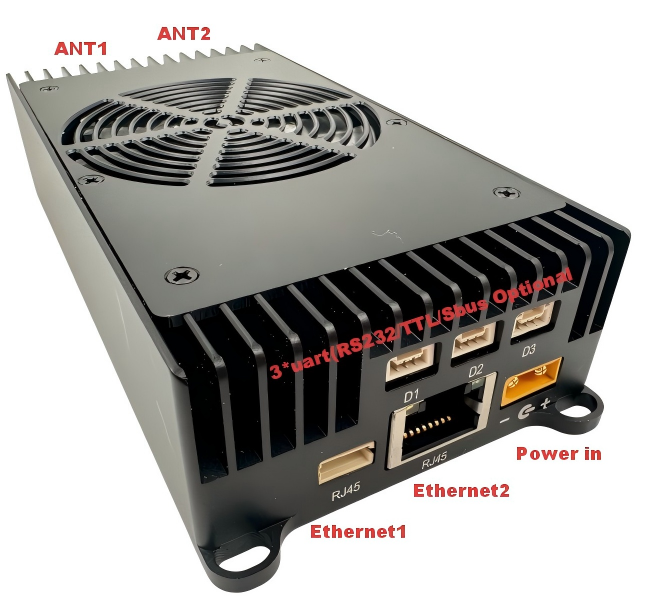

Input/Output Ports
Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
I/O Description
Ethernet 1 4Pin ZH1.5mm connector, bridged with Ethernet2
Ethernet 2 RJ45 connector, bridged with Ethernet1
Uart*3 3Pin GH1.25mm lockable connector*3, 3 channel uart, RS232/TTL/Sbus optional
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Rx Antenna port, SMA female
Multiple Networking Types
Point to Point Networking
Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
Point to Multipoint Networking
Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
Relay Network
Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
Frequently Asked Questions
Q1. This UAV video transmitter seems to support IP camera, what if I want to use a camera with AV/HDMI or SDI video output?

Yes, the default video input is IP RJ45 Ethernet port. If your camera only has HDMI, SDI, AHD or AV output, you need to purchase our mini encoder device to encode the video and audio signal into digital data for transmission. At the receiver end, you can connect it directly to your computer or NVR. If you want to output to an HDMI monitor, you can also purchase our decoder device to convert the digital data back into HDMI video and audio signals.

Ethernet AV HDMI SDI Input Video Transmitter For 150km UAV Video Data Transmission
