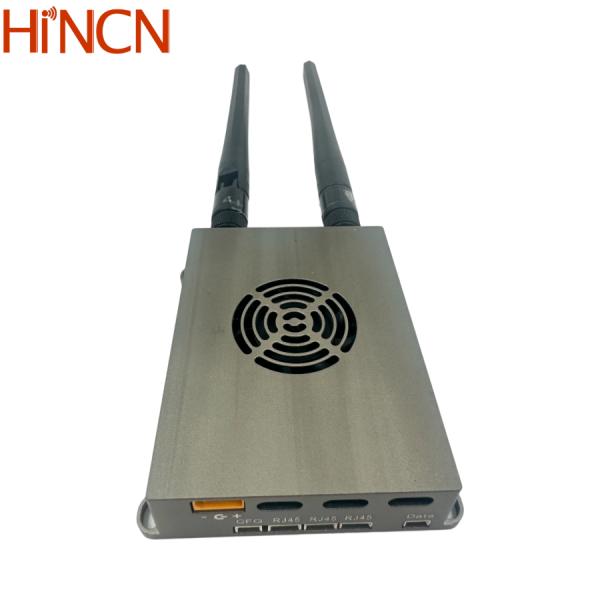

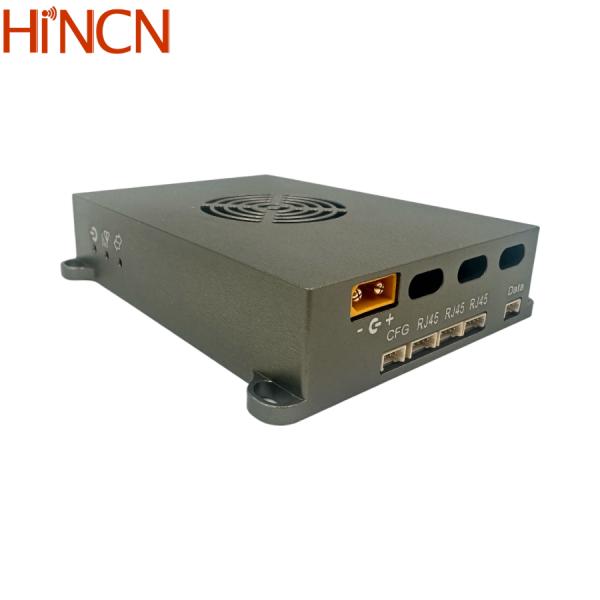

Full Duplex OFDM UAV Video Data Link | 20KM Wireless HDMI Video & Two-Way Control Transmission
Full Duplex OFDM UAV Video Data Link | 20KM Wireless HDMI Video & Two-Way Control Transmission
Full Duplex OFDM UAV Video Data Link | 20KM Wireless HDMI Video & Two-Way Control Transmission
Full Duplex OFDM UAV Video Data Link | 20KM Wireless HDMI Video & Two-Way Control Transmission
Specifications
Model Number :
HCL601
RF Power :
300mW *2( Each 300mW of the 2 antennas)
Supply Ability :
1,739pcs/month
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
OEM& ODM :
Support
Delivery Time :
7~14 working days
Place of Origin :
China
Sensitivity :
-102dBm(1Mbps at 20MHz)
Price :
US$1,168~US$1,248
Packaging Details :
Canned and packaged in cardboard boxes
Bandwidths :
3/5/10/20/40MHz
Brand Name :
Hincn
Frequency :
566~678MHz or 1420~1530MHz
MOQ :
1 set
Power input :
7~18V
Description
Full Duplex OFDM UAV Video Data Link | 20KM Wireless HDMI Video & Two-Way Control Transmission

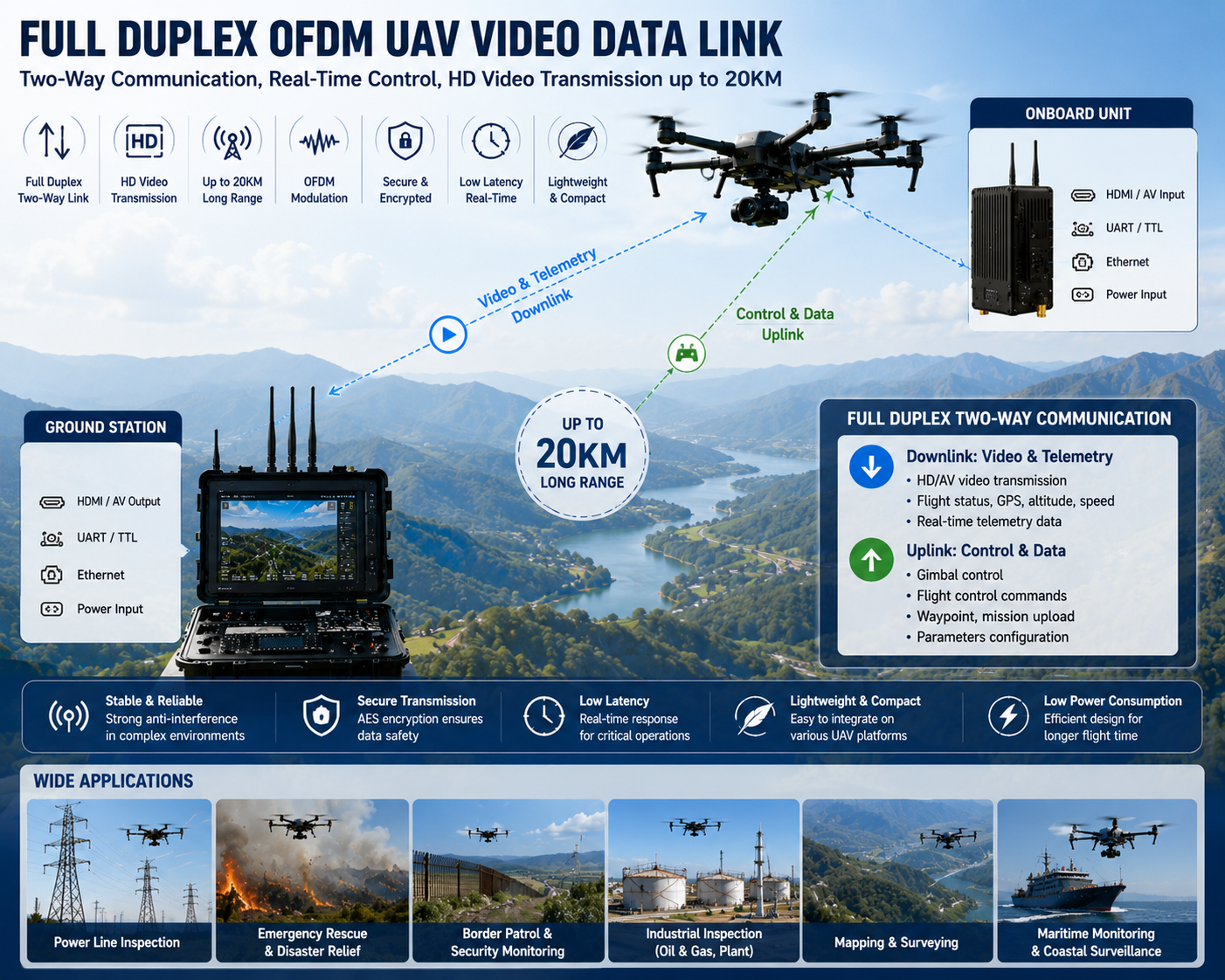

This next-generation UAV video data link integrates full duplex wireless communication with stable HD video transmission, delivering a powerful solution for long-range drone operations. Designed with advanced OFDM technology, the system ensures reliable, low-latency video and simultaneous bidirectional data control over distances up to 20KM.
Unlike traditional one-way transmitters, this full duplex OFDM transmitter enables real-time interaction between the ground station and UAV, making it ideal for applications requiring both video feedback and command control.
Key Features
  • Full Duplex Two-Way Communication - Supports simultaneous uplink and downlink for video, telemetry, and control signals
  • Up to 20KM Long Range Transmission - Optimized for UAV missions requiring extended coverage and stable signal performance
  • OFDM Digital Modulation - Ensures strong anti-interference capability and robust performance in complex RF environments
  • IP+HDMI + AV Input Compatibility - Flexible integration with various camera systems for HD and analog video sources
  • Low Latency Real-Time Video - Provides smooth, near real-time video transmission for precise drone operation
  • Secure & Encrypted Transmission - Built-in encryption protects sensitive video and control data
  • Compact & Lightweight Design - Easy to install on UAV platforms with efficient power consumption
Typical Applications
  • Drone aerial photography and live broadcasting
  • Security surveillance and reconnaissance
  • Emergency rescue and disaster assessment
  • Industrial inspection (power lines, pipelines)
  • Border patrol and maritime monitoring
Full Duplex OFDM UAV Video Data Link | 20KM Wireless HDMI Video & Two-Way Control Transmission
Technical Specifications
Model number HCL601
Modulation TDD OFDM
Frequency 566~678MHz and 1420~1530MHz
Bandwidths 3/5/10/20/40MHz
Throughput Maximum 100Mbps
RF transmission Power 300mW *2 (Each 300mW of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet ports
Serial data transmission 1 channel RS232 or TTL
Transmission range 1~2km (ground to ground), 5~22km (UAV to ground)
Management Through Web UI or Control uart
Encryption AES128-bit encryption
Network mode Point-to-Point, Point-to-Multipoint, Relay, and Mesh (specify)
Movement speed Support maximum 120km/h
Power input 7~18V
Power consumption <8W
Dimensions 83.7*61.4*19 mm
Weight 98g
Full Duplex OFDM UAV Video Data Link | 20KM Wireless HDMI Video & Two-Way Control Transmission
Advantages & Use Cases
  • Full duplex UAV video transmitter
  • Wireless HDMI drone video link 20km
  • OFDM video data link for UAV
  • Long range drone control and video system
Its combination of two-way communication + HD video transmission makes it a competitive solution for professional UAV operators seeking reliability, flexibility, and secure connectivity.
