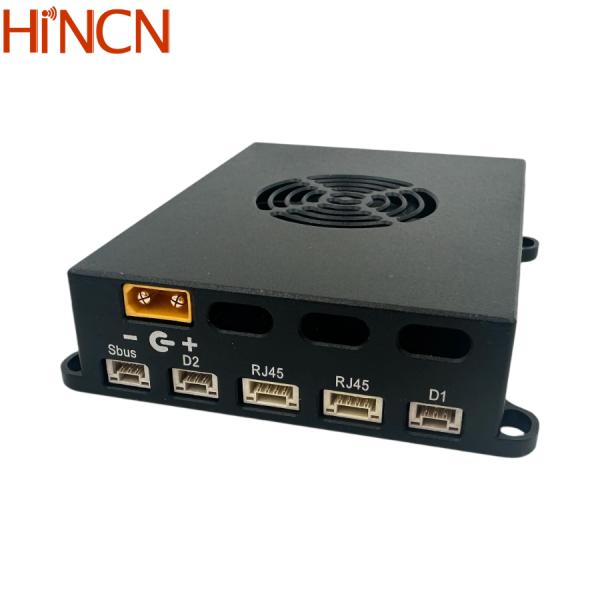

1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
Specifications
Model Number :
HCL601-300mW*2
Supply Ability :
1,499sets/month
Bandwidths :
3/5/10/20/40MHz
RF Transmissioin Power :
300mW
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Throughput :
Maximum 100Mbps
Delivery Time :
7~14 working days
Frequency :
566~678MHz,1420~1530MHz
Place of Origin :
China
Price :
US$989.00~US$1,069
Packaging Details :
carton package
Sensitivity :
-102dBm
Modulation :
TDD OFDM
Brand Name :
Hincn
MOQ :
1 set (2 pcs)
Description
1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
The 1.4GHz UAV FPV Video Transmitter is a high-performance long-range wireless video transmission system designed for professional drone applications. It provides stable, low-latency HD video streaming up to 10KM range, ensuring reliable communication for FPV pilots, UAV operators, and industrial drone missions.
Built with advanced RF design and anti-interference technology, this system delivers smooth real-time video even in complex electromagnetic environments, making it ideal for both commercial and professional UAV operations.
1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
Optimized for Long Range FPV Drone Missions
Unlike standard analog FPV systems, this 1.4GHz UAV video transmission link is engineered for extended range and improved penetration capability. It maintains stable signal quality over urban, rural, and semi-obstructed environments, significantly improving flight safety and control accuracy.
Key Features
  • 1.4GHz frequency band optimized for long-range UAV communication
  • Stable transmission distance up to 10KM (line of sight)
  • Low latency real-time HD video output
  • Strong anti-interference and anti-noise performance
  • Compact, lightweight, and easy UAV integration
  • Supports FPV drones, fixed-wing UAVs, and multirotor platforms
  • Industrial-grade RF stability for professional use
Technical Specifications
Product Name1.4GHz UAV FPV Video Transmitter - Long Range 10KM Wireless Drone Video Link System
ModulationTDD OFDM
Frequency566~678MHz, 1420~1530MHz
FHSSSupport
Bandwidths3MHz, 5MHz, 10MHz, 20MHz, 40MHz
EncryptionAES128
Data RateMaximum 100Mbps
RF Transmission Power300mW*2
ConstellationQPSK, 16QAM, 64QAM self adaption
Sensitivity-102dBm(1Mbps@20MHz)
Latency200ms
Transmission Range10km (UAV to Ground)
Power Input12~18V (for both air unit and Ground unit)
Power Consumption<7W
Dimensions83.7*61.4*20.2mm (the ground unit is the same as the air unit)
Weight106g (the ground unit is the same as the air unit)
Air Unit ConnectivityEthernet*2, UART*2, SBUS, Power in, SMA*2
Ground Unit ConnectivityEthernet*2, UART*2, SBUS, Power in, SMA*2
Product Design
1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
Reliable Performance in Real-World Conditions
This long range FPV video transmitter system is designed for challenging environments such as open fields, mountainous regions, coastal surveillance zones, and industrial inspection sites. It ensures consistent video feed stability, even under high-speed drone movement or partial signal obstruction.
Wide Application Scenarios
  • FPV drone racing and aerial photography
  • UAV inspection for power lines and pipelines
  • Agricultural monitoring and mapping
  • Search and rescue operations
  • Security surveillance and border patrol
  • Industrial infrastructure inspection
1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
