Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Specifications
Brand Name :
Hincn
Model Number :
HCL552
Place of Origin :
China
MOQ :
1 set
Price :
US$2,698.00~US$2,898.00
Payment Terms :
,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability :
1,899pcs/month
Delivery Time :
7~14 working days
Packaging Details :
carton package
Modulation :
TDD OFDM/ COFDM
RF power :
10W
Frequency :
1428~1468MHz,1420~1530MHz
Management :
Web UI and Control Uart
RF Transmission range :
Up to 150km
OEM/ODM :
Support
Description
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Professional wireless video transmitter designed for long-range UAV video data transmission with bidirectional wireless data link capabilities.
Key Features
  • TDD OFDM wireless video transmitter receiver for UAV video data transmission
  • Maximum 30Mbps Iperf Throughput at 20MHz bandwidth
  • Support point to point and point to multipoint networking
  • Long range transmission up to 150km with 10W RF power amplifier
  • Frequency hopping spread spectrum (FHSS) technology for anti-jamming
  • OEM/ODM wireless video transmission solution
Product Overview
HCL552 Drone UAV video transmitter enables long range two-way wireless video audio data transmission, with maximum air-to-ground transmission range up to 150 km. The device provides multiple service interfaces, including 2 Ethernet ports, 2 serial ports /Sbus interfaces, etc.
Technical Specifications
Model Number HCL552
Product Name Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Modulation TDD OFDM
Frequency 1428~1468MHz, 1420~1530MHz
FHSS Support
Bandwidths 1.4/3/5/10/20MHz
Throughput Maximum 30Mbps@20MHz
RF Transmission Power 10W (40~42 dBm)
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -108dBm (1Mbps)
Ethernet Ports 2 * Ethernet ports
Serial Ports 3 channels, RS232/TTL/Sbus optional
Transmission Range 30km, 55km, 80km, 150km
Control By Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay
Movement Speed Support no less than 300km/h
Power Input 24~30V, 28V as default
Power Consumption maximum power consumption <1A@28V
Dimensions 118.5 * 69.4 * 29mm
Weight 285g

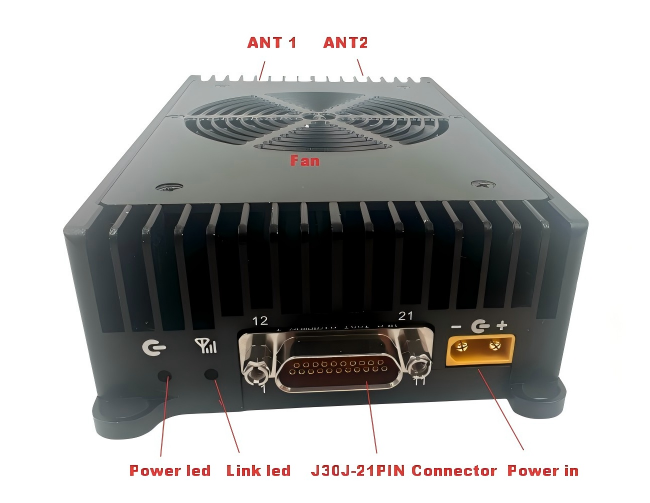

Input/Output Ports
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
I/O ports Description
J30J-21PIN 2 Ethernet ports + 2 serial ports (or Sbus) + Power input signal
Power-in XT30PW-M seat, power input interface (backup)
ANT1 TNC, main antenna interface, this antenna operates in TDD transmission/reception mode
ANT2 TNC, auxiliary antenna interface, this antenna assists in receiving but does not transmit
Power-LED Red power indicator, light remains on during normal power supply
Link-LED Three color wireless link status indicator led
Multiple Networking Types
Point to Point Networking
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Point to Multipoint Networking
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Relay Network
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
Frequently Asked Questions
Q1. This UAV video transmitter seems to support IP camera, what if I want to use a camera with AV/ HDMI or SDI video output?

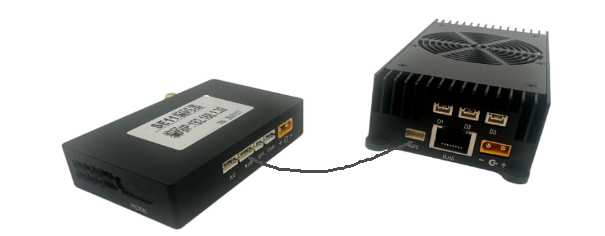

Yes, the default video input is IP RJ45 Ethernet port. If your camera only has HDMI, SDI, AHD or AV output, you need to buy our mini encoder device to encode the video and audio signal into digital data for transmission. At the receiver end, you can connect it directly to your computer or NVR. If you want to output to an HDMI monitor, you can also buy our decoder device to convert the digital data back into HDMI video and audio signals.
Long Range Video Transmitter For FPV Drone And UAV Flying With J30J-21PIN Port
