Video Data Transmitter Support Hybrid Network For Drone/ UAVs Unmanned Systems
Video Data Transmitter Support Hybrid Network For Drone/ UAVs Unmanned Systems
Video Data Transmitter Support Hybrid Network For Drone/ UAVs Unmanned Systems
Video Data Transmitter Support Hybrid Network For Drone/ UAVs Unmanned Systems
Specifications
Brand Name :
Hincn Limited
Model Number :
HCL620
Place of Origin :
China
MOQ :
1 set
Price :
US$1,869~3,469
Payment Terms :
,L/C,D/P,D/A,T/T,Western Union
Supply Ability :
1,996 sets
Delivery Time :
5~8 working days
Packaging Details :
carton package
Video Input :
Ethernet/HDMI/SDI/AHD/AV
Rf Transmissioin Power :
10W
Modulation :
TDD OFDM
FHSS :
Support
Encryption :
AES128/AES256
Bandwidths :
3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Description

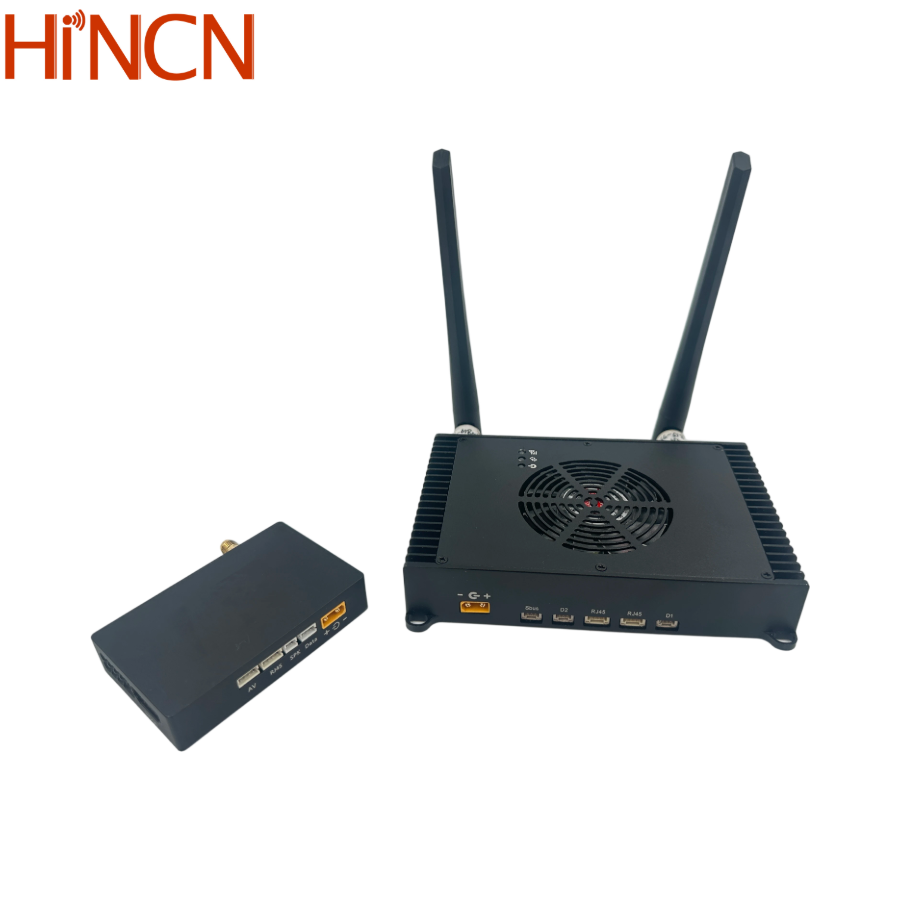

Video Data Transmitter with Hybrid Network Support for Drone/UAV Systems
The HCL620 video data transmitter utilizes MIMO dual transmission and reception technology to overcome signal blockage during aircraft maneuvers while delivering throughput up to 100Mbps. This makes it ideal for high-speed video data transmission in demanding unmanned system applications.
Advanced Mesh Networking Capabilities
In a MESH network configuration, each HCL620 MANET radio operates in peer-to-peer mode, creating a true mobile network. The system easily integrates with various unmanned platforms and connects directly to monitors, input devices, and sensors through multi-functional I/O ports, forming a complete Ground Control Station (GCS) or field data processing unit.
  • Supports point-to-point, point-to-multipoint, chain relay, mesh networking and hybrid network topologies
  • Self-forming and self-healing network capabilities
  • Ultra-reliable connectivity for unmanned systems
Technical Specifications
Model Number HCL620
Product Name Video Data Transmitter Support Hybrid Network For Drone/UAVs Unmanned Systems
Modulation TDD OFDM
Frequency 1420~1530MHz, other frequencies can be customized
FHSS Support
Bandwidths 3MHz, 5MHz, 10MHz, 20MHz, 40MHz
Throughput Maximum 100Mbps throughput
RF Transmission Power 10W
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -102dBm(1Mbps@20MHz)
Ethernet Ports 2 * Ethernet ports for IP data transmission
Serial Ports 2 channel TTL for serial data transmission (TTL 3.3V uart as default, RS232 optional)
Transmission Range 2~10km(ground-to-ground), 20~150km(UAV-to-ground, optional range level)
Control By Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay
Movement Speed Support no less than 240km/h
Power Input 24~32V
Power Consumption <1.86A@28V(access node) and <0.75A@28V(central node)
Dimensions 131*93.7*24.8mm
Weight 277g

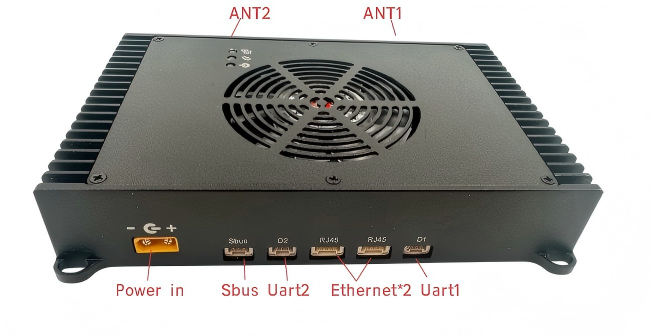

I/O Ports Configuration
Video Data Transmitter Support Hybrid Network For Drone/ UAVs Unmanned Systems
Ethernet*2 2 channel 4Pin GH1.25mm lockable connector, bridged inside with same IP address
Uart1 TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement
Uart2 TTL3.3V data UART, 3Pin GH1.25mm lockable connector, can be changed to RS232 as requirement. It can be set as control uart via web UI
Sbus 3Pin GH1.25mm lockable connector. Sbus-in and Sbus-out
Power in XT30PW-M connector
ANT1 Tx/Rx Antenna port, SMA female
ANT2 Tx/Rx Antenna port, SMA female
MESH Network Nodes and Throughput
The HCL620 MANET network radio operates in either access node mode or central node mode, managed through the network user interface. It supports up to 64 access nodes connecting to a central node within the same wireless local area network, sharing the full transmission bandwidth (up to 100Mbps throughput). Data transmission is categorized as downlink (central to access node) and uplink (access to central node), with the ratio controllable via web UI. In point-to-point configurations, both uplink and downlink data streams share the complete transmission bandwidth.
Frequently Asked Questions
Q1. Can I get a sample order for this MANET network radio?
A1: Sure, welcome sample order for testing.
Q2. Does this Mesh networking radio support any other cameras except IP camera?
A2: IP camera video can be connected directly via Ethernet port. HDMI/SDI/AHD/AV camera video requires encoding with our SE10/SE11 encoder before connecting to HCL620 via Ethernet.
