AES-256 Encrypted COFDM UAV Video Transmitter with 1W/2W/5W PA – Secure Long Range Wireless Video Link
AES-256 Encrypted COFDM UAV Video Transmitter with 1W/2W/5W PA – Secure Long Range Wireless Video Link
AES-256 Encrypted COFDM UAV Video Transmitter with 1W/2W/5W PA – Secure Long Range Wireless Video Link
AES-256 Encrypted COFDM UAV Video Transmitter with 1W/2W/5W PA – Secure Long Range Wireless Video Link
Specifications
Model Number :
HCT820+ HCR800
Transmission power :
1W(30dBm) or 2.5W(34dBm)
Supply Ability :
1,788 sets/ month
Payment Terms :
T/T,Western Union,MoneyGram,L/C,D/A,D/P
Video input :
HDMI，SDI，AHD，AV
Delivery Time :
7~14 working days
Place of Origin :
China
Frequency :
160MHz~860MHz，more can be customized
Price :
US$986~US$1,286
Packaging Details :
carton package
Video encode :
H265/H264
Brand Name :
Hincn
Wireless (De) modulation :
COFDM
MOQ :
1 pc
Encryption :
AES256
Description

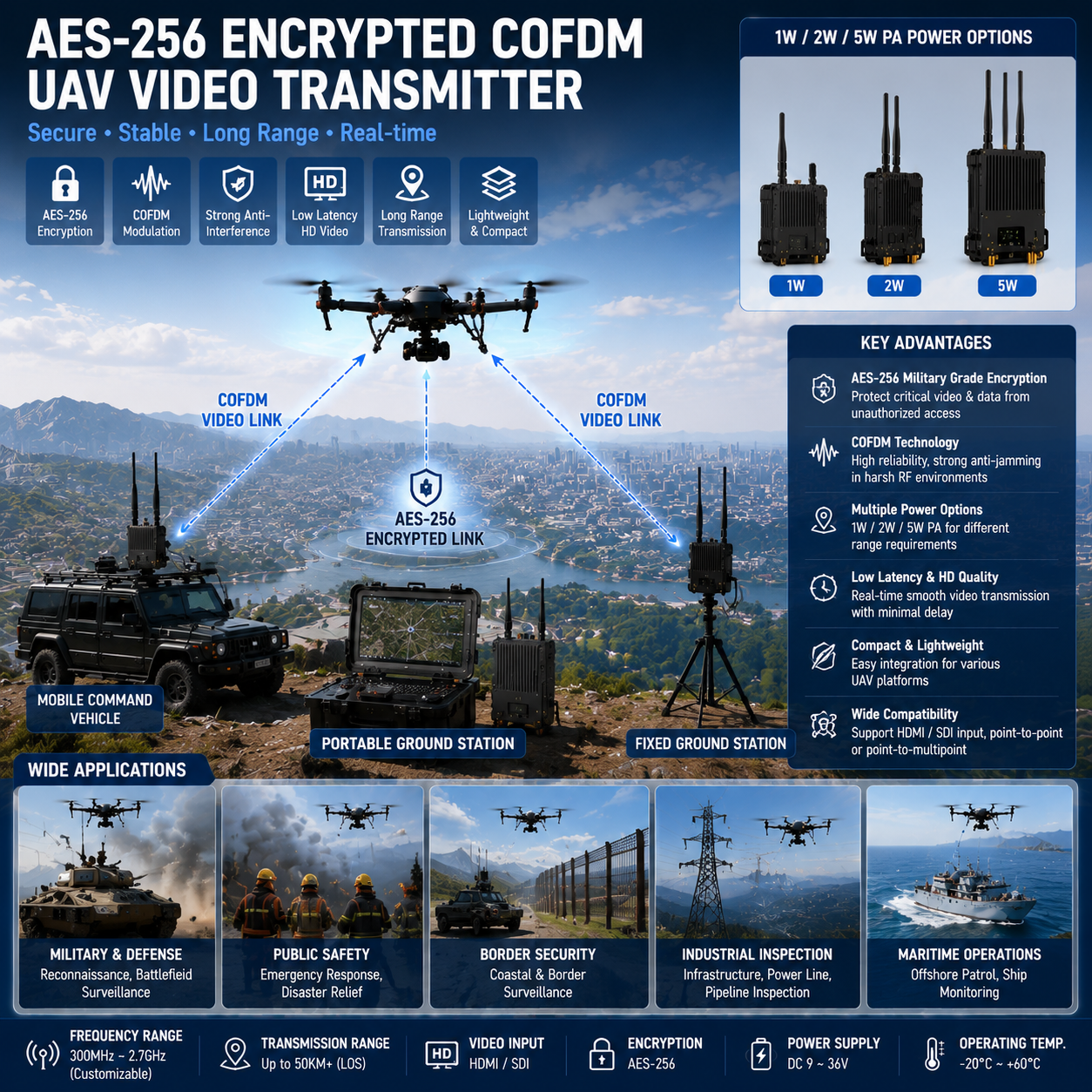

AES-256 Encrypted COFDM UAV Video Transmitter with 1W/2W/5W PA
This AES-256 encrypted COFDM UAV video transmitter is engineered for mission-critical aerial applications requiring ultra-secure, low-latency, and stable HD video transmission. Supporting 1W, 2W, and 5W power amplifier options, it delivers flexible output performance for various operational ranges and environments, from urban inspection to long-distance UAV surveillance.
Built with advanced COFDM modulation technology, the system ensures robust anti-interference capability and reliable real-time video delivery even in complex RF environments. The integrated AES-256 encryption guarantees high-level data security, making it ideal for government, defense, public safety, and industrial drone operations.
Optimized for UAV, FPV, and unmanned systems, this long-range video link supports HD video input with low latency transmission, ensuring smooth and stable aerial imaging. Its compact and lightweight design allows easy integration into multirotor drones, fixed-wing UAVs, and ground control stations.
Technical Specifications
Interfaces
Model Number HCT820
HD Video Input Standard HDMI interface
SD Video Input 4PIN 1.5mm pitch connector (CVBS Analog Audio Video Input)
Data Transmission 3PIN 1.5mm pitch connector (default TTL3.3V level, RS232 optional)
Configuration Port 4PIN 1.5mm pitch connector (TTL3.3V)
Power Input XT30PW-M connector (12V Power Supply)
Antenna Port SMA male
COFDM Wireless Modulation Transmission
Wireless Modulation COFDM
IFFT Mode 2K
Wireless Bandwidth 1MHz~8MHz adjustable (1KHz step)
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Constellation QPSK, 16QAM, 64QAM
Wireless Code Stream 0.5Mbps to 31.67Mbps
Frequency Range 300~860MHz (customizable with 1KHz steps)
Transmission Power 1W (30dBm) or 2.5W (34dBm), optional 10W/20W
Audio and Video Processing
Video Input Auto-detected HD or SD (HDMI preferred)
Supported Formats 1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@50I, 1080@30I, 720@60P, 720@50P, 720@30P, NTSC, PAL
Video Encoding H265/H264
Audio Input HDMI embedded or analog
Audio Format AAC, 16bit, stereo, 32Kbps
Encryption AES256
Dimensions 104.5 × 50 × 27mm (excluding connectors)
Weight < 140g
Power Requirements DC 12V (11~13V), <15W for 1W PA, <23W for 2.5W PA
Latency H265: 200~300ms; H264: 50~130ms
Product Interface & Compatibility

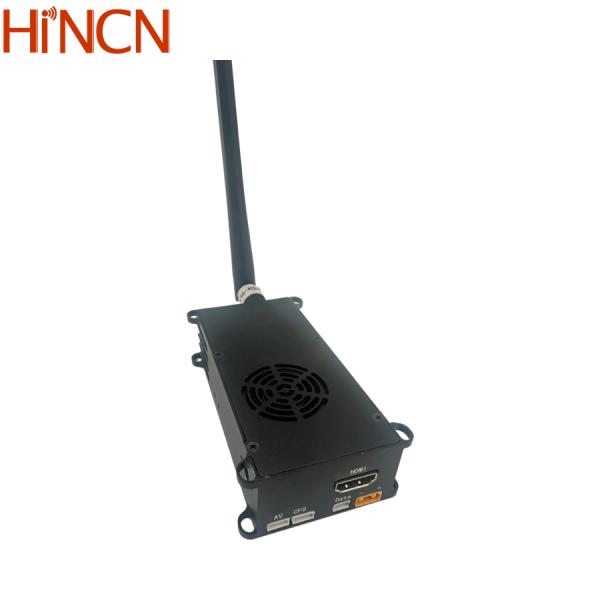

HC-T820 Video Transmitter Interface
AES-256 Encrypted COFDM UAV Video Transmitter with 1W/2W/5W PA – Secure Long Range Wireless Video Link
Recommended COFDM Wireless Receiver
AES-256 Encrypted COFDM UAV Video Transmitter with 1W/2W/5W PA – Secure Long Range Wireless Video Link
Keywords: AES-256 COFDM video transmitter, UAV secure video link, long range drone transmitter, 5W RF power video system, encrypted wireless video transmission, industrial UAV communication system, real-time FPV video data link.
Reliable, secure, and scalable—this COFDM transmitter is engineered for professional UAV video transmission missions worldwide.
AES-256 Encrypted COFDM UAV Video Transmitter with 1W/2W/5W PA – Secure Long Range Wireless Video Link
