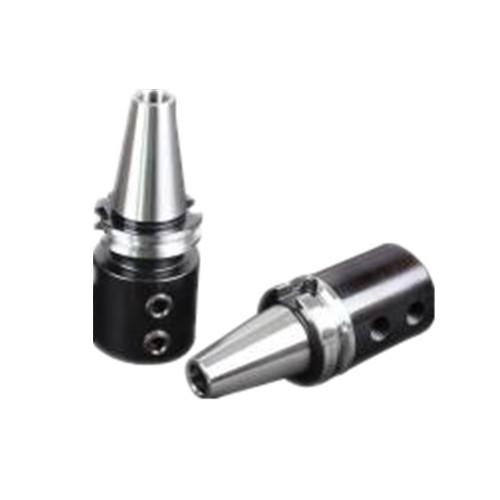

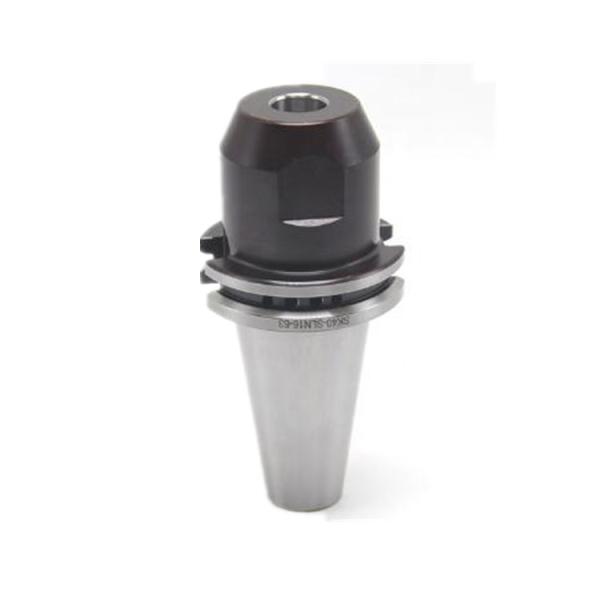

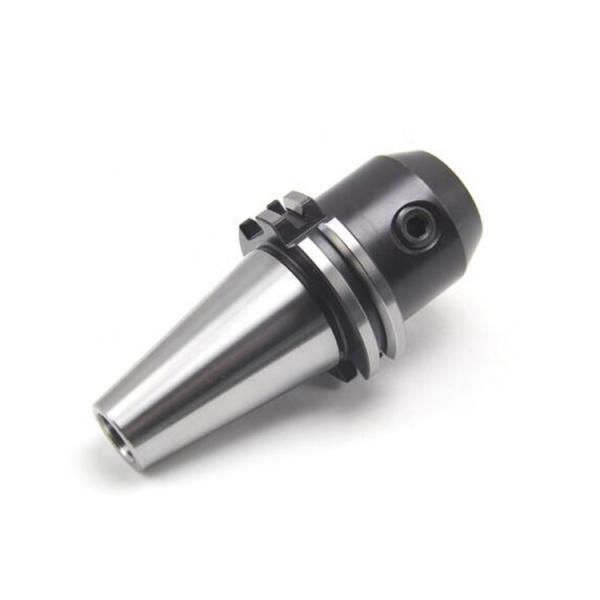

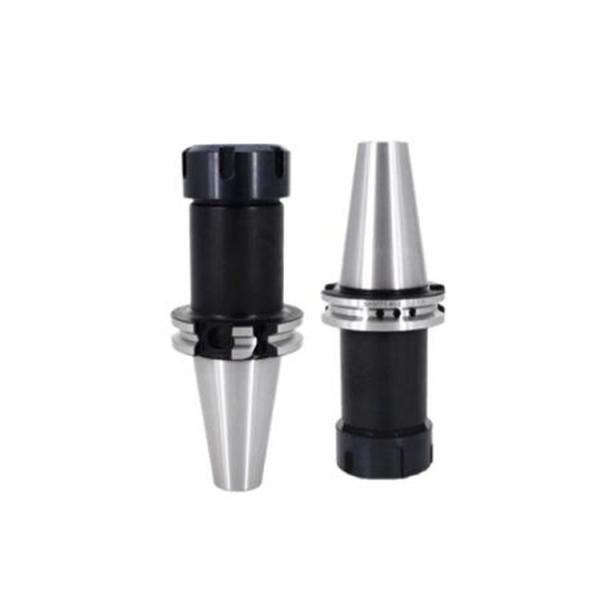

SK40-SLA12-60 end mill holde CNC Side Lock Tool Holder High Precision end mill tool holder

SK END MILL HOLDER ,SK Side Lock Tool Holder ,The side fixed tool handle holds the boring cutter. The biggest characteristics are: A. High precision B. Large clamping force C. Good rigidity D. Strong directivityCnc SK Side Lock End Mill Tool Holder, Side fixed tool handle: It refers to the tool whose handle is flattened. It is generally used for installing quick drills. Advantages: high clamping degree and concentricity, commonly used to connect thread milling cutter, milling cutter, drill bit, large clamping force, suitable for machining with large cutting force. However, one size of drill bit shall be equipped with a corresponding chuck, which has many specifiCATEEions. Secondly, it may cause the drill bit and the spindle are not concentric, which may damage the drill bit during processing.

SK Side Lock Tool Holder cnc tool Product information
1. SK END MILL HOLDER Material: 20CrMnTi;
2. SK END MILL HOLDER Hardness: 58 + 2HRC;
3.7:24 taper accuracy < AT3;
4. Carburizing depth: > 0.8;
5. Surface roughness: <0.4;
6. All NC tool holders are subjected to long-term cryogenic treatment to precipitate retained austenite into martensite and nano-carbide particles, which improves the hardness, toughness and durability of the tool holder and reduces the residual internal stress.
7. Extra-long time and thermal aging treatment can effectively remove the residual internal stress during grinding.

SK End Mill Holder is a type of tool holder used in milling machines. It is designed to securely hold end mills, which are cutting tools used in milling operations. The SK End Mill Holder uses a Weldon shank, which is a specific type of shank used for holding end mills.

The Weldon shank is a cylindrical shank with a flat on one side. This flat allows for better torque transmission and prevents the end mill from rotating inside the holder during cutting operations. The SK End Mill Holder is designed to be used with machines that have a corresponding SK spindle taper.

The SK End Mill Holder is known for its high precision and rigidity, which allows for accurate and efficient milling operations. It is commonly used in industries such as aerospace, automotive, and manufacturing.

Overall, the SK End Mill Holder with a Weldon shank is a reliable tool holder that provides secure and precise holding of end mills during milling operations.
