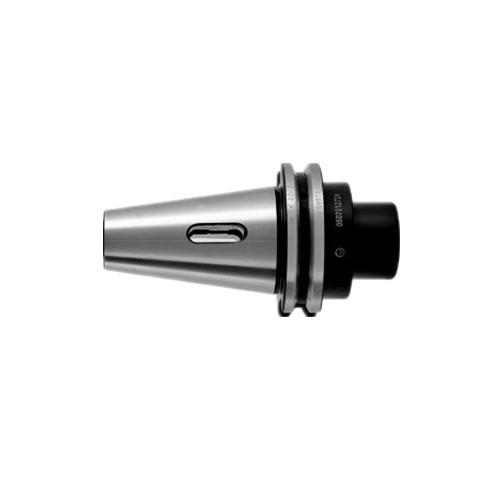

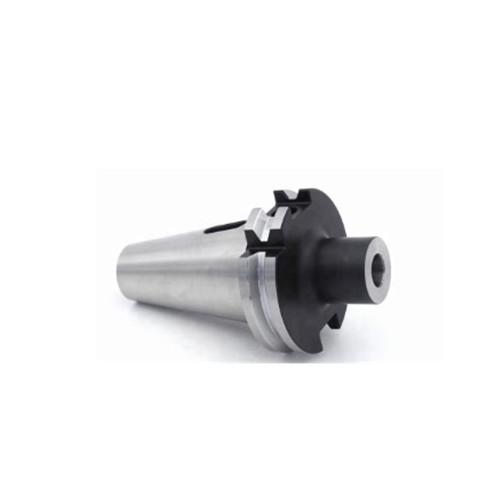

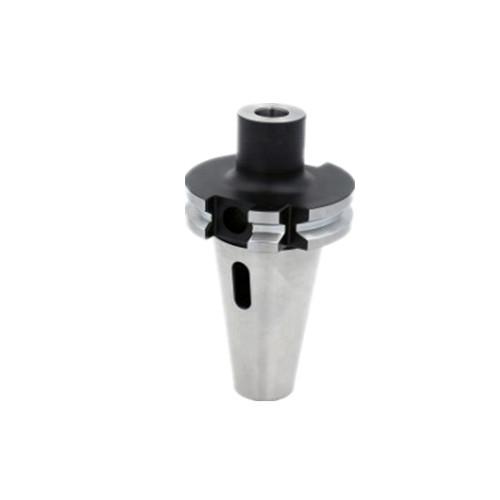

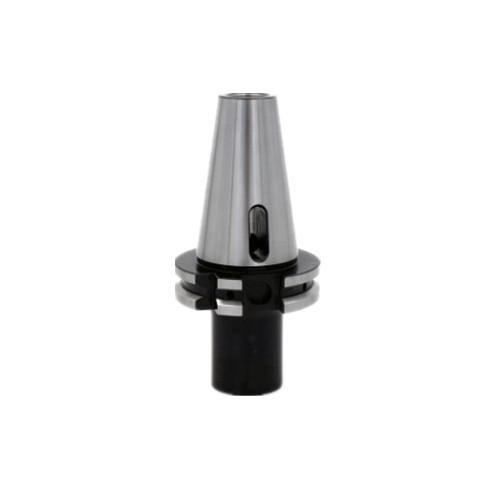

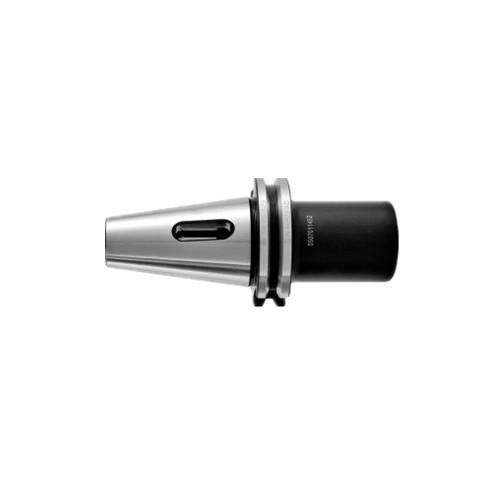

SK40 MTA3 CNC Milling Machine Tool Holder DIN 69871 morse taper adapter machine tool spindle

Brief introduction
SK30,40,50 MTA Morse Taper Adapter, suitable for clamping type DIN228-1A with flat tail Morse tool holder. high speed and high precision machiningMechanical spindle and cutting tools and other accessories.High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.
SK Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly SK30 SK40 SK50... Etc.. Mold industry, and high-speed engraving machine, used more.

AppliCATEEion range: cutter used in the radial drive groove, such as face milling cutter, vertical disc cutter, set type end mill

1.Material :20CrMnTi
2. Hardness:HRC52-54
3. Runout:0.005mm
4.SK Morse Taper Adapter Cooling:AD;AD/B can be made by request.
5.SK Morse Taper Adapter Balancing:G6.3/15000 RPM
6.SK Morse Taper Adapter Usage:for holding tools with Morse taper shank and tang according to DIN228-1 form B.

SpecifiCATEEions

SK30/SK40/SK50-MTA is the type with flat tail handle, MTB Mo without flat tail shank and TSA transition sleeve handle series
(1) the concentric degree and the precision jump are less than 0.005MM, and can guarantee this accuracy under the high-speed operation, and the accuracy can be guaranteed in two years..
(2) handle have cold design center, flange outlet design.
(3) taper shank accuracy less than at3, H4 tolerance zone, and machine tool spindle with the good, in the high-speed operation, can very good protection of spindle and cutting tool to extend the spindle and cutting tool life.
(4) handle material with chrome molybdenum alloy steel

Products advantages

When loading knife:
At the flat tail direction and handle hole

Main features: 1, strong and durable grip;
2, good rigidity, good torque;
3, the root lock has a new structure, automatic absorption of cutting vibration;
4, the port lock clamping force is strong;
5, due to the positioning ring, can rest assured that cutting;
6, in Japan, the United States, Germany, law, Italy, with the highest vibration accuracy.

The DIN69871 SK Morse Taper Adapter is a tool holder used in machining operations. It is designed to connect a tool with a Morse Taper shank to a machine spindle with a DIN69871 SK (Steilkegel) taper. The adapter allows for the secure and accurate positioning of the tool in the machine spindle, ensuring precise and efficient machining operations.
