SK end mill holder Milling Collet Chuck clamping tools tool handle

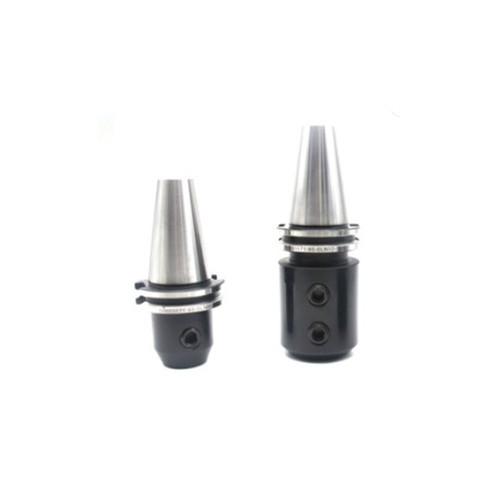

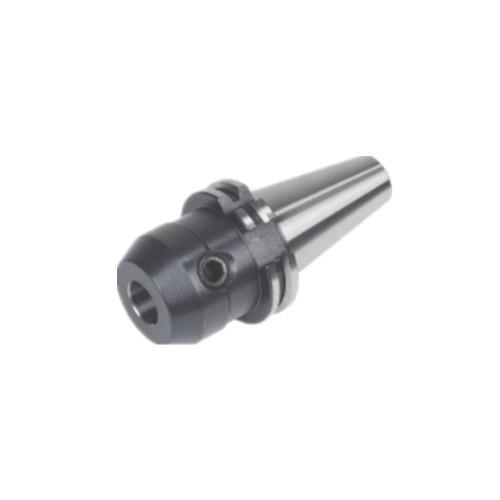

SK side lock end mill holder, DIN69871 VELDON ADAPTORS ,The side fixed taper shank is an international first-class technology, which can fit well with the spindle, extend the service life of the tool, repeatedly clamp, and have high accuracy. The surface hardness is high, which can reach 58 ° - 62 °. The product has high cost performance and stable quality. The side fixed tool handle is suitable for finishing, rough machining, plane machining, end face machining, groove, cut in processing, heavy cutting and other processing processes; The shape of the side fixed knife handle is different due to different clamping tools, and the locking screws are different accordingly. In use, the position of the side fixed screws must be confirmed. The flat position of the cutting tool can be locked.

SK END MILL HOLDER Product information
1. SK END MILL HOLDER Material: 20CrMnTi;

2. Standard : DIN69871 JT tool holder
3.SK END MILL HOLDER Collet:SK type
4.Accuracy :below 0.005mm ;and 30000rpm
5.Run out : 0.005mm
6.SK END MILL HOLDER Handness : HRC56-58
7.Bore Tolerance : H5
8.Cooling: Central coolant. AD/ADB can be made by request,
9.SK END MILL HOLDER Balance : G6.3/15000rpm,
10.SK END MILL HOLDER Usage : for clamping cutters with straight shank and inclined flat of DIN1835-B 7. Extra-long time and thermal aging treatment can effectively remove the residual internal stress during grinding.

end mill holder is a tool used to securely hold an end mill in place during milling operations. It typically consists of a cylindrical body with a tapered shank that fits into a milling machine spindle. The end mill is inserted into the holder and held in place with a set screw or collet, ensuring stability and accuracy during machining. End mill holders are available in various sizes and types to accommodate different end mill diameters and shank sizes. They are commonly used in metalworking and woodworking applications to cut and shape materials.
