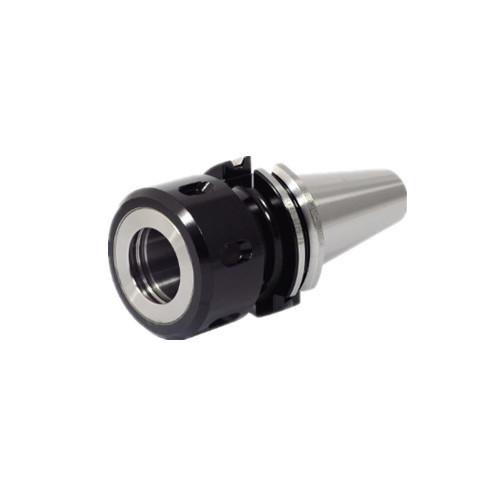

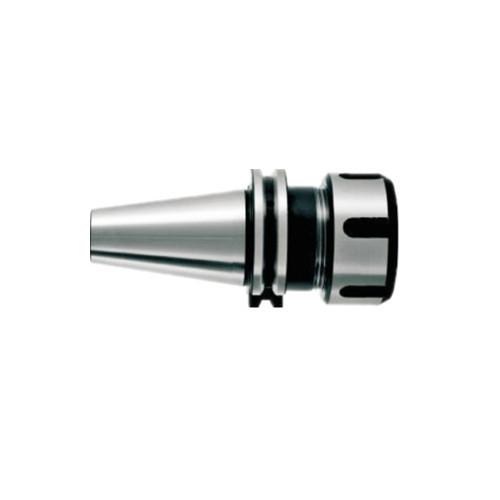

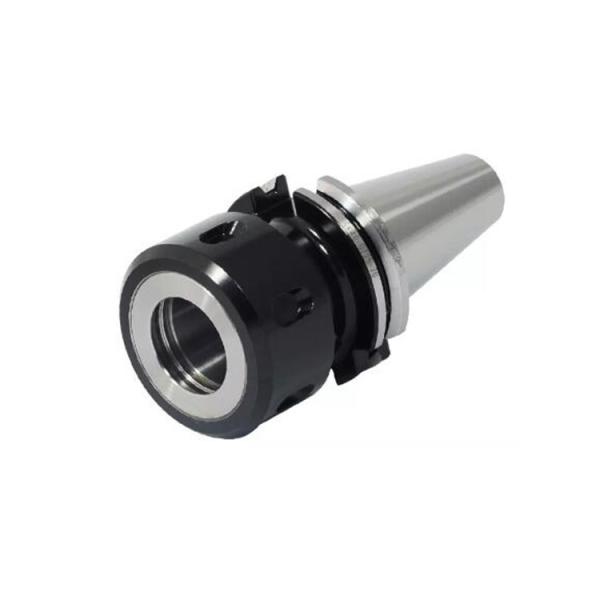

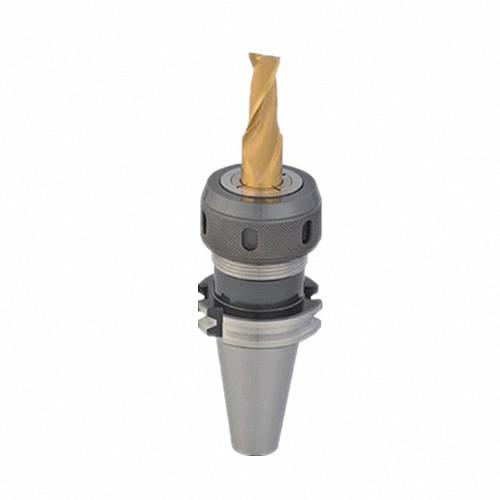

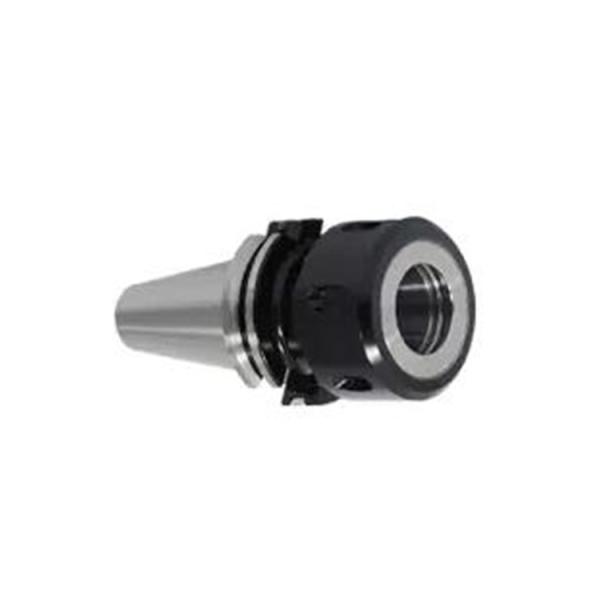

High Quality SK40 OZ Collet Chuck ,balanced G6.3 or G2.5 For choose. DIN69871 Tool Holder ,Collet chuck for SK30/SK40/SK50 OZ Series, DIN6388 OZ collet clamping straight shank tools of various sizes ,straight shank collet clamping tool for various sizes of cylindrical shank, high speed and high precision machining.Mechanical spindle and cutting tools and other accessories.

SK40-OZ25 speed for 24000R/MIN, applicable to the main shaft of the SK30 and is also suitable for similar woodworking machinery and equipment, such as industry, such as the long, peace, shoda brands such as CNC machine tool equipment, the handle the special configuration of a screwdriver handle, knife beam configuration model for 0Z25.

SpecifiCATEEions
1, SK OZ Collet Chuck Material: 40Cr, 20CrMnTi
2, SK OZ Collet Chuck Accuracy: 0.005mm
3, Taper tolerance: AT3
4, SK OZ Collet Chuck Hardness: 52-58HRC
5, Coolant: AD, B, AD/B can be made according to cutomer requirements
6, SK OZ Collet Chuck ball bearing Nut
7, SK OZ Collet Chuck Dynamic balancing: G6.3/12000rpm, G2.5/25000rpm
The hilt of the SK30-OZ25 speed for 24000R/MIN, applicable to the main shaft of the SK3O and is also suitable for similar woodworking machinery and equipment, such as industry, such as the long, peace, shoda brands such as CNC machine tool equipment, the handle the special configuration of a screwdriver handle, knife beam configuration model for 0Z25.

SK OZ collet chuck is a type of tool holder used in machining operations. It is designed to securely hold and grip cutting tools such as drills, end mills, and reamers in place during machining processes. The SK OZ collet chuck is known for its high precision and accuracy, providing a stable and rigid tool holding solution. It is commonly used in CNC machines and other high-speed machining appliCATEEions. The SK OZ collet chuck is compatible with OZ collets, which are widely used in the industry. The collet chuck is tightened using a wrench or a special tightening fixture, ensuring a tight and secure grip on the tool. It is a versatile tool holder that allows for quick tool changes and provides excellent concentricity for precise machining operations.

The DIN69871 OZ toolholder is a type of toolholder that is commonly used in CNC machining centers. It is designed to securely hold cutting tools, such as drills or end mills, in place during the machining process.

Overall, the DIN69871 OZ toolholder is a reliable and widely used toolholding solution in the CNC machining industry. It offers secure clamping and precise tool positioning, making it an essential component for achieving high-quality machining results.
