Specifications
Brand Name :
QFMH
Model Number :
SK30,SK40,SK50
Place of Origin :
CHINA
MOQ :
10PCS
Price :
USD 10/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000PCS/MONTH
Delivery Time :
5DAYS
Packaging Details :
PLASTIC BOX
AppliCATEion :
lathe machine
Coating :
TiN
Cutting Edge Angle :
30°
Flute Type :
Straight
Material :
20CrMnTi
Overall Length :
100
Product Name :
SK APU Tool Holder
Shank Diameter :
10
Tolerance :
±0.005mm
SIZE :
SK40-APU16
Description

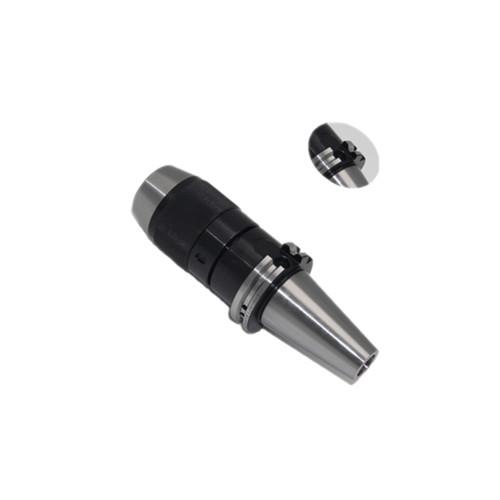

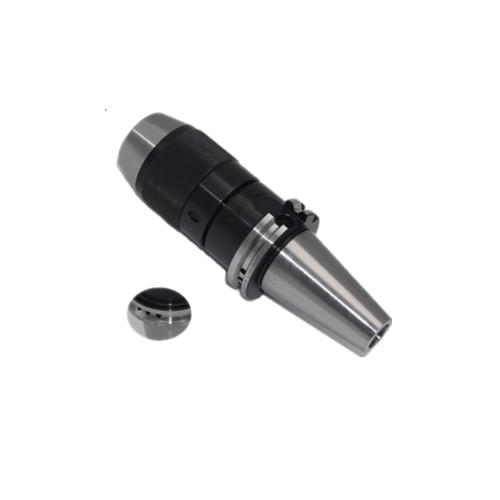

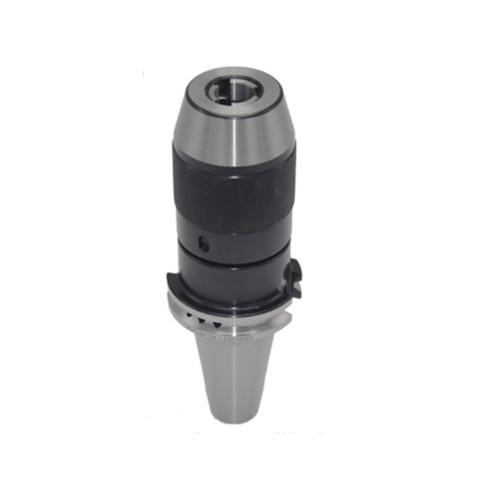

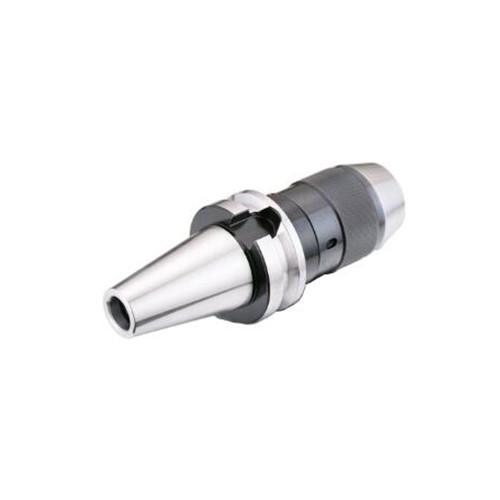

SK30 Keyless Drill Chuck Tool Holder, High Precision, G6.3/2.5 Balance

High precision sk30 40 50 APU keyless drill chuck tool holder , Material: Allyed case hardened steel, black-finished and precisely grinde.AppliCATEEion range: clip diameter: 0.5-16mm bit .Mechanical spindle and cutting tools and other accessories.High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.SK Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly SK30 SK40 SK50... Etc.. Mold industry, and high-speed engraving machine, used more.


SK APU Drill Chuck SpecifiCATEEion:
Material: Allyed case hardened steel, black-finished and precisely grinded.
Taper tolerance: Hardness : HRC 52-58
Carbon depth: 08mm±0.2mm
Max run out : <0.003mm


Suface Roughness: Ra<0.005mm
Cooling AD+B type can be made by request
When order , pls specify balancing G6.3/G2.5
Shank body standard: din69871 CNC turning tool holder

Model Chucking Dia C D L L1 Weight(KGS)
SK40-APU8-85 0.3-8 42 63.55 85 150.4 0.85
SK40-APU13-100 1-13 54 63.55 100 165.4 1
SK40-APU16-100 3-16 62 63.55 100 165.4 1.1
SK50-APU8-90 0.3-8 42 97.5 90 191.8 1.3
SK50-APU13-100 1-13 54 97.5 100 201.8 1.4
SK50-APU16-105 3-16 62 97.5 105 206.8 1.5

SK APU keyless drill chuck is a high-quality drill chuck designed for use with power drills. It features a keyless design, meaning it does not require a traditional chuck key for tightening and loosening drill bits. Instead, it uses a simple twist-to-tighten mechanism, allowing for quick and easy bit changes.

The APU keyless drill chuck is known for its durability and precision. It is made from high-quality materials that can withstand heavy use and provide long-lasting performance. The chuck also has a self-tightening feature, which means it automatically tightens the drill bit as you apply pressure, ensuring a secure and stable grip.

One of the main advantages of the SK APU keyless drill chuck is its versatility. It can accommodate a wide range of drill bit sizes, making it suitable for various drilling appliCATEEions. The chuck has a wide clamping range and can securely hold drill bits ranging from small diameters to larger sizes.

Overall, the SK APU keyless drill chuck is a reliable and convenient tool for any professional or DIY enthusiast. Its keyless design, durability, and versatility make it a popular choice among users who require a high-performing drill chuck for their drilling needs.

SK30 Keyless Drill Chuck Holder High Precision G6.3/2.5 Balance

SK APU Keyless Drill Chuck With SK Shank , AppliCATEEion range: clip diameter: 0.5-16mm bit .Mechanical spindle and cutting tools and other accessories.High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.SK Tool Holders for mechanical spindle and cutting tool and other accessory tool connection. Is a simple, popular spindle shank connection standard, mainly SK30 SK40 SK50... Etc.. Mold industry, and high-speed engraving machine, used more.
