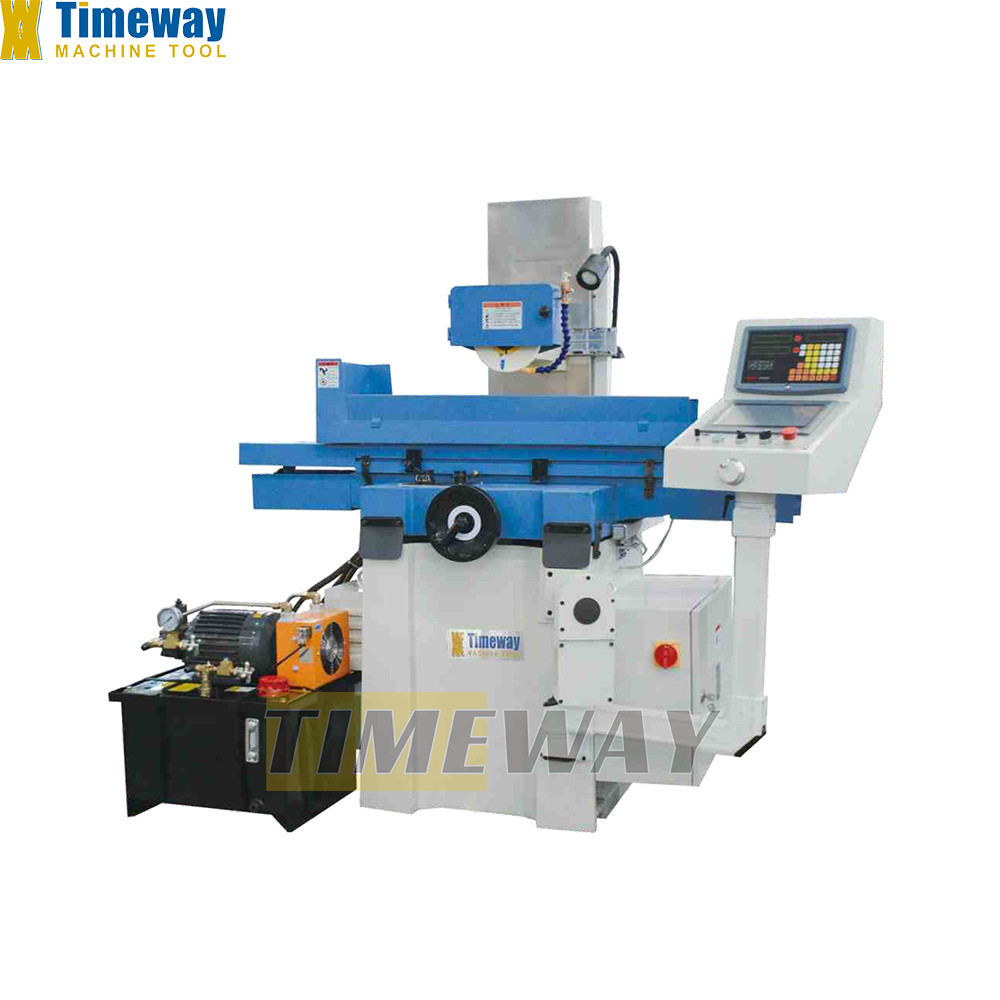

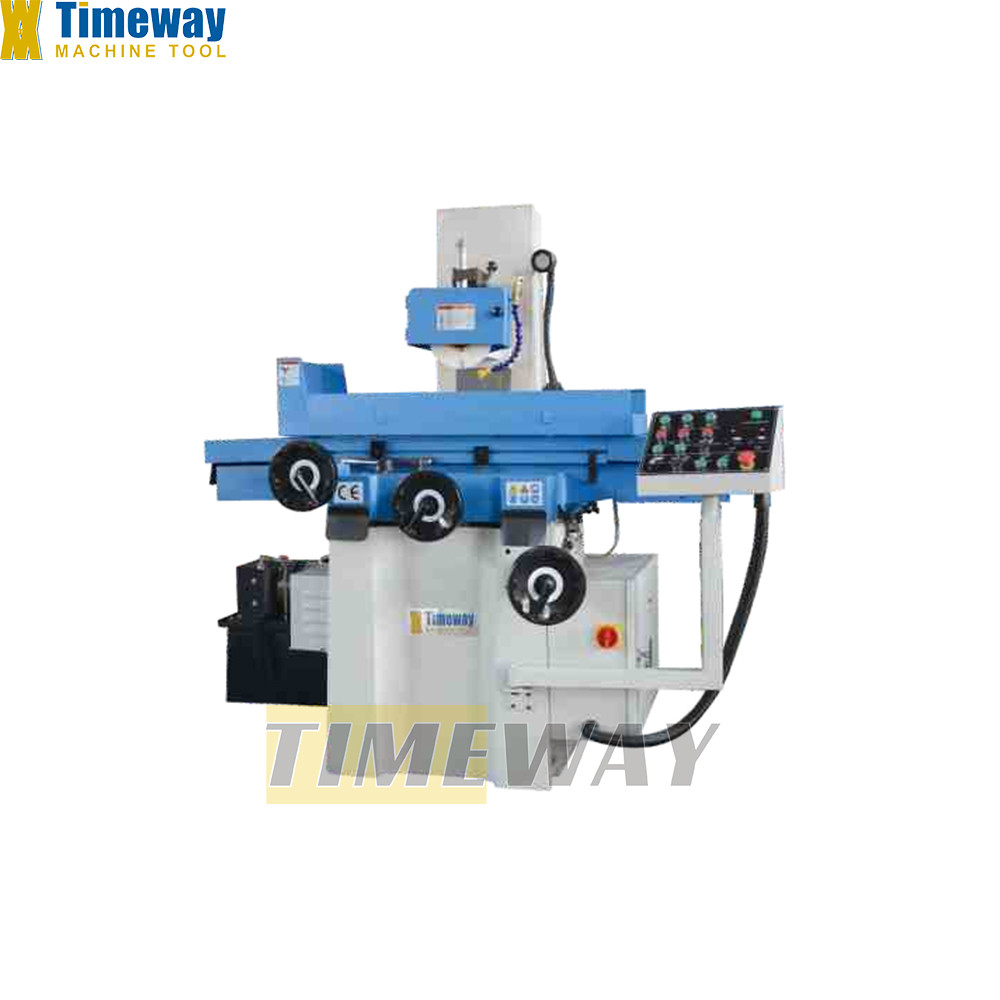

KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
Specifications
CNC or Not :
Normal
Condition :
New
Grinding Length(mm) :
450
Surface Roughness(μm) :
0.32 μm
Table Size(mm) :
480x200mm
Table Travel (X) (mm) :
520
Table Travel (Y) (mm) :
220
Year :
2024
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Dimension(L*W*H) :
1680x1140x1720
Weight (KG) :
1050
Power (kW) :
1.5
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
India, Indonesia, Germany, Japan, Australia, Romania, Egypt, Russia, Thailand, Tajikistan, Italy, Algeria, United States
Marketing Type :
New Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine, Gear
Applicable Industries :
Energy & Mining, Construction works , Machinery Repair Shops, Building Material Shops
Product name :
Surface Grinder Grinding Machine
Application :
Metal Processing
Table size :
480x200mm
Table travel (X/Y) :
520x220mm
Max. grinding area :
520x200mm
Distance from spindle to table :
450mm
Grinding wheel size :
200x20x31.75mm
Main motor power :
1.5kw
Spindle speed :
2800rpm
Surface roughness :
Ra0.32um
Price :
$18,800.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in

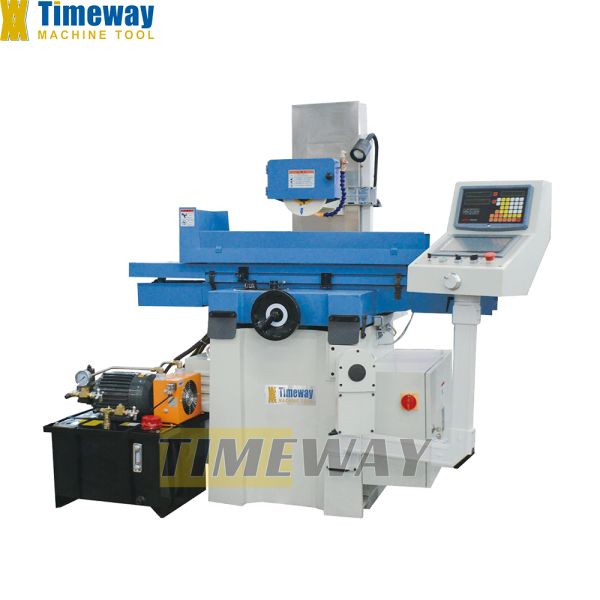

KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
Product Description

Economical / AH / AHR / AHD

1. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR
series), or AC servo motor (AHD series).

2. KGS-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.

3. KGS-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.

4. KGS-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC

STANDARD ACCESSORIES:

Magnetic chuck
Balancing arbor
Wheel flange
Grinding wheel
Wheel extractor
Wheel dresser stand
Work lamp
Coolant tank
Tools & tool-box
Leveling wedges and bolts
Operation manual(Enalish)

OPTIONAL ACCESSORIES:

Parallel wheel dresser
Digital readout
Wheel balancing stand
Dust absorption
Magnetic separator
Paper filter
Build in electro magnetic chuck controller
Inverter
Specification
SPECIFICATION
UNIT
KGS-2050AH
KGS-2050AHR
KGS-2050AHD
Table size
mm
480x200
Table travel (X/Y)
mm
520x220
Max. grinding area
mm
520x200
Distance from spindle center to table
mm
450
T-slots (wide/number)
mm
14x1
Permanent magnetic chuck size
mm
400x200
Table longitudinal speed (stepless)
m/min
3-20
Cross feed -Continuous
mm/min
150
Cross feed -Intermittent
mm/time
0-5
Cross feed handwheel-Revolution -Graduation
mm
2.5/0.02
Vertical min. feed handwheel-Revolution -Graduation
mm
AH: 1.25/0.01;
AHR: 1.25/0.01;
AHD: 0.1/0.001;
Grinding wheel size
mm
200x20x31.75
Spindle speed
rpm
2800
Main motor power
kw
1.5
Cooling pump power
kw
0.04
Hydraulic motor power
kw
1.5
Cross feed motor power
kw
0.04
Lifting motor power
kw
AH: -;
AHR: 0.25;
AHD: (servo) 0.75;
Oil tank capacity
L
60
Surface parallelism
mm
0.005/300
Surface roughness
um
Ra0.32
Net weight/Gross weight
kg
1050/1150
Packing size(LxWxH)
mm
1680x1140x1720
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
Factory Display：
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
