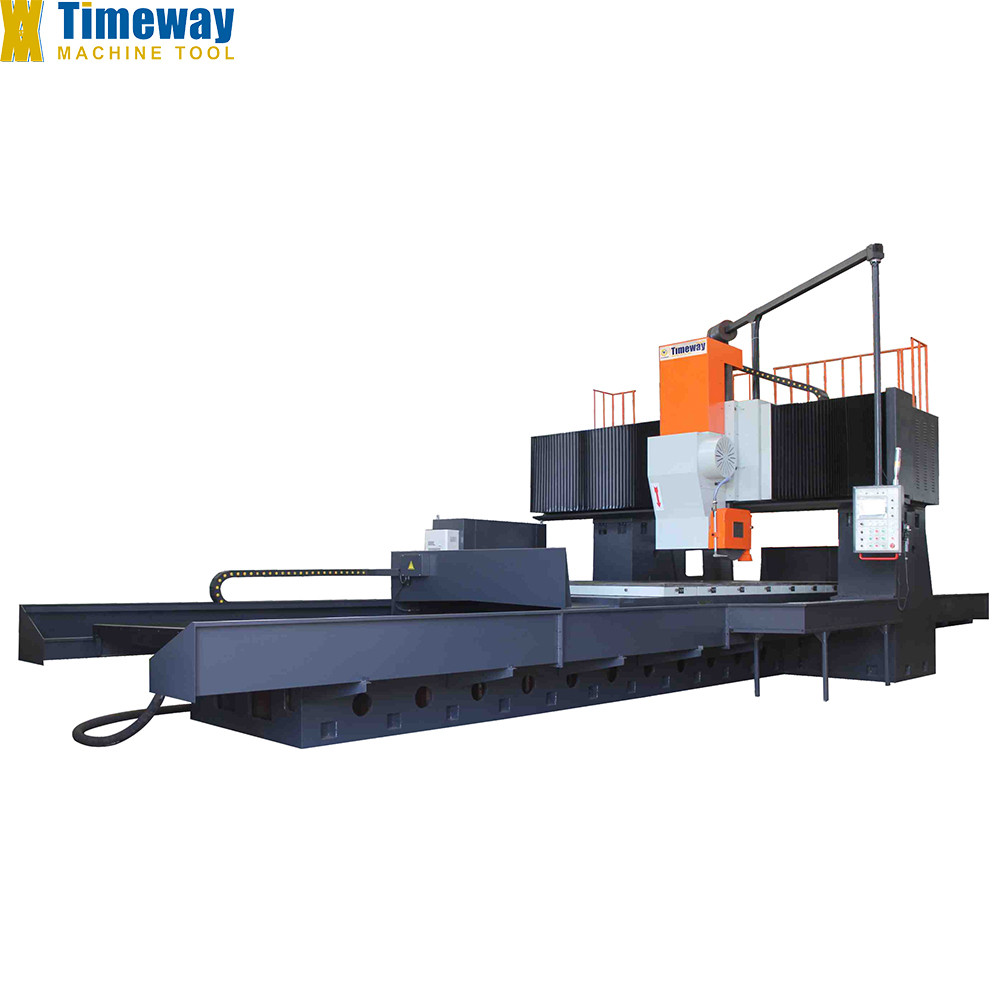

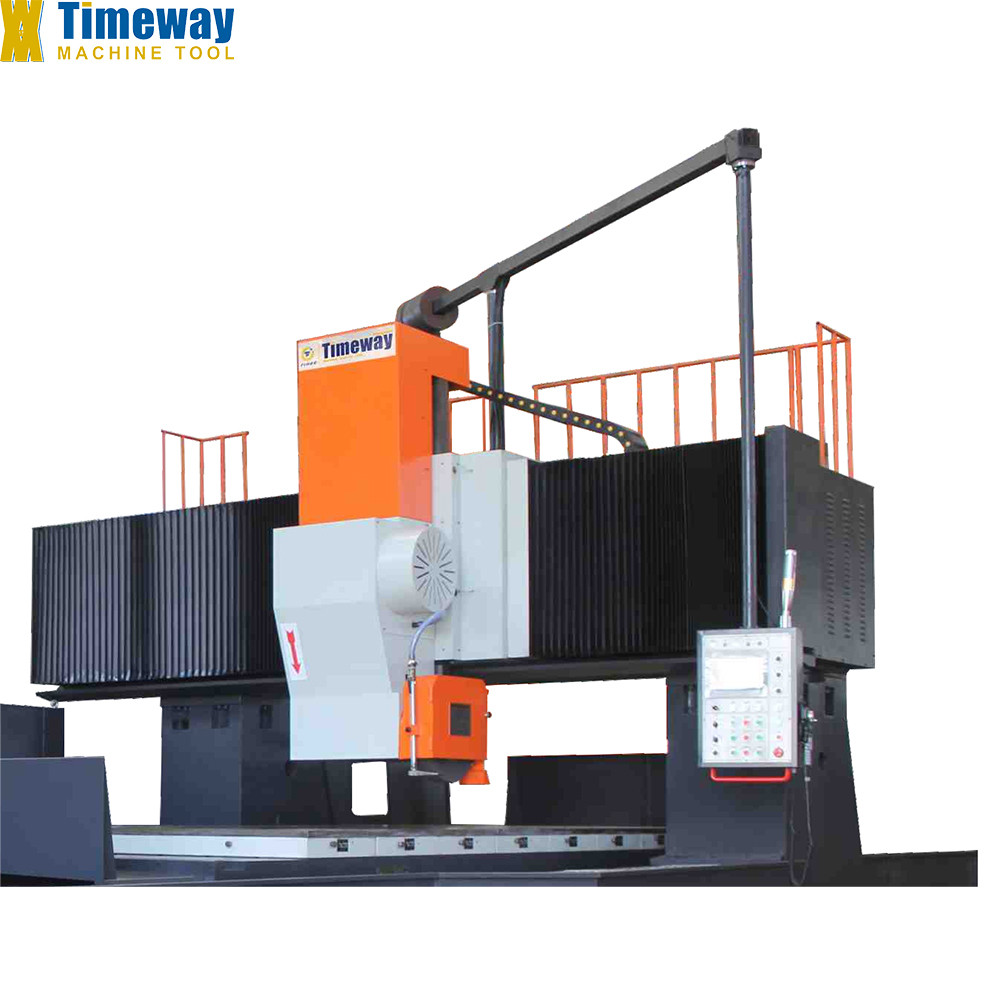

Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Specifications
CNC or Not :
Normal
Condition :
New
Grinding Length(mm) :
4500
Surface Roughness(μm) :
0.3 μm
Year :
2024
Place of Origin :
Henan, China
Brand Name :
timeway
Weight (KG) :
20000
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
India, Indonesia, Germany, Japan, Australia, South Africa, South Korea, Canada, Russia, Colombia, Italy, Chile, Algeria, United States
Marketing Type :
New Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine, Gear
Applicable Industries :
Manufacturing Plant, Energy & Mining, Construction works , Machinery Repair Shops, Building Material Shops
Product name :
Surface Grinder Grinding Machine
Name :
Gantry Type Surface Grinder DSG-3200
Function :
Metalworking
Precision :
High Precision
Table width :
2500mm
Table length :
4.5/6/8m
Gantry width :
3200mm
Max. grinding width :
3000mm
Max. grinding length :
4500-8000mm
Max. grinding height :
800/1000mm
Price :
$48,000.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Product Description
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000

STANDARD ACCESSORIES:

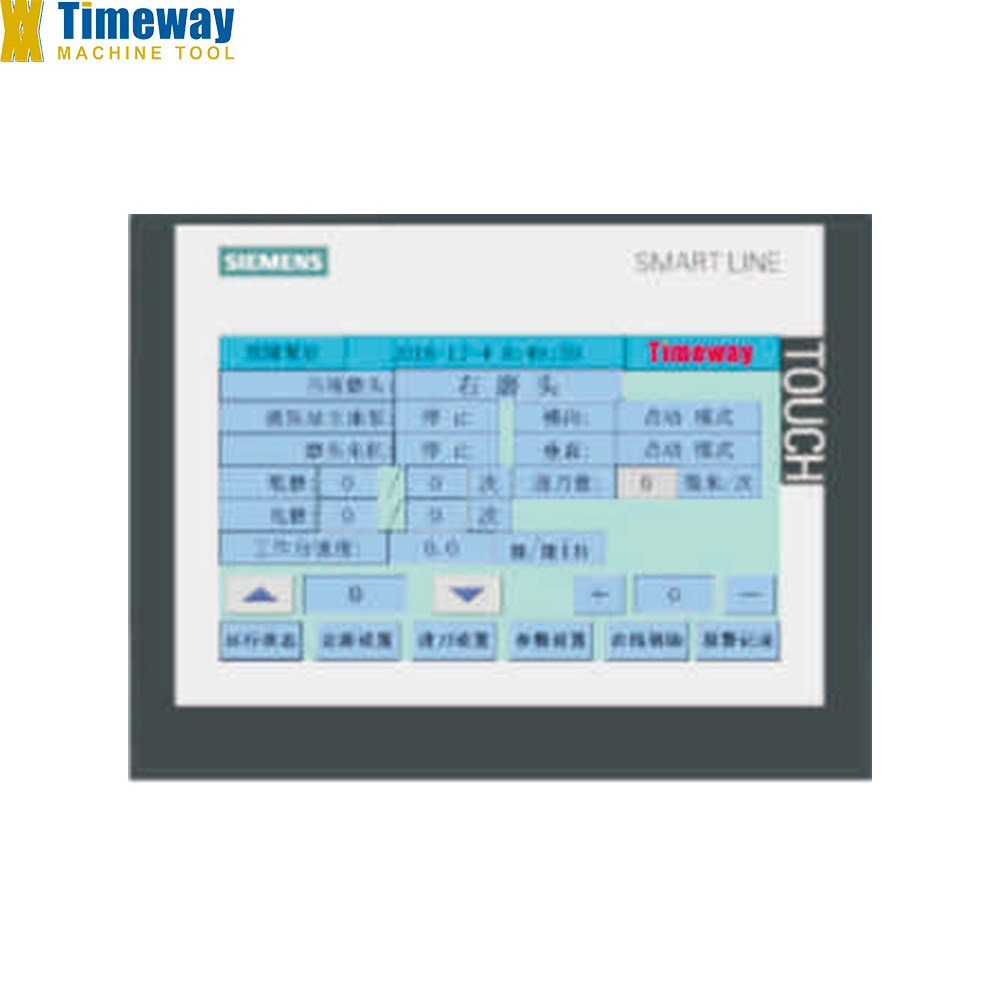

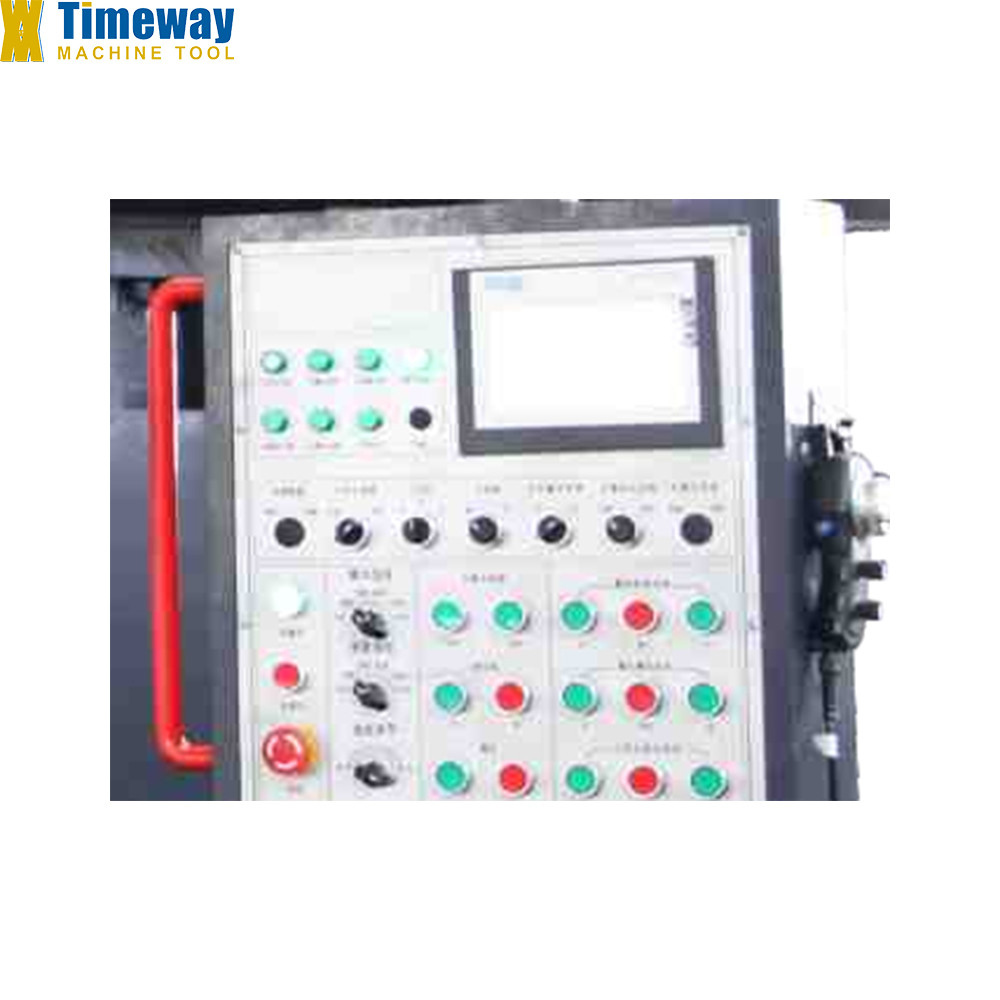

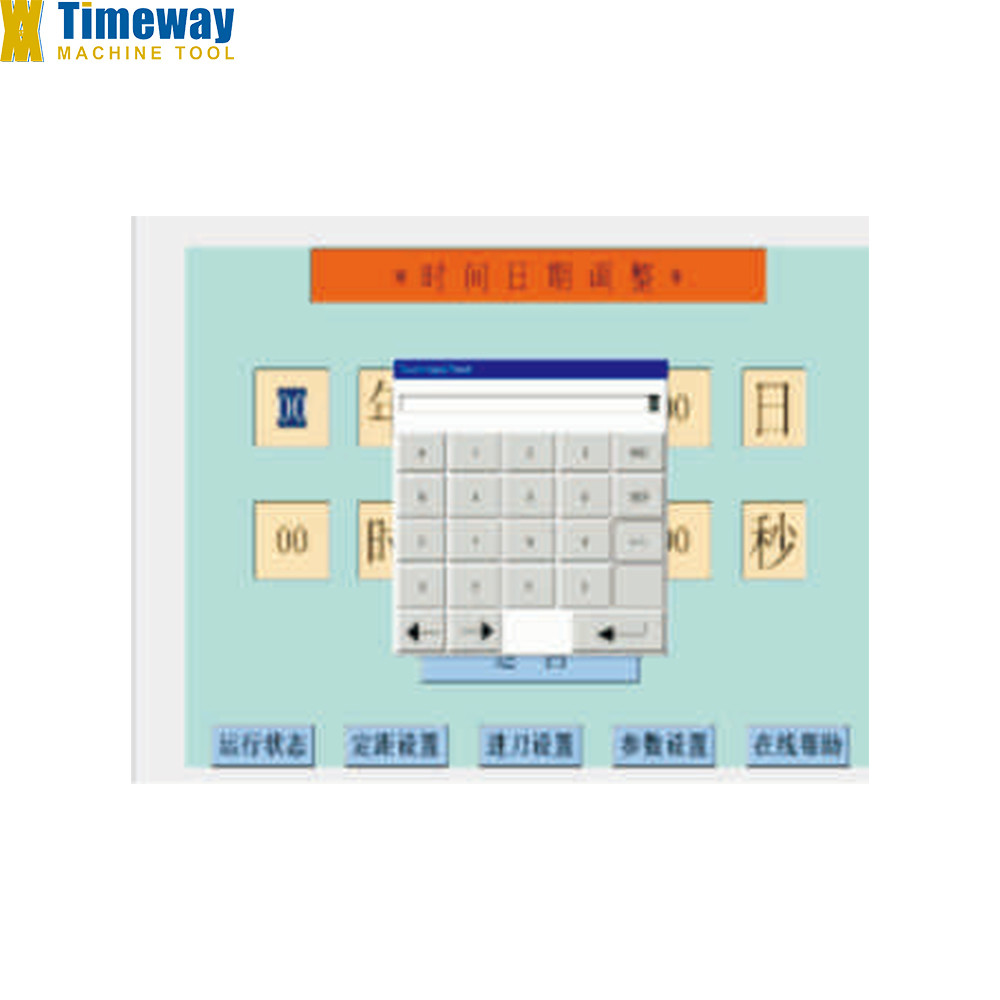

PLC+SMART auto. grinding controller,
Coolant tank,
Work lamp,
Balancing arbor,
Wheel flange and extractor,
Wheel dresser stand,
Y/Z axis electronical handwheel(MPG),
Splashing guard,
Standard grinding wheel,
Tools & tool-box,
Leveling wedge and bolts,
Operation manual (English edition).

OPTIONAL ACCESSORIES:

Balancing stand,
Electrical magnetic chuck,
Parallel wheel dresser,
2 axis digital readout,
Extra wheel flange,
Oil tank guard,
Magnetic separator,
Paper filter.
Specification
SPECIFICATION
UNIT
DSG-3200
Table width
mm
2500
Table length
m
4.5/6/8
Gantry width
mm
3200
Max. grinding width
mm
3000
Max. grinding length
mm
4500-8000
Max. grinding height
mm
800/1000
Horizontal wheelhead intermittent feed
mm/str
2-100
Horizontal wheelhead feed of MPG
mm
0.005
Horizontal wheelhead motor power
kw
30
Horizontal grinding wheel size
mm
600x150x305
Horizontal spindle speed
rpm
980
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Factory Display：
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Gantry Type Surface Grinder DSG-3200 High Precision Grinding Machine Weight KG 20000
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
