Small CNC External Cylindrical Grinder for Small-Scale Manufacturing Weight KG 2000
Small CNC External Cylindrical Grinder for Small-Scale Manufacturing Weight KG 2000
Small CNC External Cylindrical Grinder for Small-Scale Manufacturing Weight KG 2000
Small CNC External Cylindrical Grinder for Small-Scale Manufacturing Weight KG 2000
Specifications
Grinding Diameter(Outer)(mm) :
80
Grinding Length(mm) :
300
Max. Length of Workpiece (mm) :
300
Max. Weight of Workpiece(kg) :
10
Center Height (mm) :
115
Wheel Size(mm) :
25X25x75
Wheel Speed (rpm) :
35
Roundness(mm) :
1.5
Surface Roughness(μm) :
0.32
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
380V 50Hz
Dimension(L*W*H) :
As actual situation
Weight (KG) :
2000
Power (kW) :
3.4
Key Selling Points :
High-accuracy
Warranty :
1 Year, 1 year
Showroom Location :
France, Romania, Australia, South Korea, Russia, Turkey, Brazil, Algeria, Chile
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Other
Condition :
New
CNC or Not :
CNC
Center height :
115mm
Max. workpiece weight :
10kg
Roundness(O.D) :
1.5um
Surface roughness(O.D) :
Ra0.32um
CNC system :
Beijing KND 1000Ti
Wheel size :
250*25*75mm
Max. Grinding Length :
300mm
Max. Grinding Diameter :
80mm
Packaging Details :
Wood case or wooden pallet
Port :
China port
Supply Ability :
500 Set/Sets per Year
Price :
$10,000.00/sets 1-2 sets
MOQ :
1 set
Description

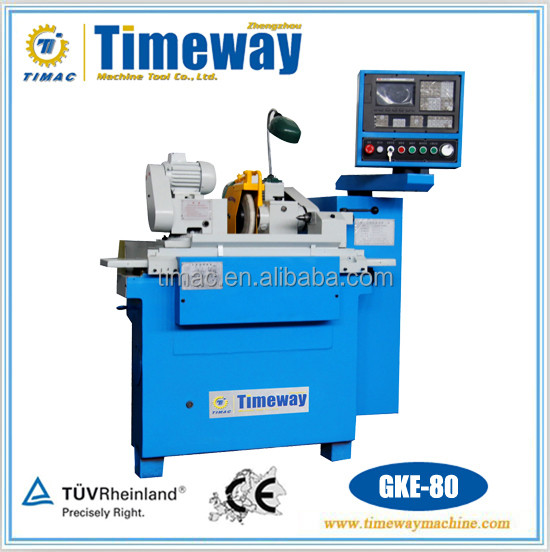

Small Economical Type CNC External Cylindrical Grinder Machine

GKE-80*300

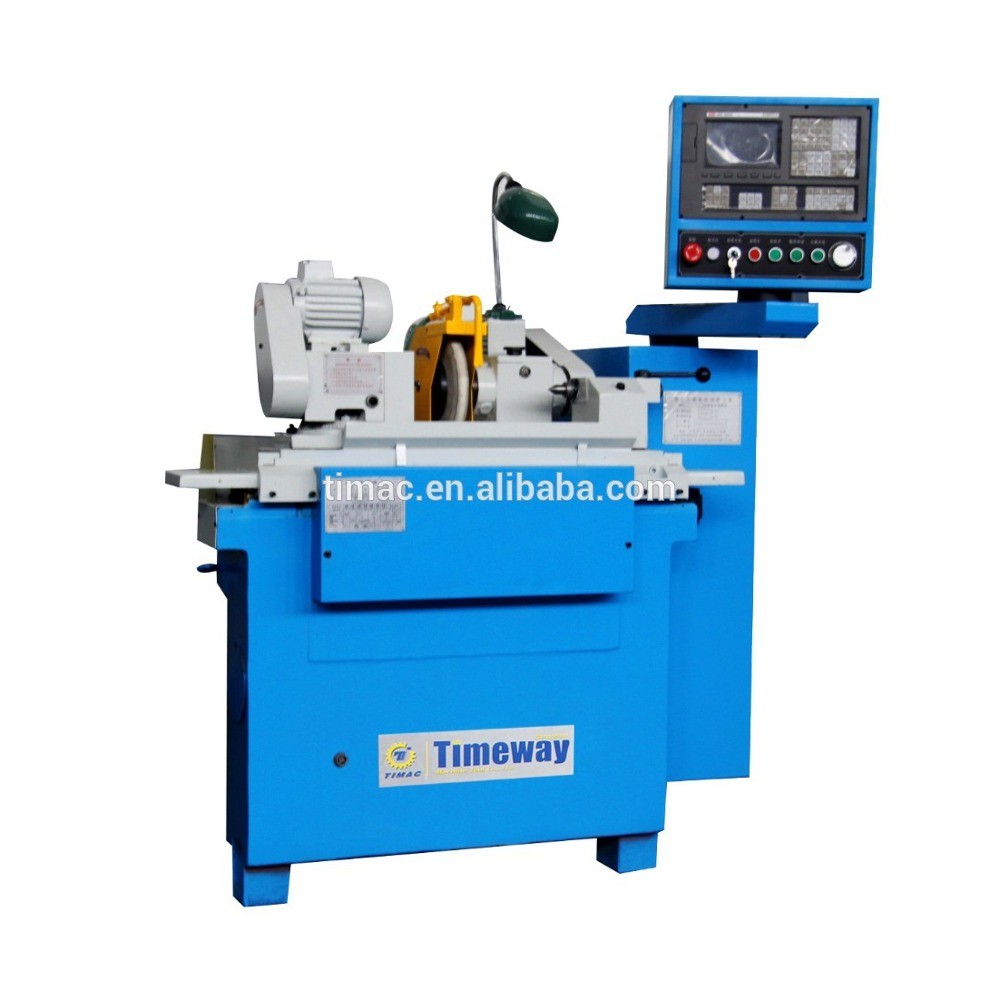

Main Outlook

Small CNC External Cylindrical Grinder for Small-Scale Manufacturing Weight KG 2000

Main Performances

Main Functions and Features

1. The machine structure is flexible, accuracy stability, high grinding efficiency, especially for less than 20mm culindrical or conical cylindrical workpieces, with delicate and simple features.
2. The electrical system is controlled by KND 1000Ti, other systems can also be configured according to the customer.
3. X-axis, Z-axis guide is using cross rolling linear guide, improve the sensitivity and minimum feed micro feed.
4. Wheelhead spindle is supported by three bushing hydro-dynamic bearing.
5. The machine can be equipped with radial and axial measurement instrument.

Main Accessories

  • Wheel periphery dresser
  • Wheel hub
  • Balancing arbor
  • Open-type steady rest
  • Wheel extractor
  • Magnetic separator

Extra Accessories

  • Wheel balancing stand
  • Diameter measuring instrument
Specifications List

Technical Parameters

Specifications Units GKE-80*300
Dia. to be ground mm Φ2-Φ80
Max. length to be ground mm 300
Center height mm 115
Distance between centers mm 300
Headstock center Morse 3#
Tailstock center Morse 3#
Max. workpiece weight to be ground kg 10
Wheel size mm Φ250*25*Φ75
Wheel peripheral speed m/s 35
Wheel spindle rptation speed rpm 2800
Min. pulse amount in X-axis mm 0.001
Min. pulse amount in Z-axis mm 0.001
Roundness um 1.5
Dia. uniformity in the longitudinal section um 5
Diameter measuring instrument um Ra0.32
Total motor power kw 3.4
Longitudinal servo motor power kw 1(3.3N.m)
Transverse servo motor power kw 1(3.3N.m)

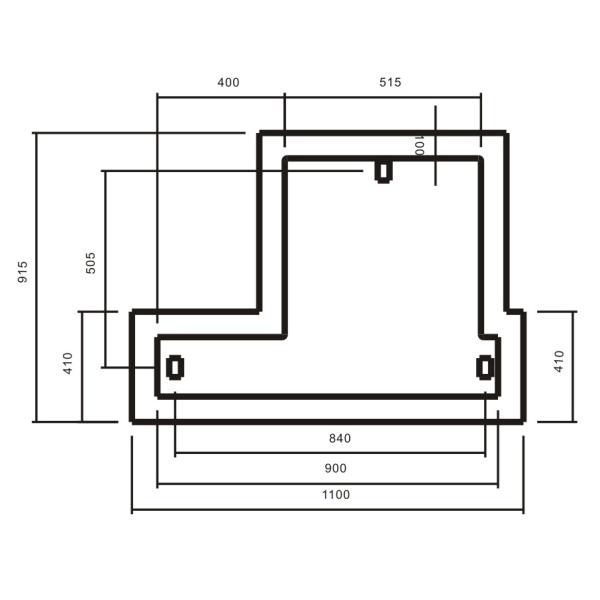

Foundation Drawing

The foundation depth depends upon the soilproperties, but it should be less than 400mm.
