CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
Specifications
Type :
CNC camshaft grinding machine
CNC or Not :
CNC
Condition :
New
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
380V 50Hz
Dimension(L*W*H) :
As actual situation
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
According to per customer's need
Center height :
180mm
Max. workpiece weight :
150kg
Wheel peripheral velocity :
35m/s
Wheel spindle speed :
1100rpm
Roundness(O.D) :
1.5um
Surface roughness :
Ra0.32um
Ginding lenght and diameter :
Customizations
CNC system :
Taiwan SYNTEC CNC system or others
Wheel size :
600*75*305mm
Max. Grinding Length :
1000mm
Weight :
As actual situation
Certification :
CE ISO
Max. Grinding Diameter :
320mm
Power :
21.475kw
Packaging Details :
Wood case or wooden pallet
Port :
China port
Supply Ability :
200 Set/Sets per Year
Price :
$50,000.00/sets 1-2 sets
MOQ :
1 set
Description

CNC Camshaft(Crankshaft) Grinding Machine

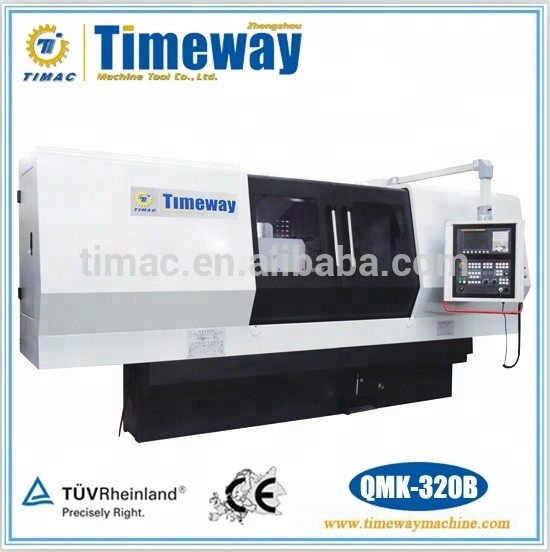

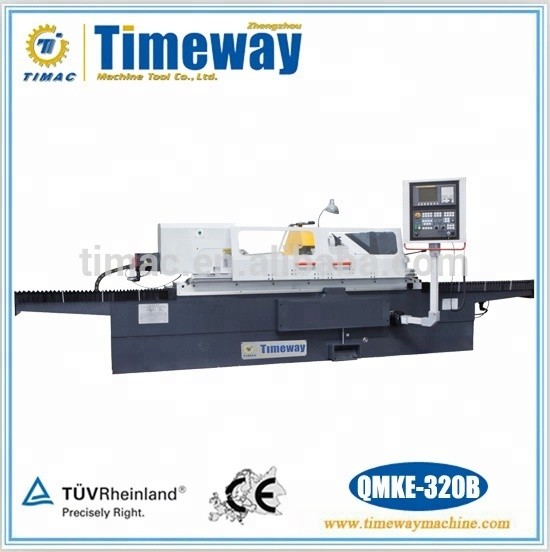

QMK-200H QMK-320B QMKE-200H QMKE-320B

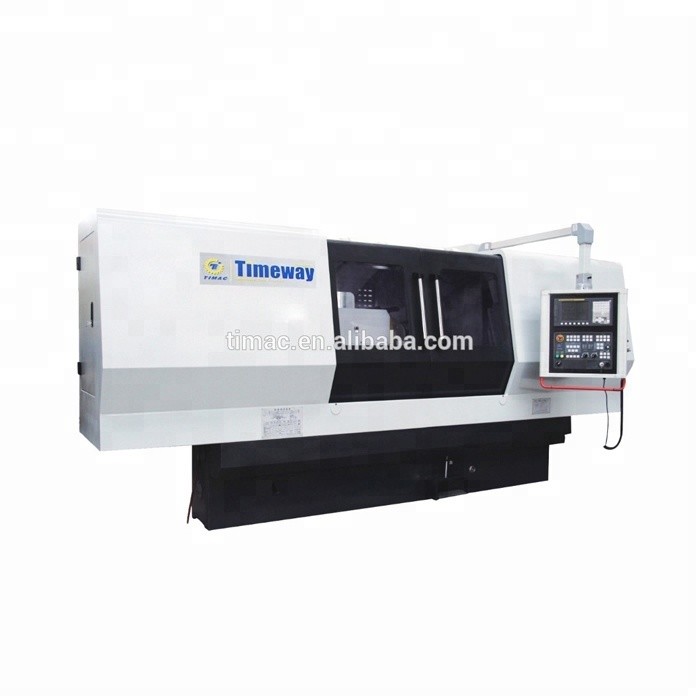

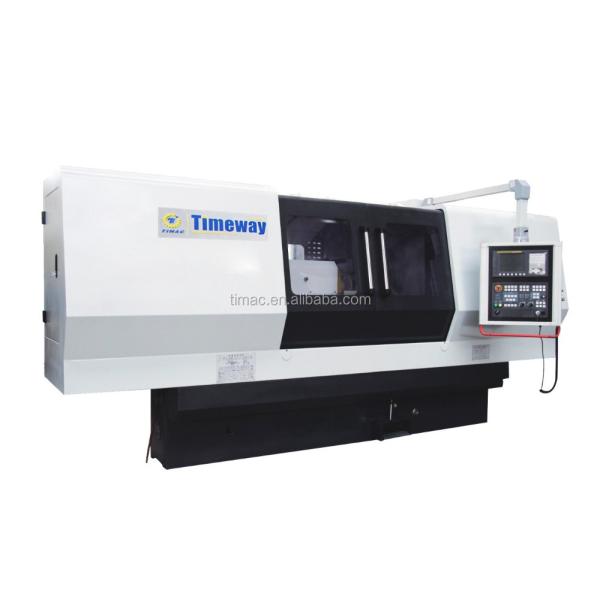

Main Outlook

CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg

Main Performances

Main Functions and Features

1. This series machine is the ideal processing equipment of automobiles, motorcycles and other engine camshaft, with high efficiency, good accuracy, simple operation, high cost, enabling one person to operate more than one.
2. Using Taiwan SYNTEC CNC system (other systems can also be configured according to the custom, such as FANUC or SIEMENS CNC system).
3. Wheel frame using high-speed hybrid spindle assembly, with high rotation precision, rigidity and other characteristics.
4. Using proprietary CNC grinding cams software.
5. Configure a separate electrical box, tank and filtration tank.
6. Wheel motor adopts AC frequency adjustment device, that can basically achieve constant linear speed grinding.

Main Accessories

  • Wheel perphery dresser
  • Wheel hub
  • Balancing arbor
  • Open-type steady rest
  • Wheel extractor
  • Magnetic separator

Extra Accessories

  • Wheel balancing stand
  • Diameter measuring instrument
Specifications List

Technical Parameters

Specifications Units

QMK-200H*500

QMKE-200H*500

QMK-320B*1000

QMKE-320B*1000

Dia. to be ground mmΦ8-Φ200Φ8-Φ320
Max. length to be ground mm5001000
Center heightmm135180
Distance between centersmm5001000
Headstock center Morse 4#Morse 5#
Tailstock center Morse 4#Morse 4#
Max. workpiece weight to be groundkg30150
Wheel size mmΦ400*50*Φ203Φ600*75*Φ305
Wheel peripheral speedm/s3535
Wheel spindle rotation speedrpm11001100
Min. pulse amount in X-axis mm0.0010.001
Min. pulse amount in Z-axismm0.0010.001
Roundnessum1.51.5
Dia. uniformity in the longitudinal sectionum55
Surface roughnessumRa0.32Ra0.32
Total motor powerkw10.82521.475
Longitudinal servo motor powerkw1.6(6N.m)3.9(15N.m)
Transverse servo motor powerkw1.6(6N.m)3.9(15N.m)

Notes: QMK series and QMKE series max. difference: QMK series adopts full protection shield; QMKE series adopts semi-protection shield.

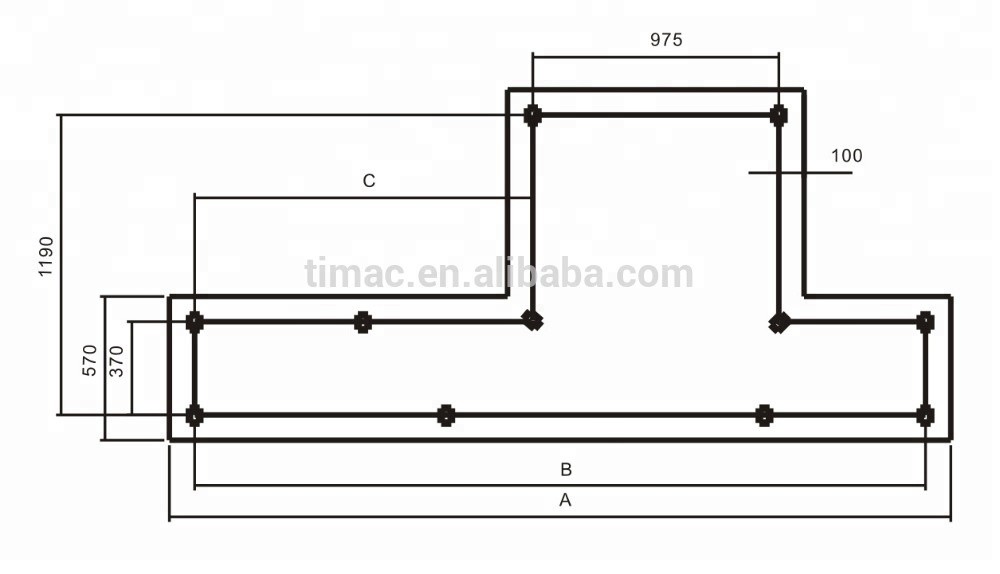

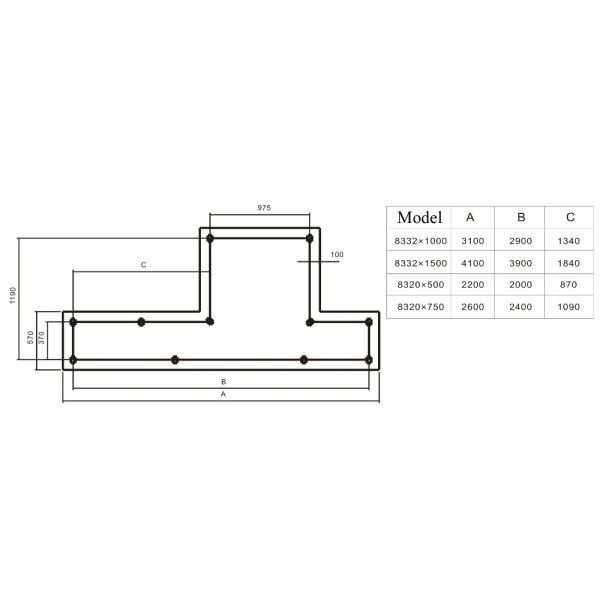

Foundation Drawing

The foundation depth depends upon the soilproperties, but it should be less than 400mm

CNC Camshaft Grinding Machine for Roundness O.D 1.5um and Max. workpiece weight 150kg
