4 KW Small Universal Cylindrical Grinder for Video Technical Support and After Service

Specifications

Type :

Universal

CNC or Not :

Normal

Condition :

New

Year :

2020

Place of Origin :

Henan, China

Brand Name :

TIMAC

Voltage :

as customer's request

Dimension(L*W*H) :

2350mm*2030mm*2050mm

Weight (KG) :

4100

Warranty :

1 Year

Key Selling Points :

Low Noise Level

Showroom Location :

Egypt, Russia, Malaysia, Canada, Kyrgyzstan, Colombia, Kazakhstan, Peru, Italy, Tajikistan, Pakistan, Philippines, Ukraine

Applicable Industries :

Farms, Manufacturing Plant, Home Use, Construction works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops

Marketing Type :

New Product 2020

Machinery Test Report :

Provided

Video outgoing-inspection :

Provided

Warranty of core components :

1 Year

Core Components :

Motor, Bearing, Engine, Gear, Pressure vessel, Gearbox, PLC, Pump

After-sales Service Provided :

Engineers available to service machinery overseas, Online support, Video technical support

Max. Grinding Length :

500-3000 mm

Power(W) :

4 KW

Max. Grinding Diameter :

320 mm

Weight :

4100 KG

After Warranty Service :

Video technical support

Local Service Location :

Spain, Thailand, Italy, Colombia

Certification :

CE & ISO

Packaging Details :

in wooden case (can be fumigated) or in plywood case

Port :

China Port

Supply Ability :

50 Set/Sets per Month

Price :

$45,000.00/sets 1-2 sets

MOQ :

1 set

Description

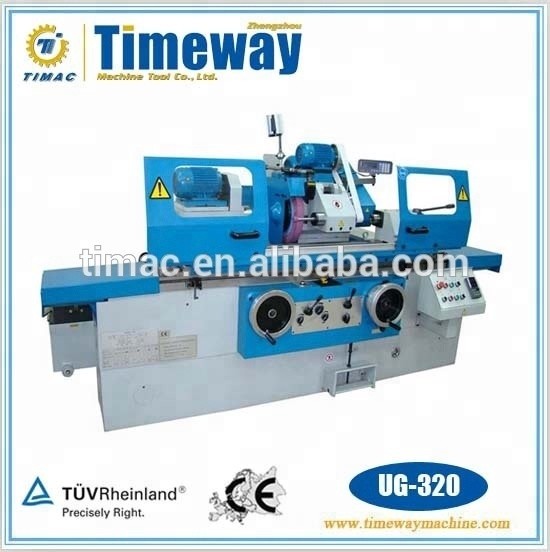

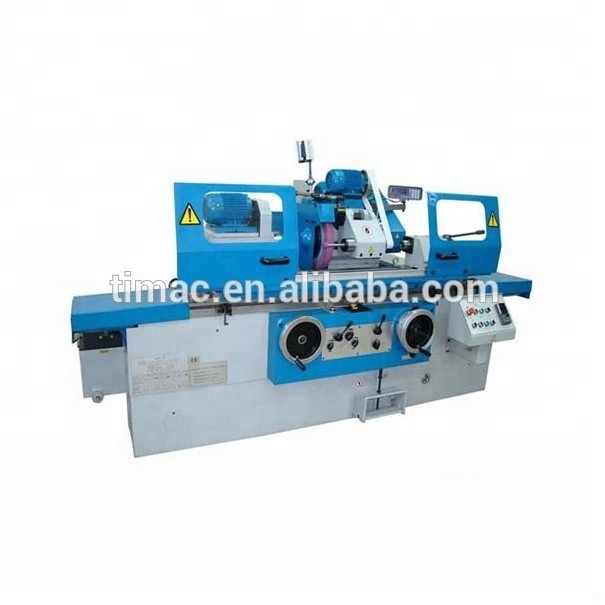

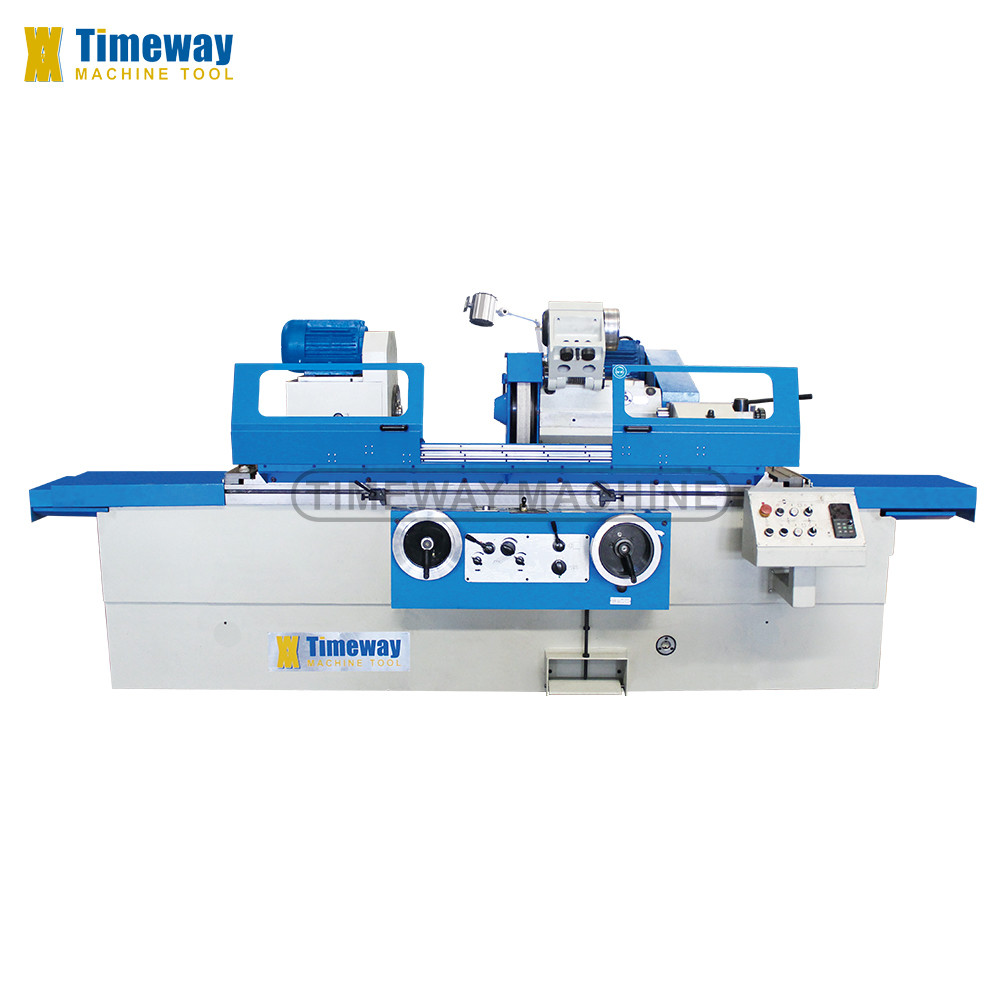

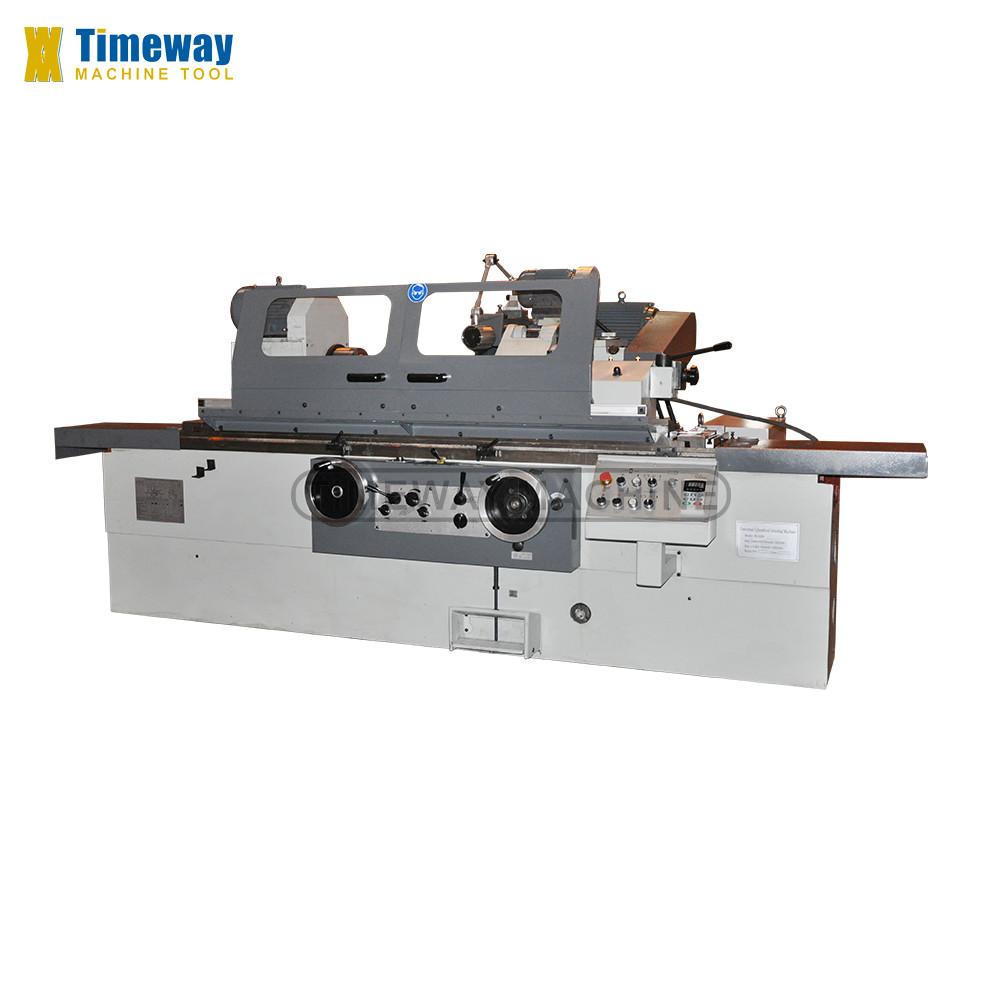

Small Universal Cylindrical Grinder / Internal and External Grinding Machine

Product Description

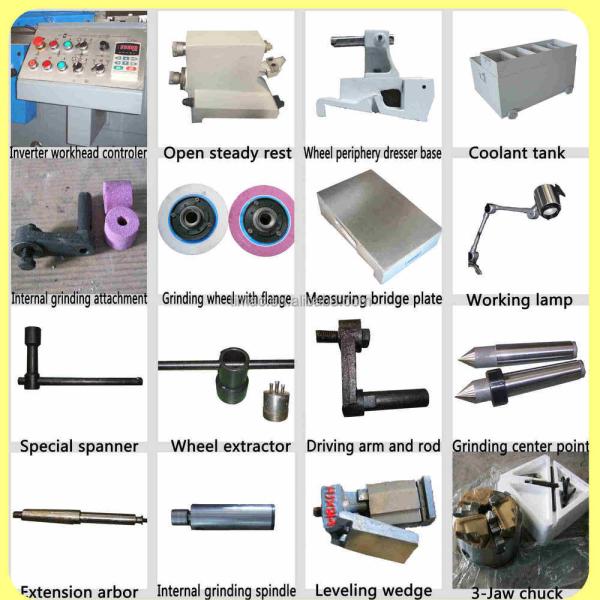

Standard Accessories:

Coolant tank, Wheel periphery dresser base (without diamond pen),Flange and wheel extractor, Standard grinding wheel, Balancing arbor, Working lamp, Leveling wedge, Open steady rest, Operation manual(English edition).

Optional Accessories:

Balance stand, Magnetic separator apparatus, Paper filter apparatus, Center grinding attachment, Close steady rest, End wheel dresser, Radius wheel dresser

Parameter:

Specification		Unit	UG-200	UG-320
* General capacity
Distance between centers		mm	500,750	1000/1500/2000/3000
Center height		mm	135	180
Dia.ground(O.D)		mm	5-200	8-320
DIa.ground(I.D)		mm	25-100	30-100
Max.length to be ground(O.D)		mm	500,750	1000 1500 2000 3000
Max.length to be ground(I.D)		mm	125
Max.weight of workpiece		kg	100	150
* Workhead
Swiveling angle		º	+ 90 º
Center taper(MT)		MT	4
Spindle speed		r/min	50HZ:25-380 stepless	50HZ:25-220 stepless

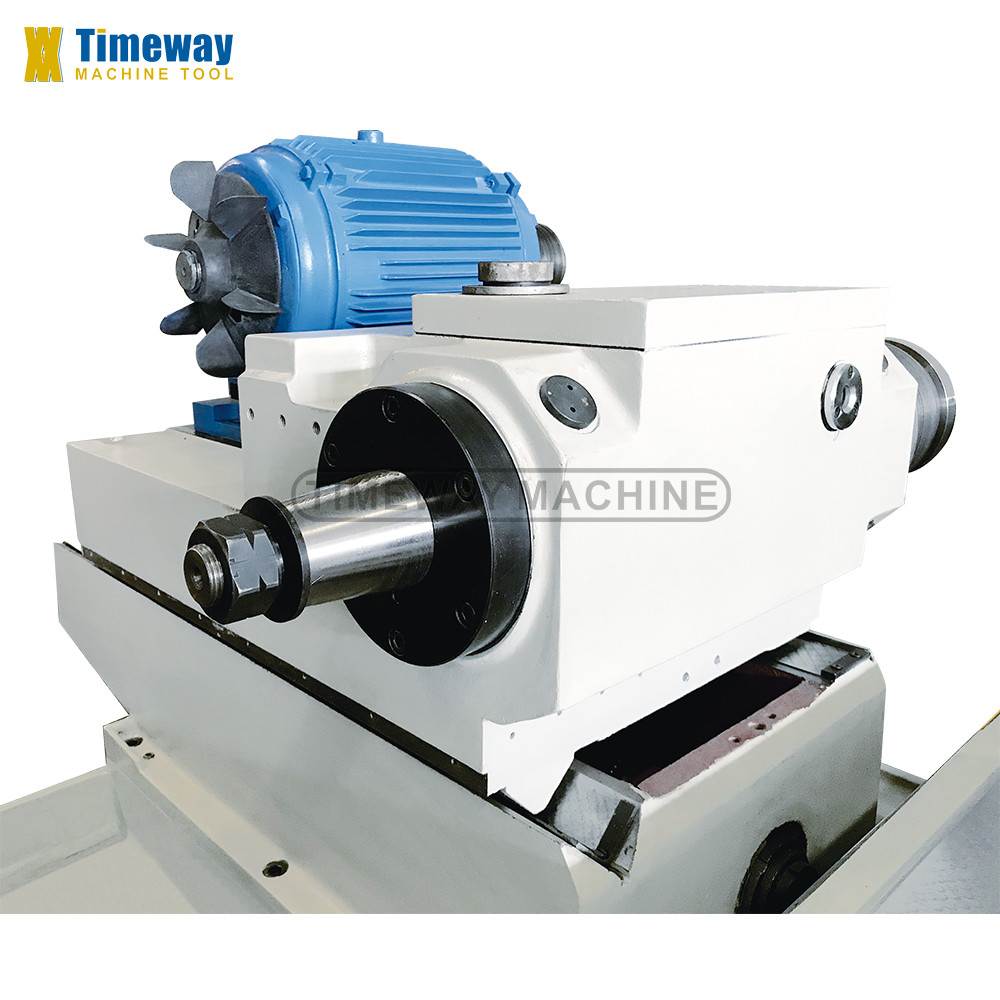

* Wheel head
Spindle speed of wheelhead		r/min	1670
Rapid travel of wheelhead		mm	50
Max.travel		mm	205	246
Swiveling angle		º	±10º	±30º
Hand feed per.rev		mm	rough:2 fine:0.5
Hand feed per.gra		mm	rough:0.01 fine:0.0025
Wheel size(ODXWXID)		mm	400×50×203
Peripheral velocity		m/s	35
* Internal grinding device
Spindle speed		r/min	10000 15000
Dimension of wheel		mm	Max.(50×25×13) Min.(17×20×6)
* Table
Hand feed per.rev		mm	6
Max.. swiveling angle of table	Clockwise	º	3º	3º(1000 1500),2º(2000,3000)
	Anticlockwise	º	9º(500), 8º(750)	7º(1000),6º(1500),5º(2000),3º(3000)
Longitudinal speed range of table		m/min	0.1-4
* Tailstock
Center taper(MT)		MT	4
Quill travel		mm	30
* Motor
Wheelhead motor power		kw	4	5.5
Internal grinding motor power		kw	1.1
Workhead motor power		kw	1.1	1.5
* Machine
Gross weight		T	4.1(500),4.3(750)	5.3(1000),6.1(1500),7.9(2000),9.9(3000)
Packing size(LWH)		cm		322×200×205(1000)
			235×203×205(500)	422×200×205(1500)
			275×203×205(750)	540×200×205(2000)
				739×200×205(3000)

Details of Accessories: 4 KW Small Universal Cylindrical Grinder for Video Technical Support and After Service
