Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
Specifications
Type :
Universal
CNC or Not :
Normal
Condition :
New
Year :
2022
Place of Origin :
China
Brand Name :
TIMAC, TIMEWAY
Voltage :
380V 50Hz
Dimension(L*W*H) :
3000*1800*1650mm
Weight (KG) :
3700
Power (kW) :
6.52
Warranty :
1 Year
Key Selling Points :
High Productivity
Showroom Location :
UAE, Argentina, Australia, Russia, Turkey, United States, Italy, Bangladesh, Indonesia
Applicable Industries :
Manufacturing Plant, Food & Beverage Shops, Construction works , Energy & Mining, Machinery Repair Shops, Building Material Shops, Food & Beverage Factory, Advertising Company, Printing Shops, Garment Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Engine, Gear
Center height :
135mm
Max. workpiece weight :
80kg
Wheel peripheral velocity :
35m/s
Wheel spindle speed :
1670rpm
Internal grinding diameter :
25-100mm
Max. grinding length(I.D) :
125mm
Max. Grinding Length :
750mm
Weight :
3700kg
Max. Grinding Diameter :
200mm
Power :
6.52kw
Packaging Details :
Wood case or wooden pallet
Port :
China port
Supply Ability :
500 Set/Sets per Year
Price :
$19,360.00/sets 1-2 sets
MOQ :
1 set
Description

Newest High Precision Heavy-duty Universal Cylindrical Grinding Machine

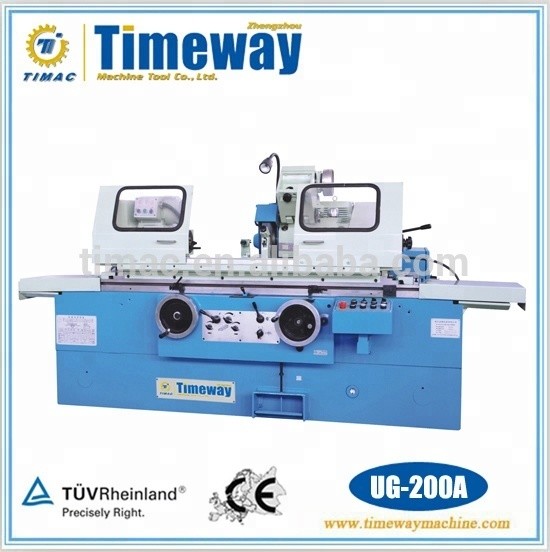

UG-200A G-200A

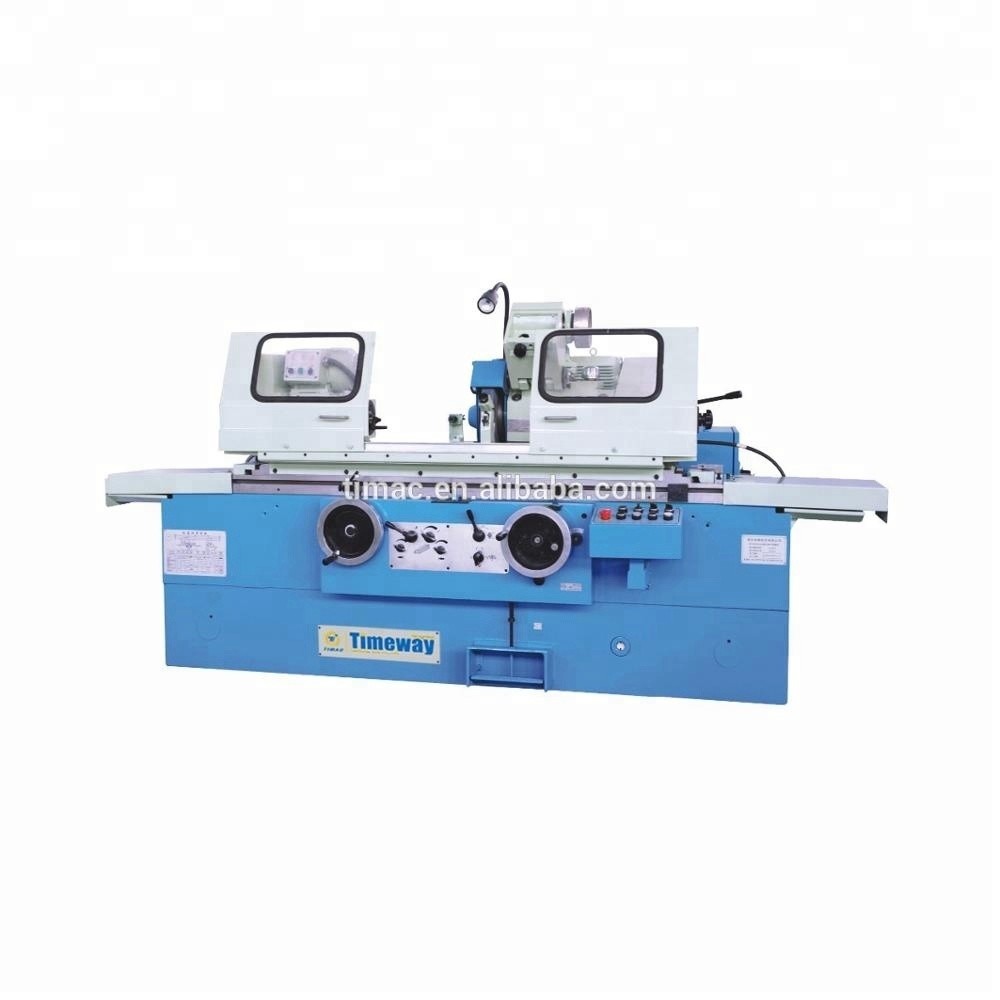

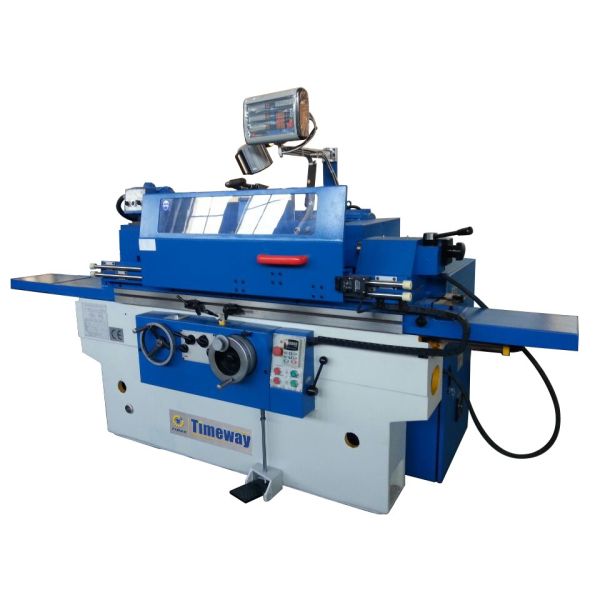

Main Outlook

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing

Main Performances

Main Functions and Features

1. This machine is a major grinder professional advantages of manufacturing units in the G-320, UG-320 type cylindrical grinder on the basis of draw to improve heavy duty grinder, with high cutting precision, high rigidity and high efficiency. Suitable for grinding cylindrical and conical workpiece.
2. The workpiece of machine, cylindrical grinding wheel, the inner circle of the grinding wheel, oil pump and cooling pump by an independent motor drive.
3. The longitudinal movement of the machine table by the hydraulic continuously variable transmission can also be handwheel drive, table lubrication orifice compensated unloading form.
4. Grinding wheel frame transverse feeding fine turning can be made by the hydraulic feed and fast and automatic cycle, two feed hand wheel is also available to achieve the thickness.
5. Grinding wheel rack main shaft diameters, motor power increase, grinding wheel rack oil pool temperature rise is small, high grinding rate.
6. Machine moving parts with electrical, hydraulic and mechanical structure, safe operate.

Oil Cylinder

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing

Main Accessories

  • Cylindrical dresser
  • Wheel balancing disc
  • Complete set of electric equipment
  • Wheel peripheral dresser
  • Wheel hub
  • Wheel balancing arbor
  • Int. gringing attachment
  • Measuring bridge plate
  • Open-type steady rest
  • Leveling wedge

Extra Accessories

  • Wheel balancing stand
  • Radius dresser
  • Close-type center rest
  • Extension bar
Specifications List

Technical Parameters

Specifications Units G-200A UG-200A
Grinding diameter(OD) With steady rest(min./max.) mm 8/60 8/60
Without steady rest(min./max.) mm 8/200 8/200
Grinding diameter(ID) With steady rest(min./max.) mm - 35/100
Without steady rest(min./max.) mm - 25/100
Max. work weight kg 80 80
Max. grinding length O.D mm 500/750 500/750
I.D mm - 125
Center height mm 135 135
Distance between centers mm 500/750 500/750
Grinding wheel dimensions(O.D*W*I.D) mm

Max.Φ400*50*Φ203;

Min.Φ300*50*Φ203

Max.Φ400*50*Φ203;

Min.Φ280*50*Φ203
Peripheral speed of grinding wheel m/s 35 35
Wheel size for int. grinding attachment mm -

Max.Φ50*25*Φ13;

Min.Φ17*20*Φ6
Wheelhead spindle speed rpm 1670 1670
Wheelhead rapid advance & wighdrawal mm 50 50
Total motor power kw 5.43 6.52
Machine dimensions(L*W*H) mm 2500/3000*1800*1650 2500/3000*1800*1650
Machine weight kg 3040/3540 3200/3700
Working Accuracy
O.D roundness um 1.5 1.5
Surface roughness um Ra0.32 Ra0.32
I.D roundness um 2.5 2.5
Uniformwof dia. in longitudinal section um 5 5
O.D roundness by chuck um 2.5 2.5
I.D surface roughness um Ra0.63 Ra0.63

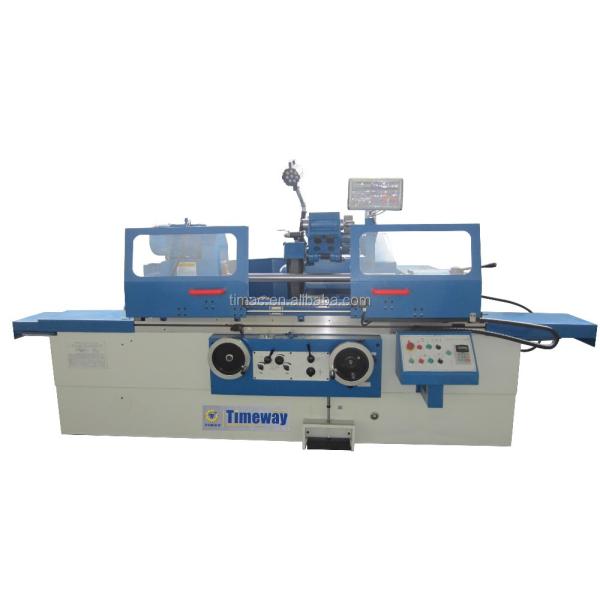

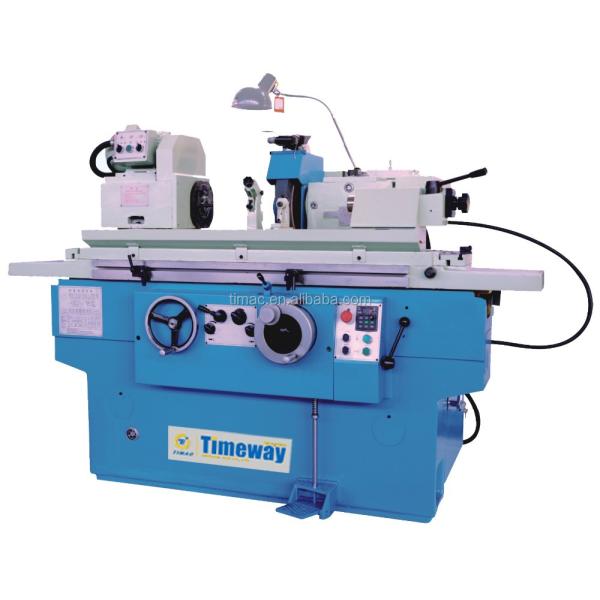

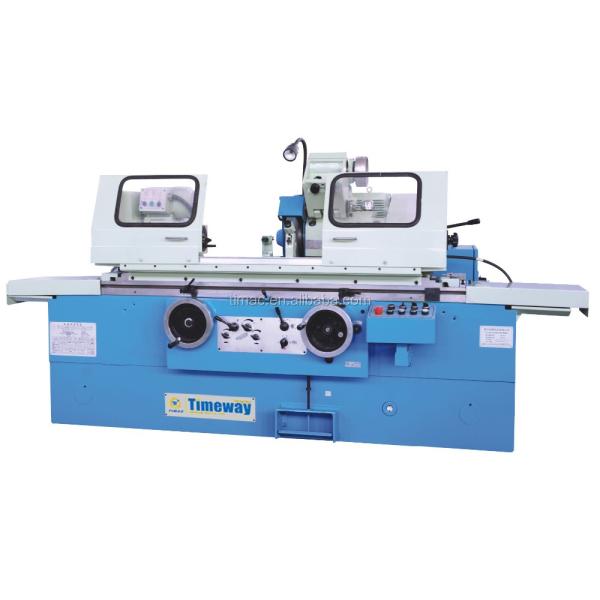

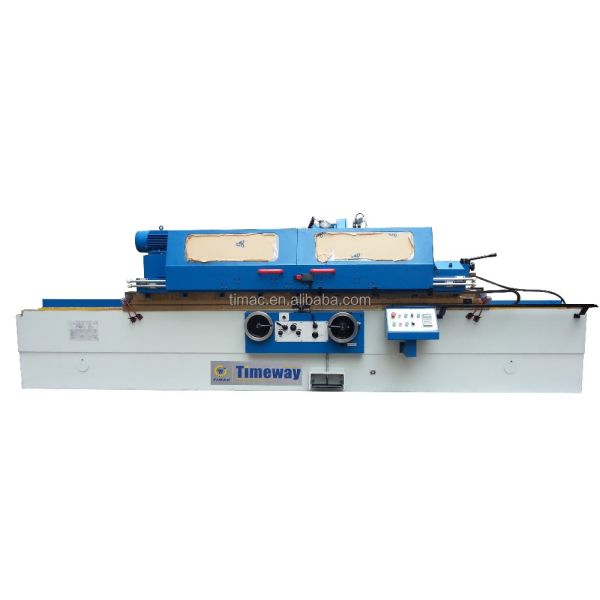

Universal Cylindrical Grinding Machine Series UG-200 UG-320 UG-500

UG-200H*800 UG-200HF*500

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing

UG-320H*1000 UG-320H*2000

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing

Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing Newest Heavy-duty Universal Cylindrical Grinding Machine for Food Beverage Processing
