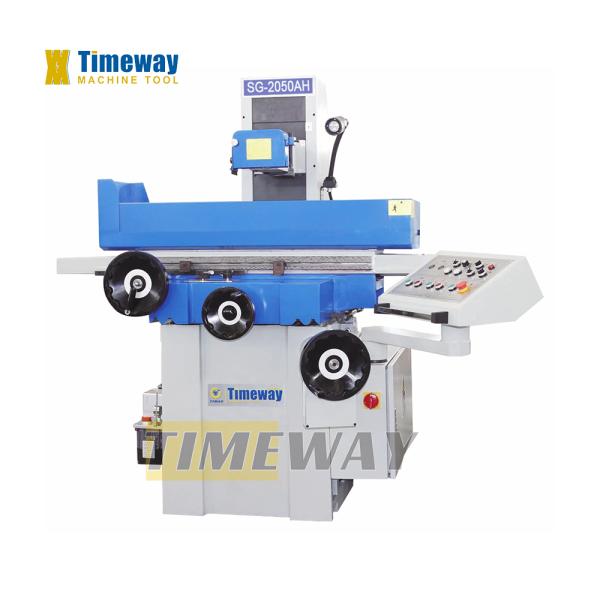

High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
Specifications
CNC or Not :
Normal
Condition :
New
Grinding Length(mm) :
510
Surface Roughness(μm) :
3.2 μm
Table Size(mm) :
200 508mm
Place of Origin :
China
Weight (KG) :
1650
Warranty :
1 Year
Key Selling Points :
High-accuracy
Showroom Location :
Germany, France, Australia, South Africa, Spain, Canada, Russia, Italy, United Kingdom
Marketing Type :
New Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Other
Applicable Industries :
Manufacturing Plant, Energy & Mining, Construction works , Machinery Repair Shops, Building Material Shops
Type :
Surface Grinder
Product name :
Surface Grinder Grinding Machine
After-sales Service Provided :
Online Support
Keywords :
Precision Surface Grinder Machine
Usage :
Surface Grinding
Precision :
High Precision
Advantage :
High Precision
Certification :
CE
Table size :
200 508mm
cnc or not :
no
Price :
$15,666.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description
High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
Specification
Specifications
Unit
SG-2050AH
Table size
mm
200x508
Magnetic chuck size
mm
200x460
Distance from spindle center to table
mm
450
Table cross travel
mm
240
Table longitudinal travel
mm
560
Max. loading capacity(include chuck)
kg
180
Longitudinal feed speed
m/min
5-25
Table cross intermittent feed rate
mm/str
0.1-8
Table cross rapid feed speed
mm/min
990
Table cross feed of handwheel
mm/gra
0.02
Wheelhead vertical rapid feed speed
mm/min
-
Feed of handwheel
mm/gra
0.005
Spindle speed(50/60HZ)
rpm
2850/3450
Grinding wheel size
mm
200x20x31.75
Spindle motor power
kw
2.2
Machine dimensions(LxWxH)
mm
2300x1600x1675
Package dimensions(LxWxH)
mm
2000x2100x2150
Machine weight
kg
1650

STANDARD ACCESSORIES:

Working lamp, Balancing arbor, Standard grinding wheel, Magnetic chuck, etc

OPTIONAL ACCESSORIES:

Diamond pen, Balancing stand, 2 axis digital readout, Extra wheel flange, etc.
