Specifications
CNC or Not :
Normal
Condition :
New
Grinding Length(mm) :
670
Surface Roughness(μm) :
0 μm
Place of Origin :
China
Weight (KG) :
10500
Warranty :
1 Year
Key Selling Points :
High-accuracy
Showroom Location :
Germany, France, Australia, South Africa, Spain, Canada, Russia, Italy, United Kingdom
Marketing Type :
New Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Other
Applicable Industries :
Manufacturing Plant, Energy & Mining, Construction works , Machinery Repair Shops, Building Material Shops
Type :
Surface Grinding Machine
Application :
Suface Grinding
CNC or not :
no
Table size :
810 1600mm
Loading capacity (include chuck) :
2000kg
Spindle speed (50/60HZ) :
Spindle speed (50/60HZ)rpm
Total power :
43kw
Grinding wheel size :
500 75 305mm
Grinding height :
670mm
Function :
Grinding Material
Price :
$25,000.00/sets 1-2 sets
MOQ :
1 set
Description
Product Description

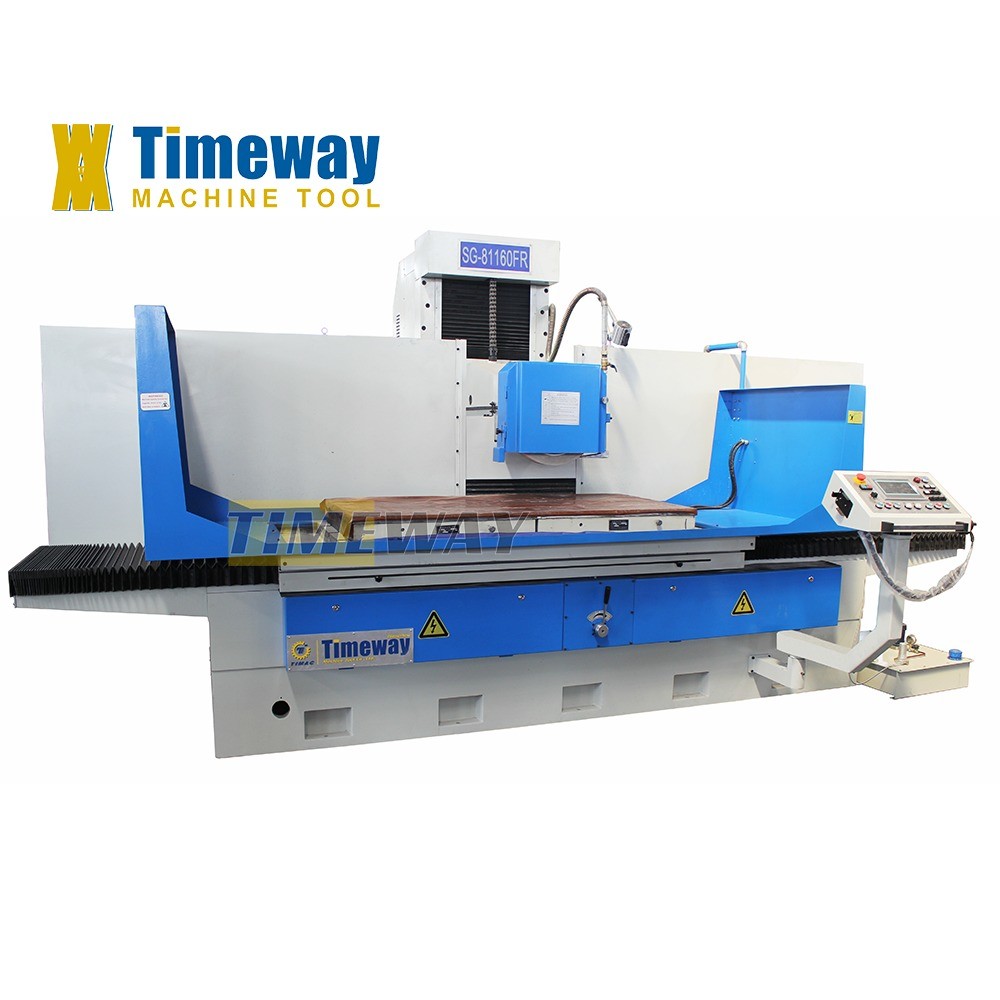

500 75 305mm Grinding Wheel Size Precision Surface Grinder SG-81160FR for Suface Grinding
Specification
Specification
SG-81160FR
Table size
810x1600mm
Grinding area
810x1600mm
Grinding height
810x1600mm
Electro magnetic chuck size (pcs.)
800x800x2mm
Loading capacity (include chuck)
2000kg
Table longitudinal feed speed
5-25m/min
Column cross intermittent feed rate
1-50mm/str
Column cross continuous feed speed
50-2000mm/min
Column cross feed rate (MPG)
50-2000mm/gra
Wheelhead vertical intermittent feed rate
0.005-0.05mm/str
Wheelhead vertical continuous feed speed
50-2000mm/min
Wheelhead vertical feed rate (MPG)
0.005mm/gra
Spindle speed (50/60HZ)
960/1150rpm
Spindle speed (50/60HZ)
Φ500x75xΦ305mm
Main motor power
18.5kw
Hydraulic motor power
7.5kw
Y/Z-axis servo motor power
3kw
Total power
43kw
Machine dimensions (LxWxH)
5300x4450x2500mm
Machine weight
10500kg

STANDARD ACCESSORIES:

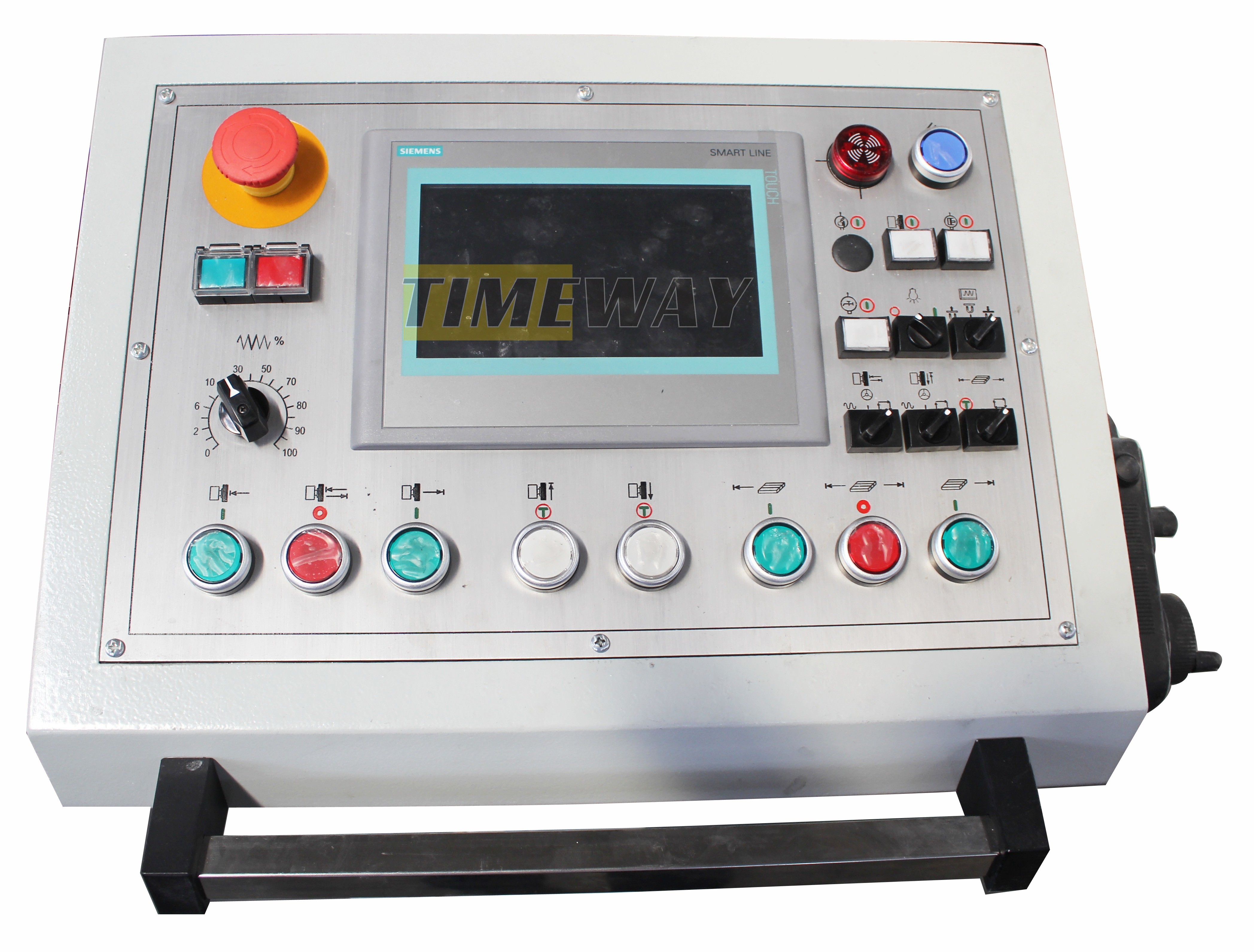

PLC+SMART auto. grinding controller,
Coolant tank,
Work lamp,
Balancing arbor,
Wheel flange and
extractor,
Wheel dresser stand,
Y/Z axis electrical wheel(MPG),
etc.

OPTIONAL ACCESSORIES:

Balancing stand,
Magnetic separator,
Paper filter,
Oil tank guard,
Electrical magnetic chuck,
Built-in magnetic chuck controller,
Parallel wheel dresser,
etc.
