G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
Specifications
Type :
Other
CNC or Not :
Normal
Condition :
New
Year :
2024
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Dimension(L*W*H) :
3260/4260x1900x2050mm
Weight (KG) :
4600
Power (kW) :
1.5/3
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
India, Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Spain, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, United Kingdom, Indonesia
Applicable Industries :
Manufacturing Plant, Construction works , Energy & Mining, Machinery Repair Shops, Building Material Shops, Hotels
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine
Product name :
Grinding Machine
Name :
Cylindrical Grinder
Function :
Grinding Material
Machine Type :
Manual
Precision :
High Precision Machine
Application :
Metal Processing
Advantage :
High Efficiency Easy Operate
Color :
Customized Optional
Dia. ground (O.D) :
8-320mm
Machine motor power :
1.1/3 kw
Price :
$23,900.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
Product Description

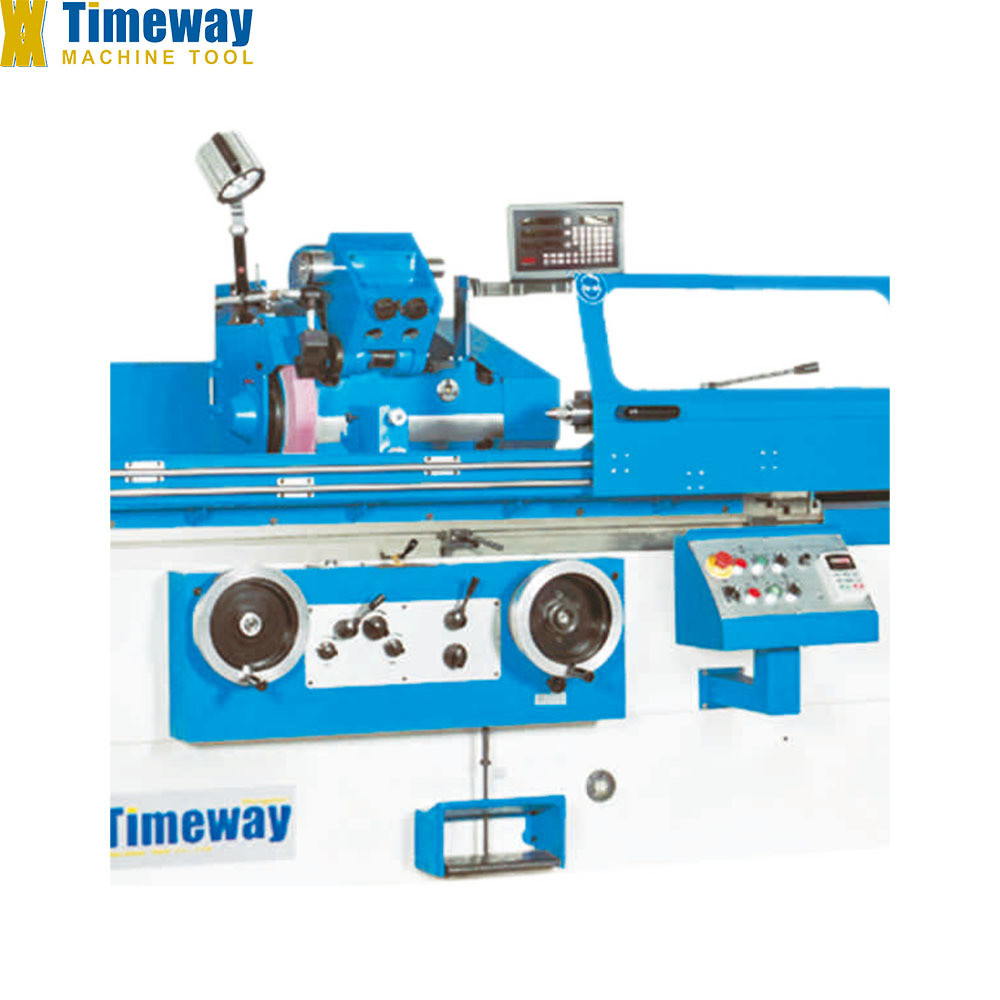

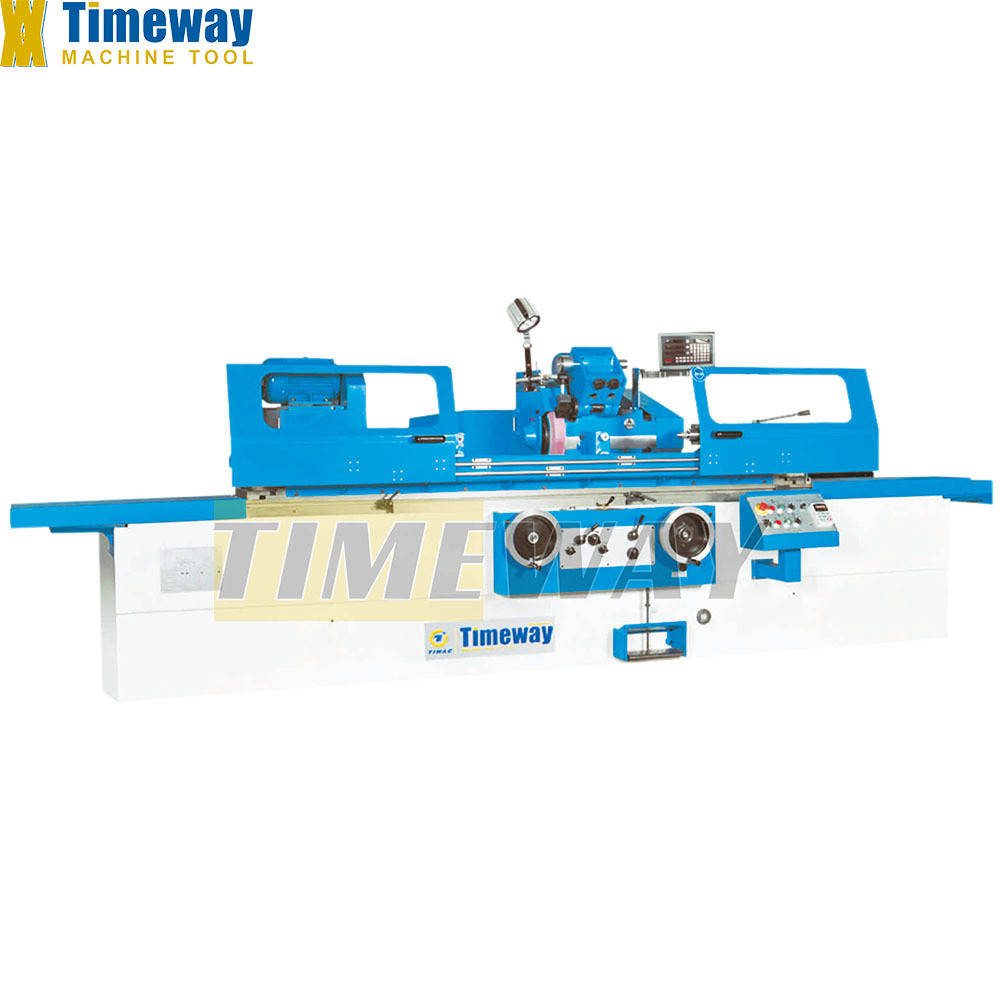

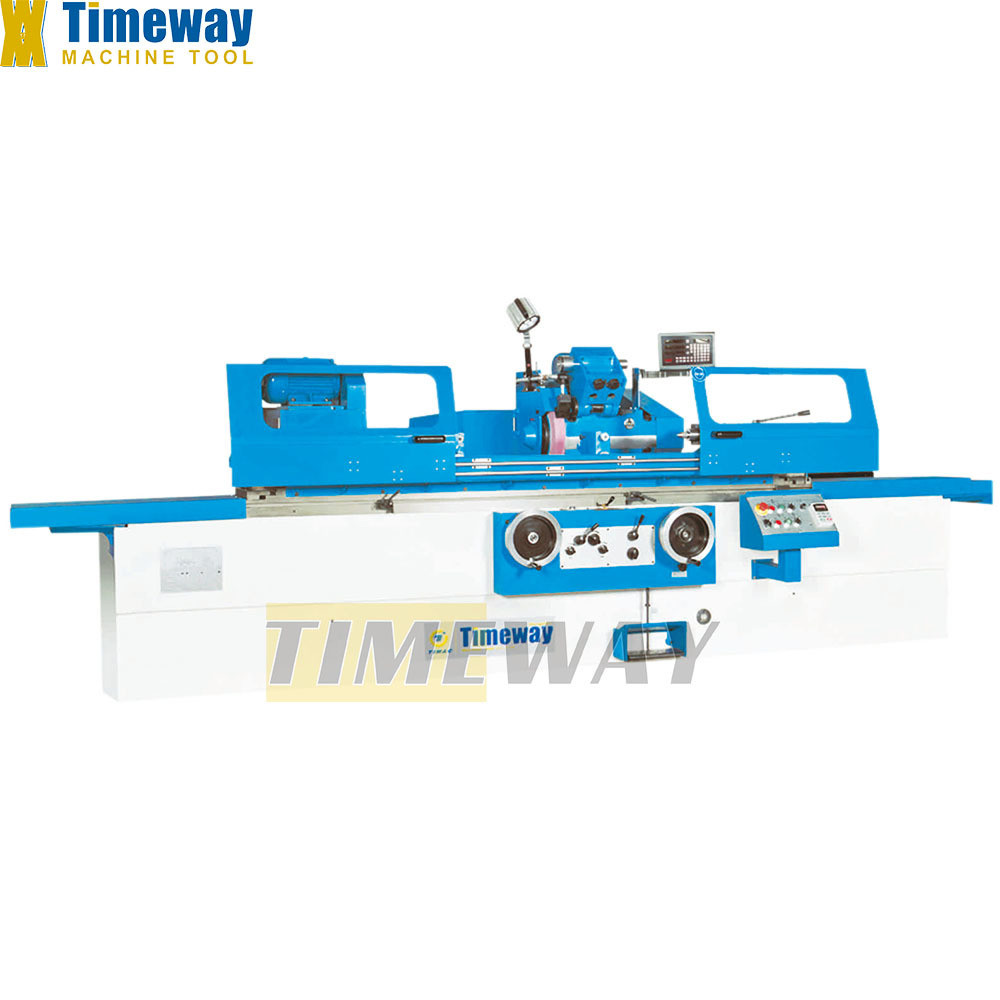

Cylindrical Grinder G-320, G-320A

G-series cylindrical grinder is suitable for grinding outer cylindrical and conical surface;

The workhead spindle, wheelhead spindle, internal grinding spindle, coolant pump, hydrodynamic and hydrostatic oil pump are driven by separate motors.

Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.

The wheel dresser can be mounted on the tailstock.
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation

STANDARD ACCESSORIES:

Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,
Full set tools,
Leveling wedge,
Operation manual (English edition).

OPTIONAL ACCESSORIES:

Balancing stand,
Digital readout,
Close steady rest,
End wheel dresser,
Radius wheel dresser,
Center grinding attachment
Magnetic separator,
Paper filter.
Specification
SPECIFICATION
UNIT
G-320
G-320A
Distance between centers
mm
1000/1500
2000/3000
Center height
mm
180
180
Dia. ground (O.D)
mm
8-320
8-320
Grinding length (O.D)
mm
1000/1500
2000/3000
Loading capacity
kg
150
500
Workhead spindle taper
-
MT5
MT5
Workhead spindle speed
rpm
19-190 (stepless)
10-100 (stepless)
Wheelhead feed of handwheel per rev. (rough/fine)
mm
2/0.5
2/0.5
Wheelhead feed of handwheel per gra. (rough/fine)
mm
0.01/0.0025
0.01/0.0025
External grinding wheel size
mm
600x75x305
600x75x305
Max. peripheral speed of grinding wheel
m/s
35
35
Table feed of handwheel per rev.
mm
6
6
Table swivel angle (CW)
°
3°/3°
3°/3°
Table swivel angle (CCW)
°
7°/6°
5°/3°
Table longitudinal feed speed
m/min
0.1-4
0.1-3
Tailstock quill taper
-
MT4
MT5
Tailstock quill travel
mm
30
30
External grinding motor power
kw
11
11
Workhead motor power
kw
1.5
3
Roundness
um
2.5
3
Cylindricity
um
8
8
Roughness
um
Ra0.2
Ra0.32
Gross weight
kg
4600/5100
6200/7600
Packing size (LxWxH)
mm
3260/4260x1900x2050
5800/7800x1900x2050
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
Factory Display：
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
