Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Specifications
Type :
Other
CNC or Not :
Normal
Condition :
New
Year :
2024
Place of Origin :
Henan, China
Brand Name :
TIMEWAY
Dimension(L*W*H) :
720/876/1100/1270x240x226mm
Weight (KG) :
18000
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
India, Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, Indonesia
Applicable Industries :
Construction works , Energy & Mining, Machinery Repair Shops, Building Material Shops
Marketing Type :
Hot Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine
Product name :
Grinding Machine
Name :
Cylindrical Grinder
Function :
Grinding Material
Machine Type :
Manual
Precision :
High Precision Machine
Application :
Metal Processing
Advantage :
High Efficiency Easy Operate
Color :
Customized Optional
Distance between centers :
2000/3000/4000/5000mm
Center height :
370mm
Price :
$26,600.00/sets 1-2 sets
MOQ :
1 set
Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Product Description

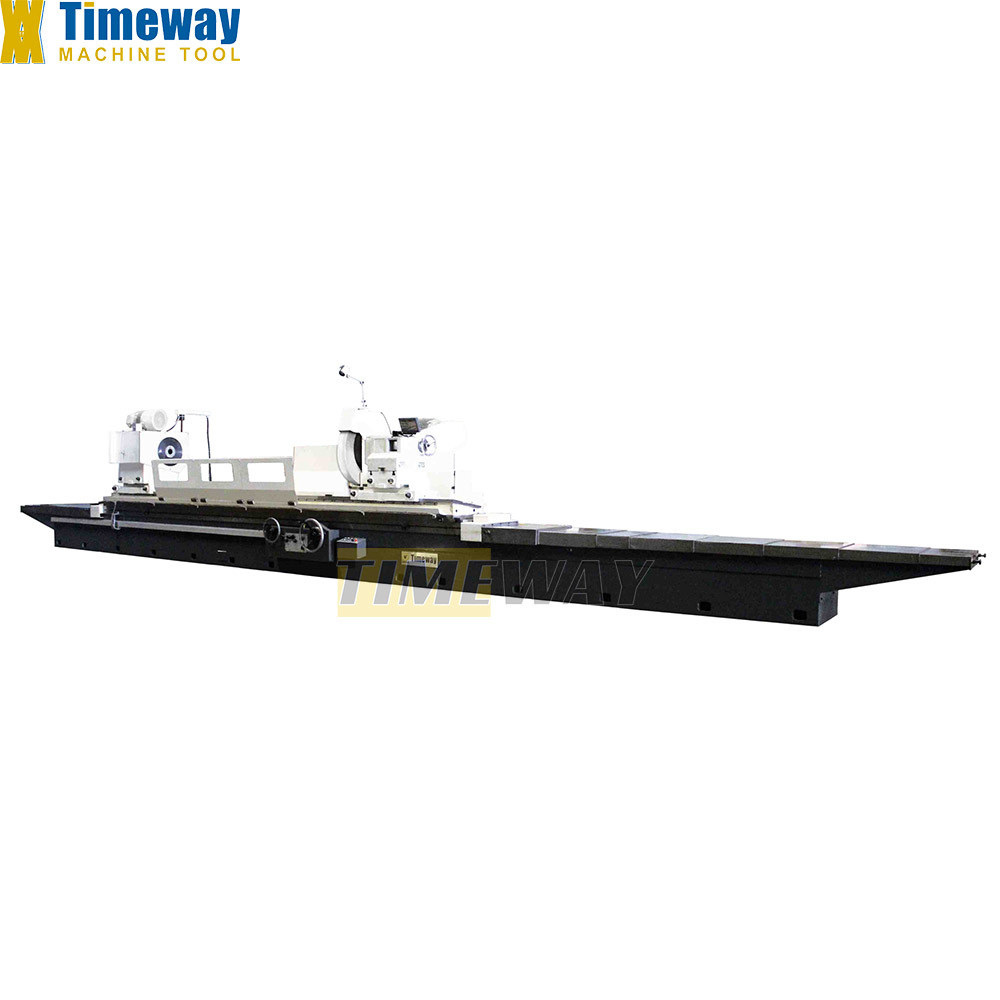

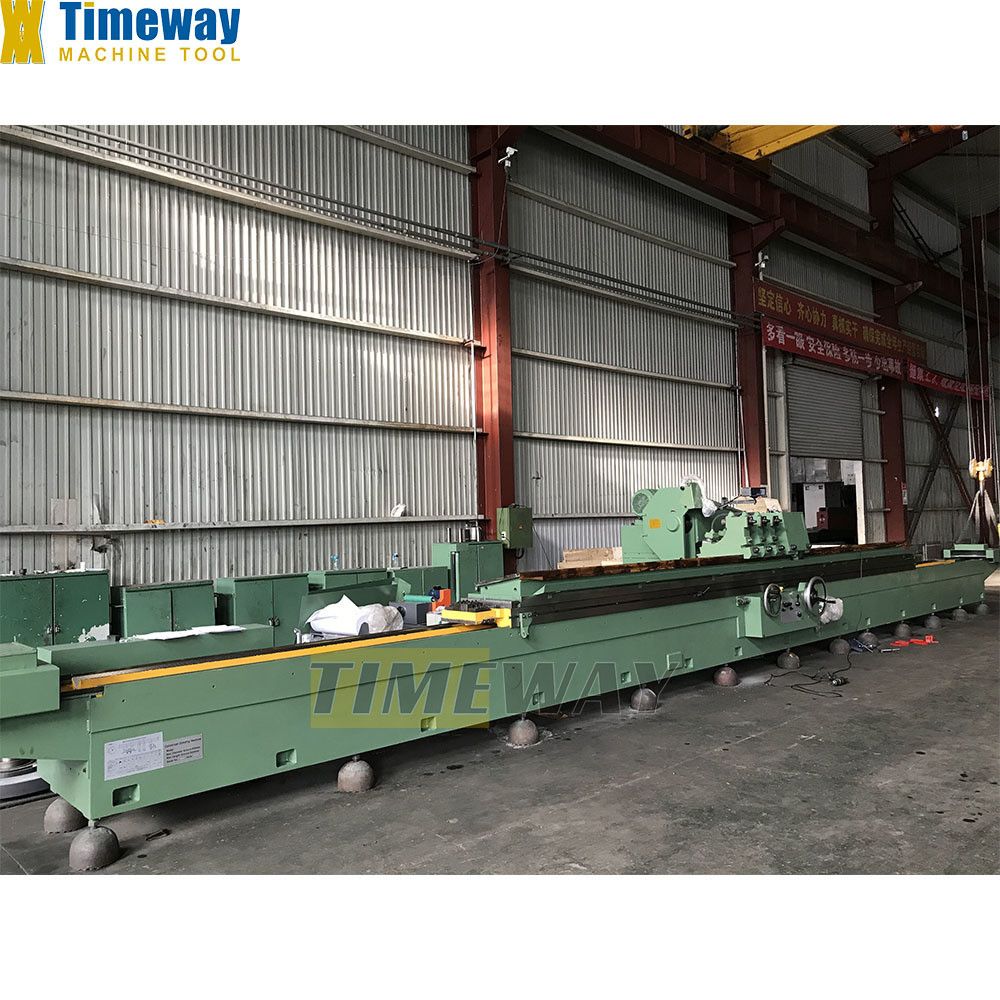

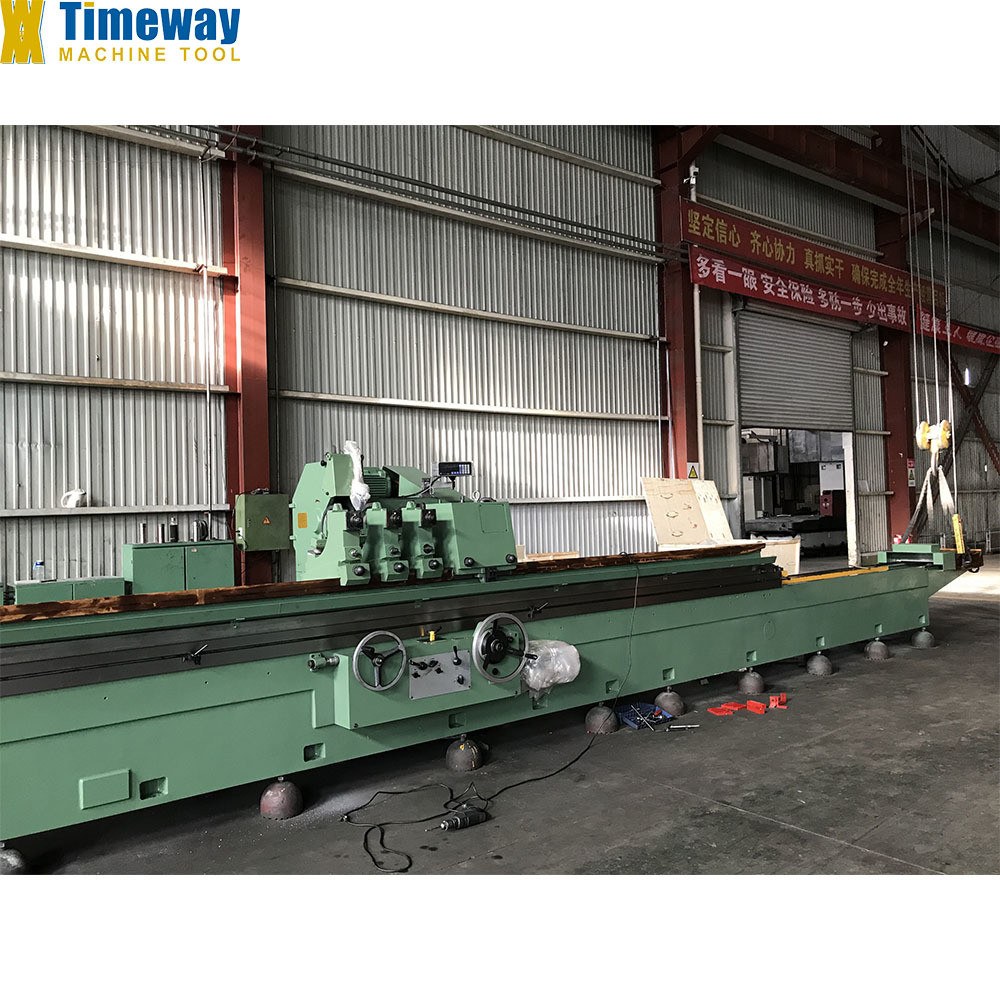

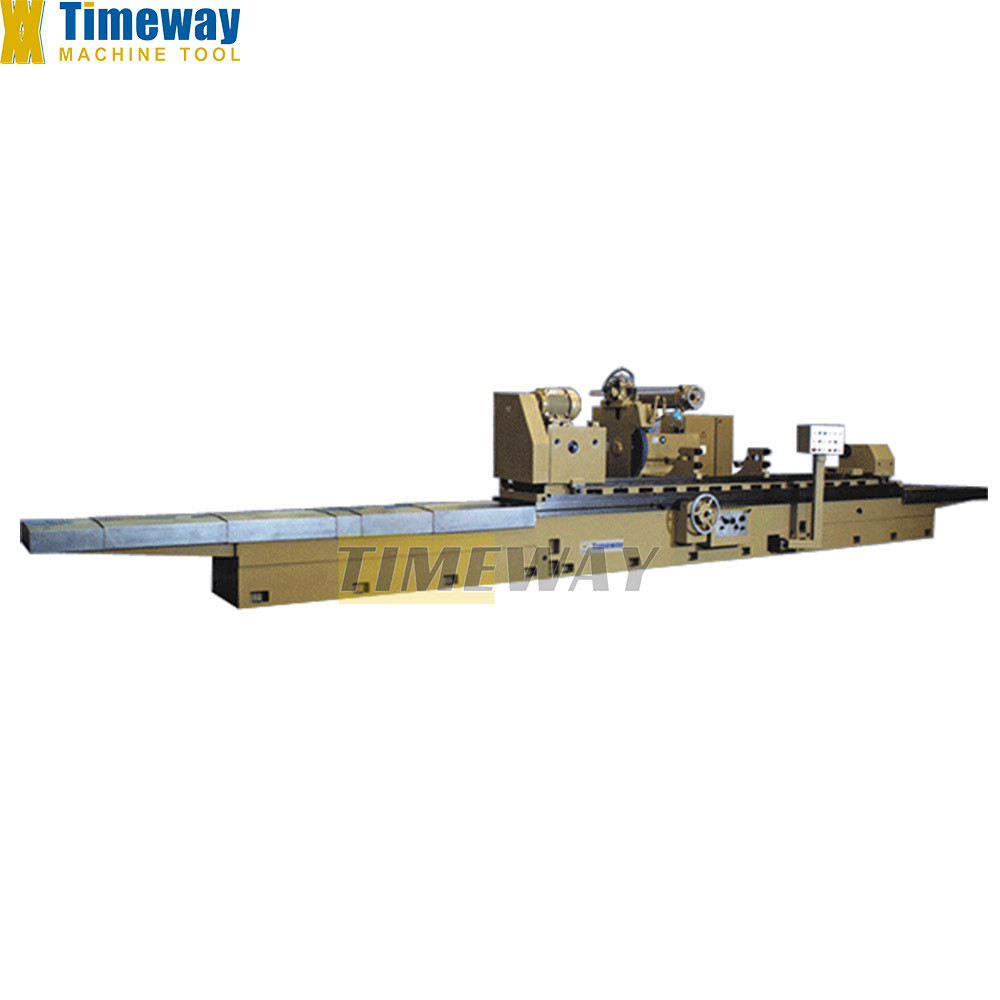

Cylindrical Grinder G-630

1. G-630 cylindrical grinder is suitable for grinding outer cylindrical and conical surface.

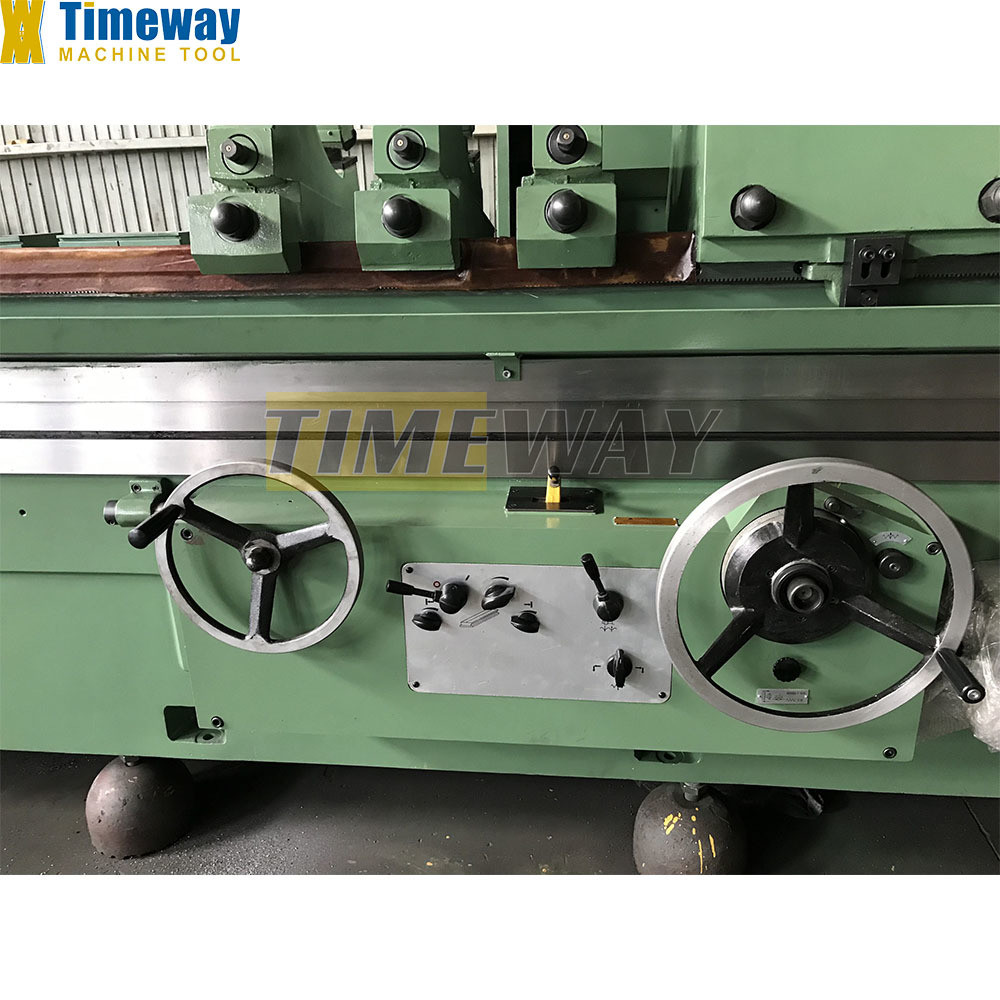

2. The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.

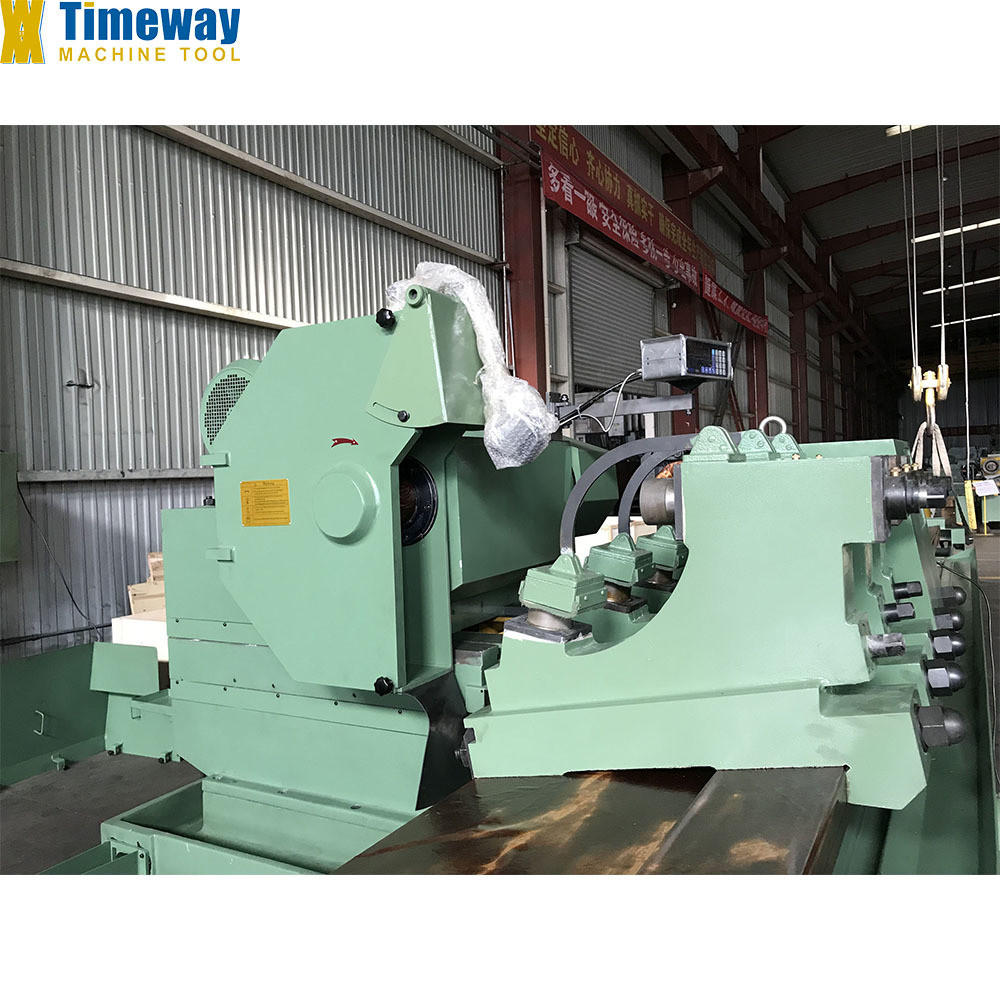

3. The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers

STANDARD ACCESSORIES:

Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,
Internal grinding attachment (UG),
3-jaw chuck (UG),
Extension shaft(UG),
Internal grinding wheel (UG),
Full set tools,
Leveling wedge,
Operation manual (English edition).

OPTIONAL ACCESSORIES:

Balancing stand,
Digital readout,
Close steady rest,
End wheel dresser,
Radius wheel dresser,
Center grinding attachment (G),
Magnetic separator,
Paper filter.
Specification
SPECIFICATION
UNIT
G-630

Distance between centers
mm
2000/3000/4000/5000
Center height
mm
370
Dia. ground (O.D)
mm
30-630
Grinding length (O.D)
mm
2000/3000/4000/500
Loading capacity
kg
3000
Workhead spindle taper
-
Metric 80
Workhead spindle speed
rpm
6-60 (stepless)
Wheelhead feed of handwheel per rev. (rough/fine)
mm
4/0.5
Wheelhead feed of handwheel per gra. (rough/fine)
mm
0.02/0.0025
External grinding wheel size
mm
750x75x305
Max. peripheral speed of grinding wheel
m/s
35
Table feed of handwheel per rev.
mm
5
Table swivel angle (CW)
°
2°/1° /1°/1°
Table swivel angle (CCW)
°
4°/3° /2° /1.5°
Table longitudinal feed speed
m/min
0.1-2.5
Tailstock quill taper
-
Metric 80
Tailstock quill travel
mm
70
External grinding motor power
kw
22
Workhead motor power
kw
15
Roundness
um
3
Cylindricity
um
8/8/8/12
Roughness
um
Ra0.32
Gross weight
kg
18/22/23/26
Packing size (LxWxH)
mm
720/876/1100/1270x240x226
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Factory Display：
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
