Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Specifications
Type :
Universal
CNC or Not :
Normal
Condition :
New
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
220/380 V
Dimension(L*W*H) :
2500 (3000) x1600x1500 mm
Weight (KG) :
2500
Power (kW) :
5.625 kw
Warranty :
1 Year
Key Selling Points :
High-accuracy
Showroom Location :
India, Kenya, Australia, Russia, Kyrgyzstan, Colombia, Thailand, Tajikistan, Philippines, Ukraine, Saudi Arabia
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Other
Machine Type :
Cylindrical Grinding Machine
Key words :
Grinding Machine
Model :
G-200H
Dia. ground (O.D) :
8~200 mm
Center height :
135 mm
Workhead spindle speed :
25~380 rpm
Loading capacity :
50 kg
Machine motor power :
5.625 kw
Machine dimemsions (L*W*H) :
2500 (3000) *1600*1500 mm
Machine weight :
2500 (3000) kg
Packaging Details :
Wooden cases(can be fumigated)
Port :
China Port
Supply Ability :
150 Set/Sets per Month
Price :
$18,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Newly Released Metal Grinding Machine for Your Production Line

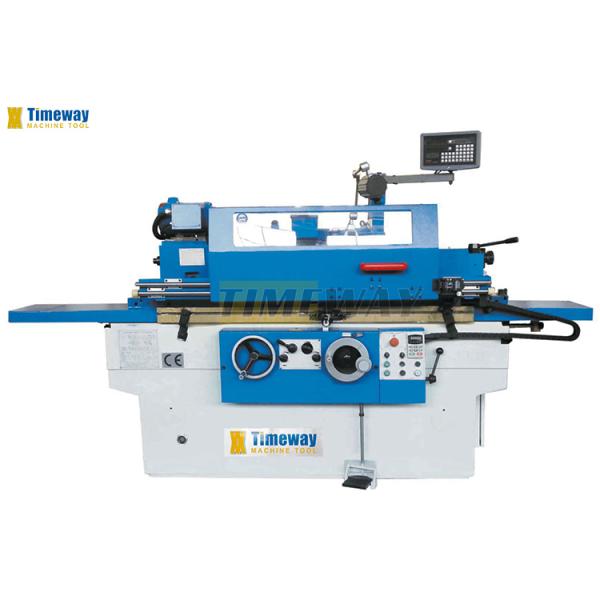

* G-200H and UG-200H cylindrical grinding machine is suitable for outside grinding operations up to 200 mm in diameter. UG-200H comes complete with an inside grinding device to increase the application range significantly. Most commonly this model is used in machine construction, tool and mould shaping and in the production of small series.
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Specification
Unit
G-200H
UG-200H
Dia. ground (O.D)
mm
8-200
8-200
Dia. ground (I.D)
mm
-
13-100
Center height
mm
135
135
Workhead spindle speed
rpm
25~380
25~380
Max. table travel
mm
650 (950)
650 (950)
Table hydraulic feed speed
m/min
0.1~4
0.1~4
Loading capacity
kg
50
50
Grinding length (O.D/I.D)
mm
500/- (800/-)
500/125 (800/125)
Table swivel angle
°
-5~+9° (-3~+7°)
-5~+9° (-3~+7°)
Max. peripheral speed of grinding wheel
m/s
38
38
External wheel size
mm
Max: Ф400x50xФ203; Min: Ф280x50xФ203
Max: Ф400x50xФ203; Min: Ф280x50xФ203
Internal grinding spindle speed
rpm
-
16000
Workhead and tailstock center
-
MT4
MT4
Machine motor power
kw
5.625
5.625
Roundness (O.D/I.D)
um
1.5
1.5/2.5
Roughness (O.D/I.D)
um
Ra0.32
Ra0.32/Ra0.63
Unifomity of dia.in longitudinal section
um
5
5/8
Machine dimemsions (LxWxH)
mm
2500 (3000)x1600x1500
2500 (3000) x1600x1500
Machine weight
kg
2500 (3000)
2500 (3000)
Newly Released Metal Grinding Machine for Your Production Line
· Grinding wheel,
· Grinding wheel flange,
· Three jaw chuck (UG),
· Driving dog,
· Arbor for internal grinding (UG),
· Grinding wheel dresser,
· Wheel balancing arbor,
· Open type steady rest,
· Dead centers,
· Frequency inverter,
· Coolant system,
· Work lamp,
· Leveling wedge,
· Operation manual.
· Wheel balancing stand,
· Radius dresser,
· Close type center rest,
· Digital readout,
· Paper filter,
· Magnetic separator.
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Why Choose Us
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Newly Released Metal Grinding Machine for Your Production Line
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
