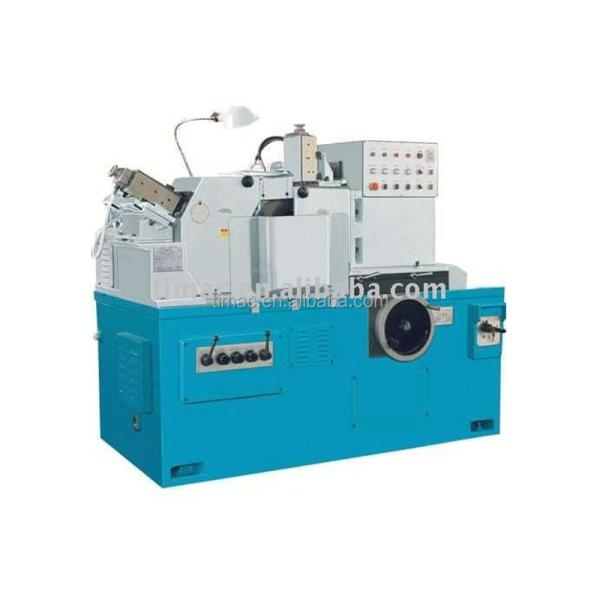

Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding
Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding
Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding
Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding
Specifications
Type :
Knife grinder
CNC or Not :
Normal
Condition :
New
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220v
Dimension(L*W*H) :
1550x1300x1400mm
Weight (KG) :
2000
Power (kW) :
7.5
Warranty :
1 Year
Key Selling Points :
High Productivity
Showroom Location :
Russia, Turkey, Thailand, Uzbekistan
Applicable Industries :
Manufacturing Plant, Energy & Mining, Machinery Repair Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Other
After-sales Service Provided :
Engineers available to service machinery overseas
machine tool :
Centerless grinder
Max. Grinding Length :
140mm
Max. Grinding Diameter :
40mm
Power :
7.5kw
Weight :
2000kg
Certification :
C E
Warranty period :
1 year
Packaging Details :
In plywood cases.
Port :
China port
Supply Ability :
200 Set/Sets per Month .
Price :
$19,200.00/sets >=1 sets
MOQ :
1 set
Description

Centerless Grinder Centerless Grinding MachineTM1040A

Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

Features:

* The layout of the machine is that its grinding wheelhead is fixed and regulating wheelhead is movable.
* The grinding wheel spindle is supported on multiple-segment hydrodynamic oil-film bearings and designed in cantilever structure, featuring convernien in changing grinding wheel
* AC frequency converter is used for changing the regulating wheel speed infinitely
* The machine is equipped with a plunge-cut mechanism.

Applications:

The machine is mainly used for through-feed grinding of cylindrical surface of ring and shaft-type parts, as well as for plunge-cut grinding of various stepped, conicaland cylindrical surface in semi-automatically.

Specification

Unit

TM1040A

Grinding diameter

For through feed grinding

mm

2-40

For infeed grinding

mm

7-40

Max.grinding length with standard work rest

For through feed grinding

mm

140

For infeed grinding

mm

120

Griding wheel specifications

mm

P350x125x127

Regulating wheel specifications

mm

PSA250x125x75

Grinding wheel speed

r/min

1870

Regulating wheel speed

r/min

10-180 stepless

Swiveling angle of regulating wheel

in vertical plane

degree

-2~+4

in horizontal plane

degree

0~+3

Feed amount per division of feed handwheel

mm

0.002

Feed amount per division of the dresser

mm

0.01

Height of centerliness of two wheels to the bottom of work-rest

mm

190

Height of centerliness of two wheels to the floor

mm

985

Total power

kw

7.5

Power of grinding wheel motor

kw

1.5

Power of regulating wheel motor

3N-50HZ 380V

Overall dimesion(LxWxH)

mm

1550x1300x1400

Machine weight

kg

2000

Grinding accuracy

Roundness

0.002mm

Cylindricity

0.003mm

Surface roughness

0.32um
Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

Company Introduction

Centerless Grinding MachineTM1040A The Perfect Machine for Precision GrindingCenterless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

Customer Visiting

Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

Exhibition&Training

Centerless Grinding MachineTM1040A The Perfect Machine for Precision Grinding

FAQ

Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
