Specifications
Grinding Diameter(Outer)(mm) :
500
Grinding Diameter(Inner)(mm) :
200
Grinding Length(mm) :
750
Max. Length of Workpiece (mm) :
3000
Max. Weight of Workpiece(kg) :
200
Center Height (mm) :
135
Wheel Size(mm) :
400x50x203
Wheel Speed (rpm) :
380
Table Travel (X) (mm) :
50
Table Travel (Y) (mm) :
205
Surface Roughness(μm) :
0.4
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
220V/380V
Dimension(L*W*H) :
as require
Weight (KG) :
3000
Power (kW) :
4
Key Selling Points :
Competitive Price
Warranty :
1 Year
Showroom Location :
Romania, Australia, Canada, United States, United Kingdom
Applicable Industries :
Manufacturing Plant, Building Material Shops, Advertising Company
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Gearbox, Engine, Gear, Pressure vessel, Pump, Other
Condition :
New
CNC or Not :
Normal
Function :
Grinding
Keyword :
Standard Cylindrical Grinder
Warranty period :
1 year
Distance between centers :
500/750mm
Max. length ground (O.D) :
500/750mm
Max. length ground (I.D) :
100mm
Center height :
135
Roughness of the surface :
Ra0.40
Dia. Ground (O.D) :
5-200
Dia. Ground (I.D) :
25-100
Packaging Details :
Wooden case(Can be fumigated)
Supply Ability :
300 Set/Sets per Month
Price :
$50,000.00/sets 1-2 sets
MOQ :
1 set
Description

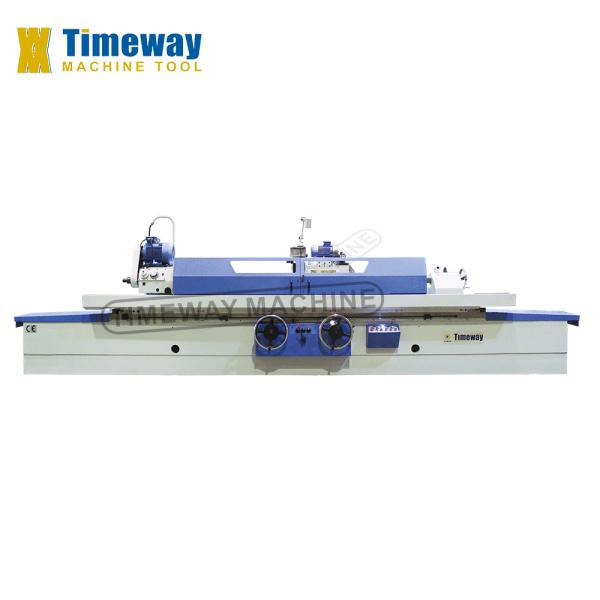

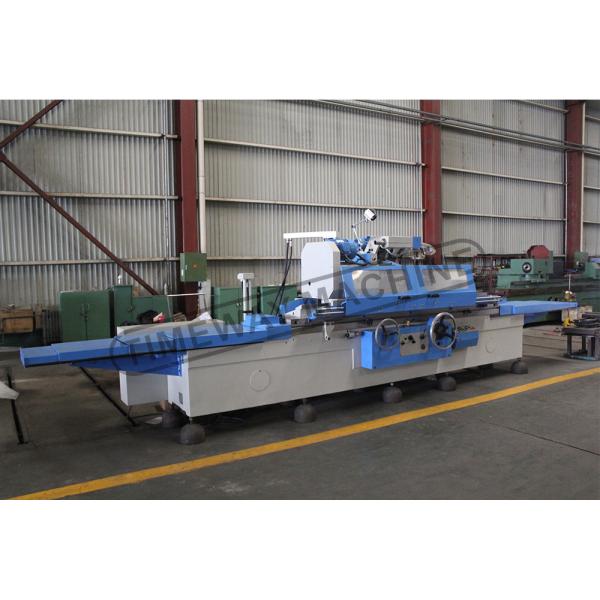

Universal Cylindrical Grinding Machine UG-200, G-320

Powerful 4kW Universal Cylindrical Grinding Machine UG-200 G-320 for Precise Grinding

Model Unit G-200 UG-200 G-320 UG-320
General capacity
Distance between centers mm 500/750 500/750 1000/1500/2000/3000 1000/1500/2000/3000
Center height mm 135 135 180 180
Dia. Ground (O.D) mm 5-200 5-200 8-320 8-320
Dia. Ground (I.D) mm - 25-100 - 30-100
Max. length ground (O.D) mm 500/750 500/750 1000/1500/2000/3000 1000/1500/2000/3000
Max. length ground (I.D) mm - 100 - 125
Max weight of work piece Kg - 100 150 150
Workhead
Swiveling angle ° - +90 ° - +90 °
Center taper (MT) MT 4 4 5 4
Spindle speed r/min 50HZ:25-380 50HZ:25-380 26,52,90,130,180,260 50HZ:25-220
Wheel head
Wheel spindle speed rpm 1335 1670 110 1670
Wheelhead rapid travel mm 50 50 50 50
Max. travel mm 205 205 235 246
Swiveling angle ° - ±30° - ±30°
Wheel size(ODxWxID) mm 500x50x203 400x50x203 600x63x305 400x50x203
Peripheral speed m/s 35 35 35 35
Internal grinding device
Spindle speed r/min - 10000 - 10000
Wheel size mm - Max:35x25x10, Min:17x20x6 - Max:50x25x13, Min:17x20x6
Table
Hand feed per. rev mm 6 6 6 6
Max. swiveling angle clockwise ° 3 ° 3 ° 3 °(1000/1500)/2 °(2000/3000)
anticlockwise ° 9 °(500)/8 °(750) 7°(1000)/6°(1500)/5°(2000)/3°(3000)
Longitudinal feed speed m/min 0.1-4 0.1-4 0.1-4 0.1-4
Tailstock
Center tape (MT) MT 4 4 4 4
Quill travel mm 30 30 30 30
Motor
Wheelhead motor power kw 5.5 4 11 5.5
Internal grinding kw - 1.1 - 1.1
Workhead motor power kw 0.75 0.75 0.75/1.5 1.5
Machine
Gross weight T. 4/4.2 4.1/4.3 5.3/6.1/7.9/9.9
Packing dimension cm 260/300x203x205 260/300x203x205 322/422/540/739x200x205
