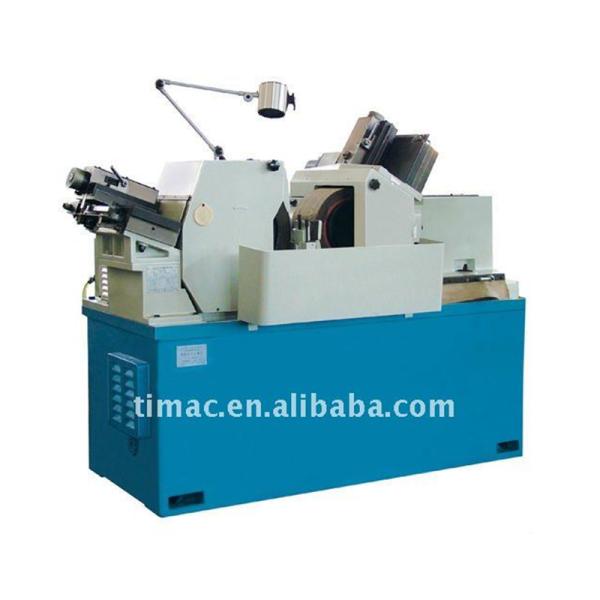

10kW Power High Precision Centerless Grinder TM1020G for Fast and Accurate Grinding
10kW Power High Precision Centerless Grinder TM1020G for Fast and Accurate Grinding
Specifications
Type :
Centerless grinder
CNC or Not :
Normal
Condition :
New
Wheel Size(mm) :
350x125x203mm
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220/380V
Dimension(L*W*H) :
1800x2150x1350
Weight (KG) :
2000
Power (kW) :
10
Warranty :
1 Year, 1 year
Key Selling Points :
High Productivity
Showroom Location :
France, Viet Nam, South Africa, Russia, Turkey, Kazakhstan
Applicable Industries :
Manufacturing Plant, Construction works , Machinery Repair Shops, Advertising Company
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Engine, Other
After-sales Service Provided :
Online support
machine tool :
centerless grinder
Max. Grinding Diameter :
20mm
Power :
10kw
Weight :
2000kg
Certification :
ISO, CE Standard
Packaging Details :
In plywood cases.
Port :
China port
Supply Ability :
400 Set/Sets per Month .
Price :
$24,857.00/sets 1-2 sets
MOQ :
1 set
Description

High-precision Centerless Grinder

10kW Power High Precision Centerless Grinder TM1020G for Fast and Accurate Grinding

Features:

* The layout of the machine is that its grinding wheelhead is fixed and regulating wheelhead is movable.
* The grinding wheel spindle is supported on multiple-segment hydrodynamic oil-film bearings and designed in cantilever structure, featuring convernien in changing grinding wheel
* AC frequency converter is used for changing the regulating wheel speed infinitely
* The machine is equipped with a plunge-cut mechanism.
* A stepping motor or servomotor is used for the feed movement of the regulating wheel.
* Cooling system equipped with auto dual-filtering device with papefilter and magnetic separator.

Specification

Unit

TM1020G

Grinding diameter

For through feed grinding

mm

0.5-20

For infeed grinding

mm

3-20

Max.grinding length with standard work rest

For through feed grinding

mm

100

For infeed grinding

mm

95

Griding wheel specifications

mm

P350x125x203

Regulating wheel specifications

mm

PSA250x125x127

Grinding wheel speed

r/min

1870

Reegulating wheel speed

r/min

20-210 stepless

Swiveling angle of regulating wheel

in vertical plane

degree

-1~+4

in horizontal plane

degree

-1~+3

Feed amount per division of feed handwheel

mm

0.002

Height of centerliness of two wheels to the bottom of work-rest

mm

155

Power of grinding wheel motor

kw

10

Overall dimesion(LxWxH)

mm

1800x2150x1350

Machine weight

kg

2000

Grinding accuracy

Roundness

0.001mm

Cylindricity

0.003mm

Surface roughness

0.16um
