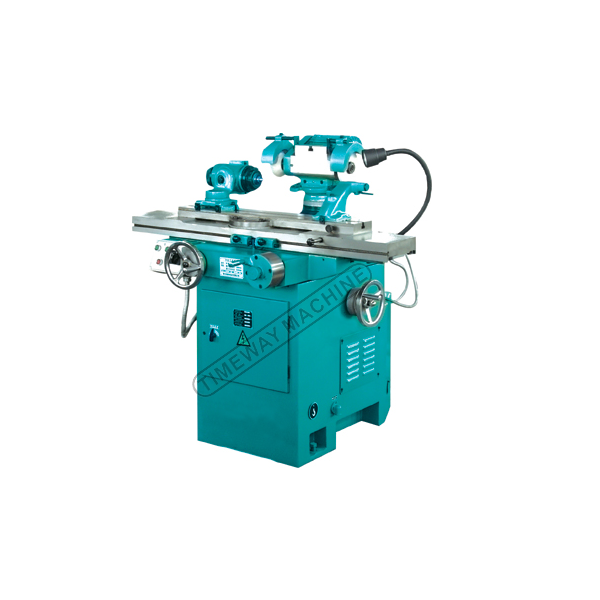

Competitive Metal Universal Tool Grinding Machine with Vertical Slide Travel of 230mm
Competitive Metal Universal Tool Grinding Machine with Vertical Slide Travel of 230mm
Competitive Metal Universal Tool Grinding Machine with Vertical Slide Travel of 230mm
Competitive Metal Universal Tool Grinding Machine with Vertical Slide Travel of 230mm
Specifications
Type :
Knife grinder
CNC or Not :
Normal
Condition :
New
Place of Origin :
China
Brand Name :
TIMAC
Voltage :
as require
Dimension(L*W*H) :
1820x1550x1640mm
Weight (KG) :
1100
Power (kW) :
3.15KW
Warranty :
1 Year
Key Selling Points :
Competitive Price
Showroom Location :
Russia, Turkey, Peru, Chile, Brazil, Algeria
Applicable Industries :
Manufacturing Plant, Retail, Machinery Repair Shops, Building Material Shops
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Other
UNIVERSAL TOOL GRINDER :
TOOL GRINDING
Max.Workpiece diameter :
250mm
Vertical slide travel :
230mm
Cross slide travel :
250mm
Warranty period :
1year
Packaging Details :
WOODEN CASE(CAN BE FUMIGATED)
Port :
ANY CHINA PORT
Supply Ability :
100 Set/Sets per Month
Price :
$6,000.00/sets 1-2 sets
MOQ :
1 set
Description

UNIVERSAL TOOL GRINDING MACHINE

Competitive Metal Universal Tool Grinding Machine with Vertical Slide Travel of 230mm

1. SHARPENING END MILLING CUTTER

2. SHARPENING CONE REAMER

Specification MA6025 MAY6025 MAG6025 MAYG6025
Distance bewteen workhead nd tailstock centers 545mm
Distance bewteen left tailstock and right tailstock centers 650mm
Max.Workpiece diameter 250mm
Height of centers 130mm
Max.lenth for cylindrical grinding 270
Work table travel by hand 400mm
Work table travel by hydraulically 400mm 400mm
Swivel range of table to eight side ±45°
Vertical/Cross slide travel 230/250mm
Vertical movement speed of wheelhead by power 280mm/min
Max./min distance between table surface and grinfing spindle 298/48mm
Horizontal swivel range of wheelhead 360°
Grinding spindle inclinable ±15°
Grinding spindle speed 2700, 4000, 5500rpm
Tota power 3.15KW
Overall dimensions 1340×1320×1320mm
Size of case 1820×1550×1640mm
Gross weight/Net weight(kg) 1300/1100 1300/1150 1300/1150 1350/1250

STANDARD ACCESSORIES:

1set-Universalworkhead
1set-Left-head tailstock
1set-Center gauge
1set-Wheel dresser
3set-wheel guards
1set-Right gand tailstock
1set-Universal
1set-Machine vice
1set-Wheel balancing stand
5set-Grinding wheels and Frange
1set-Extender spindle

OPTIONAL ACCESSORIES:

1 set-Helical grinding accessories
1Set-Universal wheel dresser
1 set drill grinding attachment
1set-Taper reamer grinding attachment
1Set-Three-jaw chuck
1set-Circulay permanent-magnetic chuck
1set-Universal revtangular permanent- magnetic chuck
1set-Dust extractor
1set-Wet grinding equipment
1set-Extended grinding wheel spindle
14Piece-Spring collet chuck
1set-Worktable micro-feeding mechanism
1set-Worktable longitudinal digital display unit
1set-Double end side wheel dresser
1set-Griudg tachment for spcerical cutters
1set presition wheel dresser
1set universal grinding head

WORK ACCURACY:

Work Accuracy MA6025 MAY6025 MAG6025 MAGY6025
Linearity 00.005mm 0.003mm
Roughness of surface Ra:0.63µm Ra:0.32µm

Why Choose Us
Why choose TIMEWAY MACHINE?

1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 70 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving.
