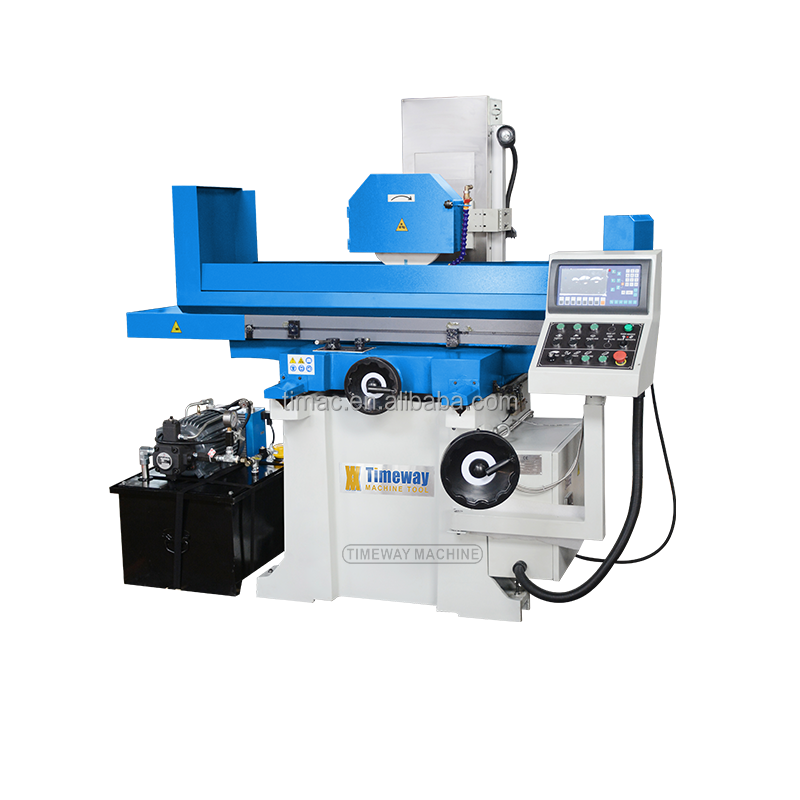

Hydraulic Surface Grinding Machine with 3 mpa Pressure and Stable Performance
Hydraulic Surface Grinding Machine with 3 mpa Pressure and Stable Performance
Hydraulic Surface Grinding Machine with 3 mpa Pressure and Stable Performance
Hydraulic Surface Grinding Machine with 3 mpa Pressure and Stable Performance
Specifications
Type :
Universal, Surface Grinding Machine
CNC or Not :
Normal
Condition :
New
Place of Origin :
Henan, China
Brand Name :
TIMAC
Voltage :
220/380V
Weight (KG) :
1300
Warranty :
1 Year
Key Selling Points :
High-accuracy
Showroom Location :
India, Mexico, South Africa, Morocco, Thailand, Indonesia
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Marketing Type :
Hot Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine, Gear, Other
After-sales Service Provided :
Online support
Max. Grinding Length :
630mm
Power :
2200 kw
Certification :
CE ISO
Warranty period :
1 year
Spindle motor :
40 w
Working pressure :
3 mpa
Coolant pump :
40w
Net weight :
1200kg
Packaging Details :
wooden case
Port :
China Port
Supply Ability :
300 Set/Sets per Month
Price :
$28,500.00/sets 1-2 sets
MOQ :
1 set
Description

Product Description

Hydraulic Surface Grinding Machine

Features:

*The manual surface grinding machine adopt the V-type guide, bring transmission by synchronous belt. *Meanwhile, the machine adopt the exceeding precise P4 level ball bearing for spindle, having complete attachment with electromagnetic chuck or the dense chuck of permanent magnetism.

*The machine have the simple and convenient operation, low noise, high precision for processing, steady mechanical performance, reliable hydraulic system of table longitudinal movement.

Hydraulic Surface Grinding Machine with 3 mpa Pressure and Stable Performance

Model

Unit

MY300

MY300A

Table Size(L×W)

mm

600×300

750×300

Max. table travel

mm

630×320

780×320

Max. workpiece to be ground

mm

630×310

780×310

Max. distance of table to spindle center

mm

550

550

Table slide-way

V-type rail with steel ball

Double V-type rail

Cross feed on handwheel per revolution

mm

2.5

2.5

per graduation

mm

0.02

0.02

Vertical feed on handwheel per revolution

mm

1.25

2

per graduation

mm

0.01

0.01

Wheel speed

r.p.m

2850

1450

Wheel size(dia.×width×bore )

mm

200×20×31.75

250×25×76

Spindle motor

w

2200

2200

Hydraulic station motor

w

1500

2250

Working pressure

mpa

3

4

Max. flow

l/min

20

18

Fuel tank capacity

l

80

80

Coolant pump

w

40

40

Net weight / Gross weight

kg

1200/1330

1300/1430

Overall dimension(L×W×H)

m

1.90×1.53×1.83

1.88×1.48×1.85

Packing size(L×W×H)

m

1.98×1.53×2.03

1.91×1.50×2.03

Standard Accessories:

Tool box, Balancing stand/balancing bar, Handwheel nut, Flange wrench, Screwdriver, Balancing screw, Open-end wrench, Inner hexagon spanner, Wheel dresser holder, Machine stand pad, Wheel flange, Wheel dresser, Chuck.

Optional Accessories:

Tiltable permanent chuck, Demagnetizer, Overhead parallel dresser, Angle dresser, Radius dresser, Precision vice, Dust suction device, Digital readout system, Working light, Wheel flange.
