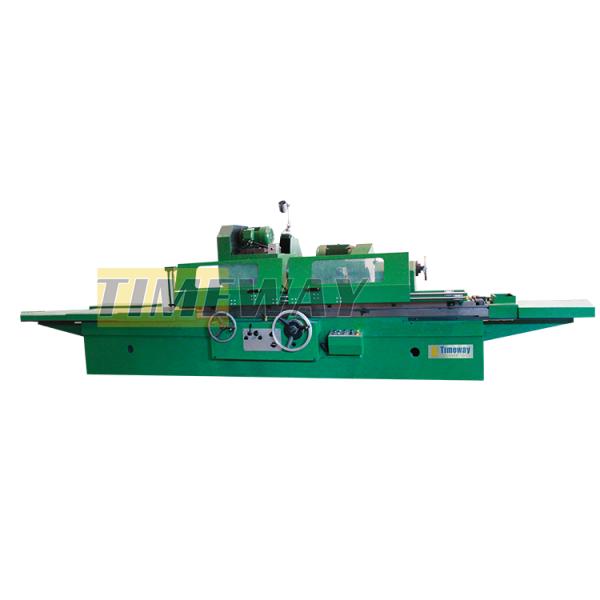

Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Specifications
Grinding Diameter(Outer)(mm) :
800
Grinding Length(mm) :
5000
Max. Length of Workpiece (mm) :
5000
Max. Weight of Workpiece(kg) :
3000
Center Height (mm) :
500
Wheel Size(mm) :
900*75*305mm
Wheel Speed (rpm) :
100
Place of Origin :
Henan, China
Brand Name :
timeway
Voltage :
220/380v
Dimension(L*W*H) :
1500*260*230
Weight (KG) :
41000
Power (kW) :
22
Key Selling Points :
Competitive Price
Warranty :
1 Year
Showroom Location :
Mexico, Turkey, Kyrgyzstan, Colombia, Uzbekistan, Tajikistan, Peru, Sri Lanka, Algeria, Chile
Applicable Industries :
Energy & Mining, Construction works , Building Material Shops, Printing Shops
Marketing Type :
New Product 2023
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Bearing, Gearbox, Engine, Gear
Condition :
New
CNC or Not :
Normal
Product name :
Cylinder Grinding Machine
Machine Type :
Cylindrical Griding Machine
Model :
G-800
COLOR :
Customized Optional
Max length ground(O.D) :
3000/4000/5000mm
Motor :
22kw
After-sales Service Provided :
1 year
Packing size :
890/1100/1500*260*230mm
Workhead motor power :
15kw
MAX WEIGHT OF WORK PIECE :
3000kg
Price :
$48,000.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
Features:
* G-630/G-800 cylindrical grinder is suitable for grinding outer surface of cylinder and taper; UG-630 universal cylindrical grinder is suitable for grinding outer and inner surface of cylinder and taper. * The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.
* The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
* The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.
* The spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
* The workhead adopts inverter motor to realize stepless speed adjustment.
* For UG-630, spindle of workhead adopts liding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.
* For UG-630, the workhead can be rotate to any position within its conterclock direction 90°, so it can be suitable for grinding inner or outer surface of taper.
* For UG-630, the cylindrical grinding machine has internal grinding apparatus, internal grinding spindle is supported by precise roll-bearing.
* The workhead spindle, wheelhead spindle, internal grinding spindle, coolent pump, hydrodynamic and hydrostatic oilpump are driven by separate motors.
* Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
* The wheel dresser can be assembled on the worktable surface of on the tailstock.
Specification
Specifications
Unit
G-630
G-800
General capacity
Distance between centers
mm
2000/3000/4000/5000
3000/4000/5000
Center height
mm
350
500
Dia. Ground (O.D)
mm
30-630
50-800
Max. length ground (O.D)
mm
3000/4000
3000/4000/5000
Max. weight of workpiece
kg
1500
3000
Workhead
Center taper
-
MT6
Metric 80
Spindle speed (stepless)
rpm
10-100
10-100
Wheelhead
Wheel spindle speed
rpm
870
870
Wheelhead rapid travel
mm
100
100
Max. travel
mm
438
550
Hand feed per.rev (rough/fine)
mm
4/0.5
4/0.5
Hand feed per.gra (rough/fine)
mm
0.02/0.0025
0.02/0.0025
Wheel size (ODxWxID)
mm
750x75x305
750x75x305
Peripheral velocity
m/s
35
35
Table
Hand feed per.rev
mm
5
5
Max.swiveling angle of table (CW)
°
2°/2° /1°/1°
1° /1°/1°
Max.swiveling angle of table (CCW)
°
5°/3° /2°/1.5°
3° / 2° /1.5°
Longitudinal speed range of table
m/min
0.1-3
0.1-2.5
Tailstock
Center taper
-
MT6
Metric 80
Quill travel
mm
70
70
Others
Wheelhead motor power
kw
18.5
22
Workhead motor power
kw
5.5
15
Gross weight
kg
13.5/17.5
27/29/31
Packing dimensions (LxWxH)
cm
785/1000x228x210
890/1100x260x230
Accessories
Internal Grinding Machine with 15kw Workhead Motor Power and 900*75*305mm Wheel Size
· Measuring bridge plate
· Open steady rest
· Wheel flange
· Wheel extractor
· Balancing arbor
· Grinding wheel
· Coolant tank
· Carbide tripped center
· Driving dog
· Wheel dresser (Without diamond pen)
· Work lamp
· Levelling wedge
· Internal grinding attachment (UG)
· 3-jaw chuck (UG)
· Extension shaft (UG)
· Internal grinding wheel (UG)
· Full set tools
· Operation manual (English edition)
· Balancing stand
· Radius wheel dresser
· Close steady rest
· Digital readout
· Paper filter
· Magnetic separator
· Center grinding attachment
· End wheel dresser
