SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
Specifications
Grinding Diameter(Outer)(mm) :
200
Grinding Length(mm) :
800
Max. Length of Workpiece (mm) :
850
Max. Weight of Workpiece(kg) :
50
Center Height (mm) :
135
Wheel Size(mm) :
400
Wheel Speed (rpm) :
2130
Roundness(mm) :
1.5
Surface Roughness(μm) :
0.32
Year :
2022
Place of Origin :
China
Brand Name :
TIMEWAY
Voltage :
As cunstomer's required
Dimension(L*W*H) :
3000 x1600x1500mm
Weight (KG) :
3000
Power (kW) :
10.825
Key Selling Points :
Competitive Price
Warranty :
1 Year
Showroom Location :
India, Indonesia, UAE, Germany, Mexico, France, Australia, Morocco, South Africa, Egypt, South Korea, Russia, Malaysia, Turkey, United States, Uzbekistan, Thailand, Peru, Italy, Ukraine, United Kingdom, Chile, Pakistan
Applicable Industries :
Manufacturing Plant, Energy & Mining, Construction works
Marketing Type :
New Product 2019
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Engine, Other
Condition :
New
CNC or Not :
CNC
Diameter of grinding :
8-200mm
Headstock center :
MT4
Tailstock center :
MT4
Grinding wheel size :
400x50x203
X-axis min.feed unit :
0.001mm
Z-axis min.feed unit :
0.001mm
Longitudinal servo motor power :
1.6kw
Cross servo motor power :
1.6kw
Type :
CNC
Loading capacity :
50kg
Packaging Details :
Wooden cases(can be fumigated)
Supply Ability :
150 Set/Sets per Month
Price :
$29,999.00/sets 1-2 sets
MOQ :
1 set
Description
Products Description
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight

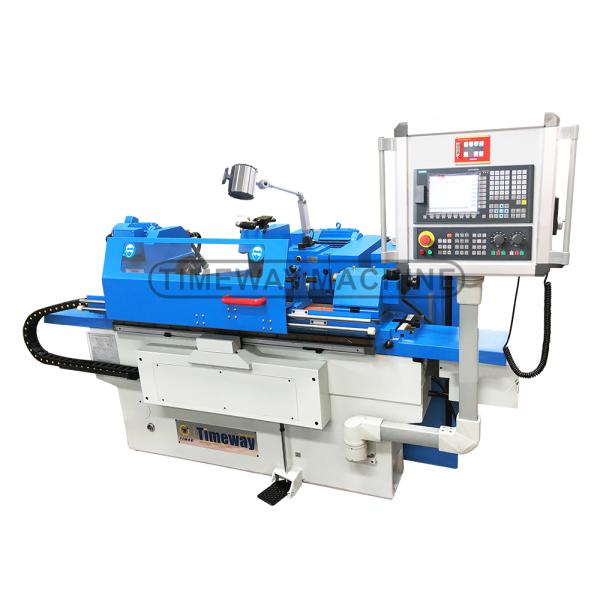

* The CNC cylindrical grinder is suitable for batch production of cylindrical parts grinding with high performance to price ratio.
* The machine standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor. Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
* With the SIEMENS CNC system programming and human-machine interface, simple and easy, and equipped with other CNC systems and configured online automatic measuring instruments for customers' choice.
* Simple and easy to operate for the grinder, after simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
* This machine has automatic shifting of the table, which can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
* CNC control system with the function of wheel dressing and compensation automatically.
* Wheelhead spindle is supported by three bushing hydro-dynamic bearing, and high precision hydro dynamic-static bearing is also available for the user.
* Timing provision of lubrication for machine moving parts according to program designing. Automatic lubrication of all moving parts. Tailstock has two ways:hydraulic and manual.
* Workhead spindle driven by variable frequency motor and frequency inverter, and programmed through M-code and S-code of CNC system for stepless speed.
* Wheelhead swivel 180° for changing outside grinding and inside grinding. Optional full-closed guard.
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
Specification
Unit
GK-200H
UGK-200H
Dia. ground (O.D)
mm
8-200
8-200
Grinding length (O.D)
mm
500/800
500/800
Center height
mm
135
135
Distance between centers
mm
550/850
550/850
Headstock center
-
MT4
MT4
Tailstock center
-
MT4
MT4
Loading capacity
kg
50
50
Grinding wheel size
mm
Ф400x50xФ203
Ф400x50xФ203
Max. peripheral speed of grinding wheel
m/s
38 (hydrodynamic-hydrostatic 45m/s)
38 (hydrodynamic-hydrostatic 45m/s)
Grinding spindle speed
rpm
2130
2130
Internal grinding spindle speed
rpm
-
16000
Dia. ground (I.D)
mm
-
13-100
X-axis min. feed unit
mm
0.001
0.001
Z-axis min. feed unit
mm
0.001
0.001
Total power
kw
10.825
10.825
Longitudinal servo motor power
kw
1.6 (6N.m)
1.6 (6N.m)
Cross servo motor power
kw
1.6 (6N.m)
1.6 (6N.m)
Roundness
um
1.5
1.5
Roughness
um
Ra0.32
Ra0.32
Unifomity of dia.in longitudinal section
um
5
5
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
· Grinding wheel,
· Grinding wheel flange,
· Three jaw chuck (UG),
· Driving dog,
·Arbor for internal grinding (UG),
· Grinding wheel dresser,
· Wheel balancing arbor,
· Open type steady rest,
· Dead centers,
· Frequency inverter,
· Coolant system,
· Work lamp,
· Leveling wedge,
· Operation manual (English edition).
· Wheel balancing stand
· Radius dresser
· Close type center rest
· Digital readout
· Paper filter
· Magnetic separator
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
Grinding spindle with segmented high- precision bearings, adjustable and low maintenance. Grinding spindle adopts oil- bath lubration and coolant (N2 oil).

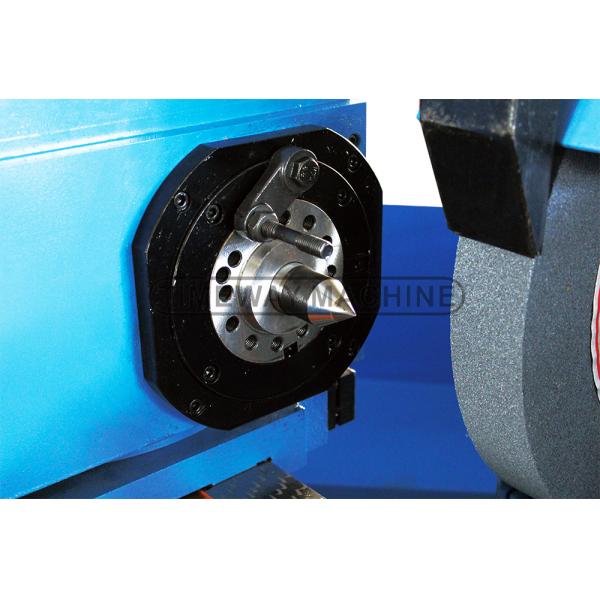

Workhead spindle speeds are infinitely variable and driven frequency motor and interver, can be easily adjusted and optimized during the machining process.
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight

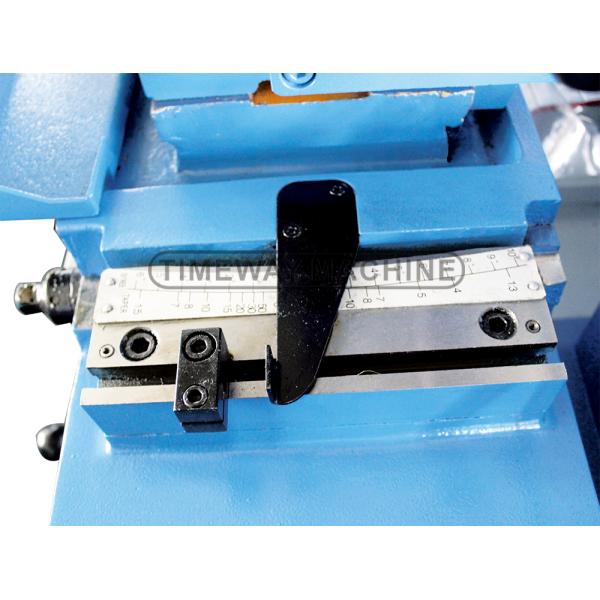

Table can swivel certain angle for grinding conical cylinder.
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight

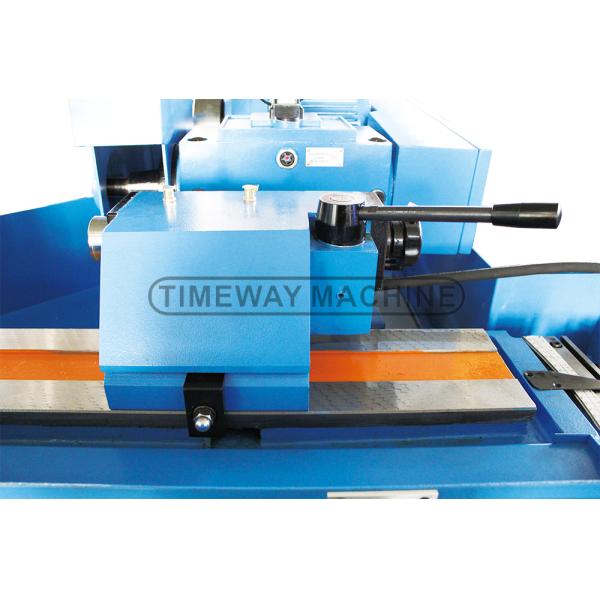

Standard tailstock can opearte either manual by handle or hydraulic control by foot pedal, sometime hand wheel on the end of tailstock can adjustable clamping force.
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight

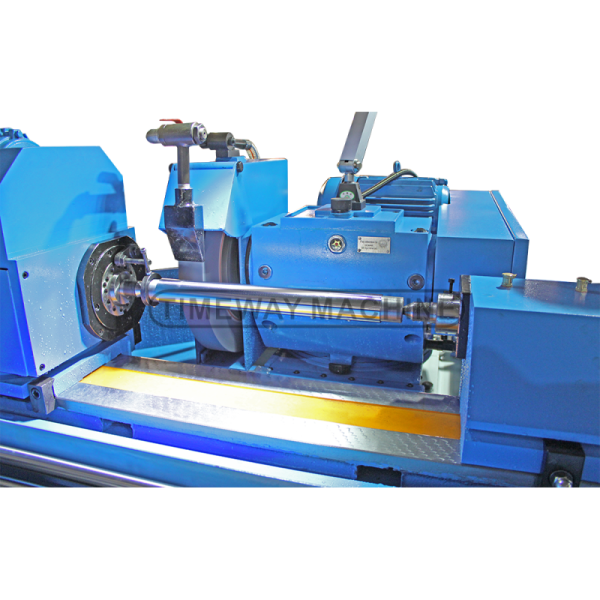

External grinding for rotating part
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight

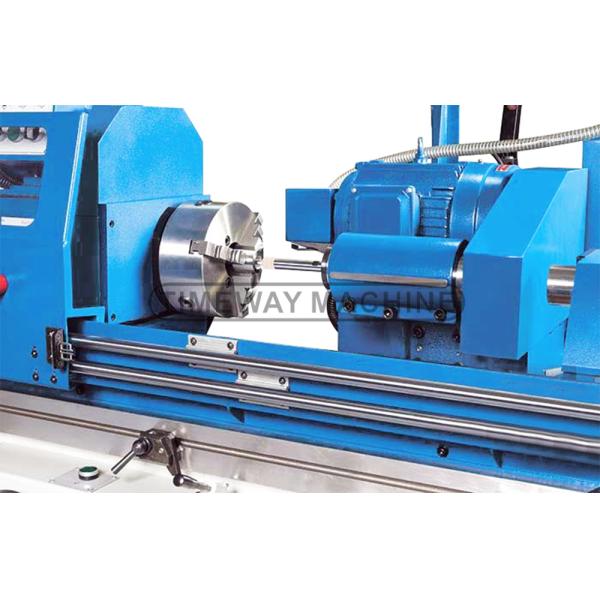

Grinding head can be rotated 180° to change from inside to outside grinding.
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight

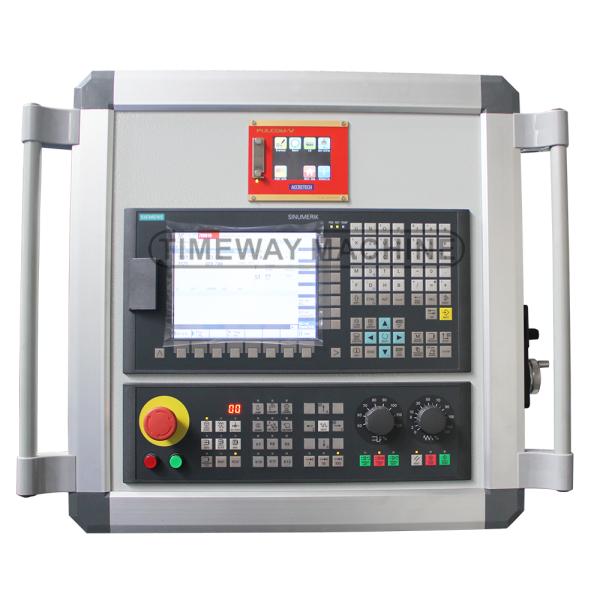

With the SIEMENS CNC system programming and human-machine interface, simple and easy, and equipped with other CNC systems and configured online automatic measuring instruments for customers'choice.
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
Why Choose Us
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
SIEMENS CNC System High Precision Grinding Machine 800mm Grinding Length 3000kg Weight
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
